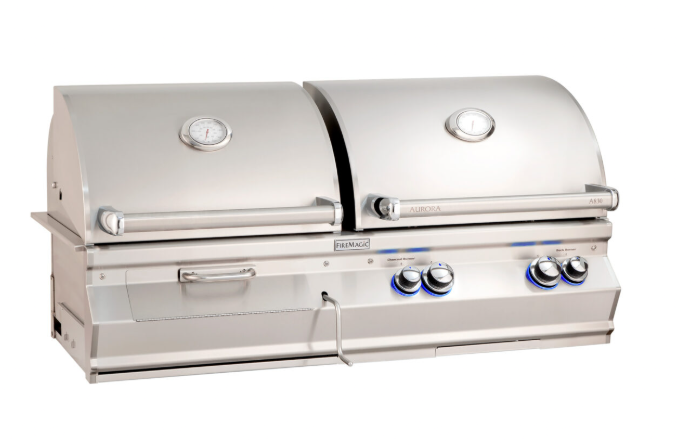

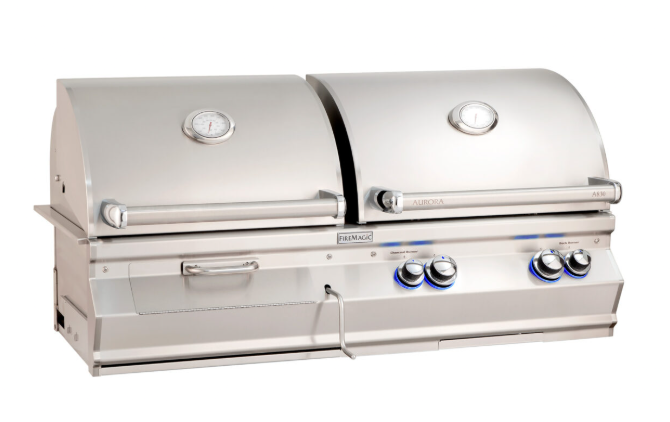

Fire Magic Aurora A830i 7-Series Built-In Gas & Charcoal Combo Grill

The Fire Magic Aurora A830i 7-Series Gas/Charcoal Combo Built-In Grill combines the convenience of gas grilling with traditional charcoal and wood-fired cooking in one premium outdoor kitchen appliance. Available with either Natural Gas or Liquid Propane on the gas side, every configuration also includes the dedicated charcoal cooking section.

The A830i provides 828 square inches of total primary cooking space. The gas section measures 24" x 18" with 432 sq. in., while the charcoal section measures 22" x 18" with 396 sq. in. A 368-sq.-in. warming rack is divided between the two cooking sections.

The charcoal section features an adjustable charcoal pan, charcoal/wood feed door, 26,000-BTU charcoal igniter, and slide-out ashtray. The adjustable pan allows the charcoal bed to be raised or lowered for more precise heat control, while the gas-assisted igniter simplifies starting charcoal without relying on lighter fluid.

This Shopify listing offers two configurations: Standard and Infrared Burner on Left Side. Both are 7 configurations, meaning neither includes the backburner or heavy-duty rotisserie kit. Fire Magic specifically describes the backburner/rotisserie system as an option on the gas side and confirms that changing 8 to 7 removes that package.

Complete Fuel & Configuration Matrix

Your setup creates 2 configurations × 2 gas fuel types = 4 Shopify variants.

Fire Magic documents N → P as the change from Natural Gas to Propane and 8 → 7 as the change to an Aurora configuration without the backburner or rotisserie kit.

Your Referenced Model Families

A830i-7EAN(P)-CB

• A830i-7EAN-CB — Natural Gas + Charcoal
• A830i-7EAP-CB — Liquid Propane + Charcoal
• Standard gas-side burner configuration
• Charcoal cooking section
• No backburner
• No rotisserie kit

A830i-7LAN(P)-CB

• A830i-7LAN-CB — Natural Gas + Charcoal
• A830i-7LAP-CB — Liquid Propane + Charcoal
• Infrared burner on left side of gas section
• Charcoal cooking section
• No backburner
• No rotisserie kit

Shopify Variant Setup

Option 1 — Fuel Type

• Natural Gas
• Liquid Propane

Option 2 — Configuration

• Standard
• Infrared Burner on Left Side

Total Shopify Variants: 4

Exact SKU Breakdown

Model Number Logic

The key identifier for this listing is 7. Fire Magic's current catalog explicitly says Aurora models without the Backburner or Rotisserie Kit use 7 instead of 8.

Key Features

• Fire Magic Aurora A830i built-in combo grill
• Gas and charcoal cooking in one built-in appliance
• Natural Gas + Charcoal or Liquid Propane + Charcoal
• Standard or left-side infrared gas-burner configuration
• 7-Series — no backburner or rotisserie kit
• 828 sq. in. total primary cooking area
• 24" x 18" gas-side cooking surface
• 432 sq. in. gas-side cooking area
• 22" x 18" charcoal-side cooking surface
• 396 sq. in. charcoal-side cooking area
• 368 sq. in. total warming area
• 50,000 BTU standard gas main-burner system
• 26,000 BTU charcoal igniter
• Heavy-duty 1/4"-thick cast 304 stainless steel gas burners
• Optional infrared burner on left side
• Diamond Sear cooking grids
• Stainless steel Flavor Grids
• Adjustable-height charcoal pan
• Charcoal/wood feed door
• Slide-out ashtray
• Double-wall 304 stainless steel hood
• Back-lit Comfort Touch control knobs
• Hot-surface ignition
• Analog thermometer
• 12V interior halogen lighting on gas side
• 110V electricity required for hot-surface ignition

Specifications

Fire Magic confirms the 828-sq.-in. total cooking area, 432-sq.-in. gas side, 396-sq.-in. charcoal side, 368-sq.-in. warming area, 50,000-BTU standard gas-burner system, 26,000-BTU charcoal igniter, and 50-1/4" x 19-1/2" x 11-1/2" cutout.

Important 7-Series Note

None of these four variants includes the Backburner or Rotisserie Kit.

That applies to:

• A830i-7EAN-CB — NG Standard
• A830i-7EAP-CB — LP Standard
• A830i-7LAN-CB — NG Left Infrared
• A830i-7LAP-CB — LP Left Infrared

Fire Magic's current catalog states that all Aurora models can be ordered without the Backburner or Rotisserie Kit by changing 8 to 7 in the model number.

Standard Configuration

A830i-7EAN-CB
Natural Gas + Charcoal + Standard Gas Burners

A830i-7EAP-CB
Liquid Propane + Charcoal + Standard Gas Burners

These versions retain the standard gas cooking system but eliminate the gas-side backburner and rotisserie package.

Infrared Burner Configuration

The 7LA variants add the infrared burner on the left side of the gas cooking section:

A830i-7LAN-CB
Natural Gas + Charcoal + Left-Side Infrared Burner

A830i-7LAP-CB
Liquid Propane + Charcoal + Left-Side Infrared Burner

Both remain 7 models, so adding the infrared burner does not add the backburner or rotisserie kit.

Charcoal Cooking System

The charcoal section includes a charcoal/wood feed door, adjustable charcoal pan, 26,000-BTU charcoal igniter, and slide-out ashtray. The crank-operated charcoal pan can be moved closer to or farther from the cooking grids to regulate heat intensity.

This section remains the same whether the gas side is ordered in the Standard or Left Infrared configuration.

Important BTU Note for Infrared Models

Fire Magic publishes 50,000 BTU for the A830i's standard gas-side main-burner system.

Because the A830i-7LAN/P-CB configuration substitutes an infrared burner for a conventional gas burner, the safest Shopify wording is:

Standard Gas Main Burner Output: 50,000 BTU
Infrared Configuration: Factory infrared burner replaces the conventional burner in the left-side position.

This avoids presenting the standard 50,000-BTU figure as the exact combined output for the infrared-equipped configuration.

Installation Dimensions

These dimensions are listed in Fire Magic's current Product Specifications Guide.

Important SKU Note

Fire Magic's live product page primarily displays the backburner-equipped parent model A830i-8EAN-CB*, while its current catalog provides the rule for deriving models without the Backburner and Rotisserie Kit: change 8 to 7.

For Shopify inventory, use the actual fuel-specific SKUs:

• A830i-7EAN-CB
• A830i-7EAP-CB
• A830i-7LAN-CB
• A830i-7LAP-CB

Do not use A830i-7EAN(P)-CB or A830i-7LAN(P)-CB as literal inventory SKUs; those are useful family shorthand for the NG/LP variants.
