Fire Magic 48-VH-7 48-Inch Outdoor Stainless Steel Vent Hood – 1200 CFM

The Fire Magic 48-VH-7 is a 48-inch outdoor power vent hood engineered specifically for high-output outdoor grilling applications. Constructed from durable brushed 304 stainless steel, it combines powerful smoke extraction with a deep 30-inch hood design to help capture smoke, heat, grease, and cooking odors in covered outdoor kitchen installations.

Its dual-blower ventilation system delivers 1,200 CFM total airflow, with two 600 CFM blowers providing high-pressure exhaust performance. The ventilation system is convertible for top or rear discharge, allowing the installation to be adapted to different outdoor kitchen layouts.

Dual under-mount halogen lights illuminate the cooking area, while a built-in thermal safety sensor automatically activates the ventilation fans when temperatures reach 140°F. Removable anodized aluminum grease filters simplify maintenance and are dishwasher safe.

Key Features

• 48-inch outdoor power vent hood
• Designed specifically for outdoor grilling environments
• Brushed 304 stainless steel construction
• 1,200 CFM total high-pressure airflow
• Dual 600 CFM blowers
• Convertible top or rear venting
• High and low fan settings
• Dual under-mount halogen lights
• 120V / 50W halogen light rating
• Thermal safety sensor
• Fans automatically activate at 140°F
• Removable anodized aluminum grease filters
• Dishwasher-safe filters
• 30-inch-deep hood for improved smoke capture
• 120VAC / 60Hz electrical supply
• 15A minimum GFCI outlet required
• 1,010-watt power consumption

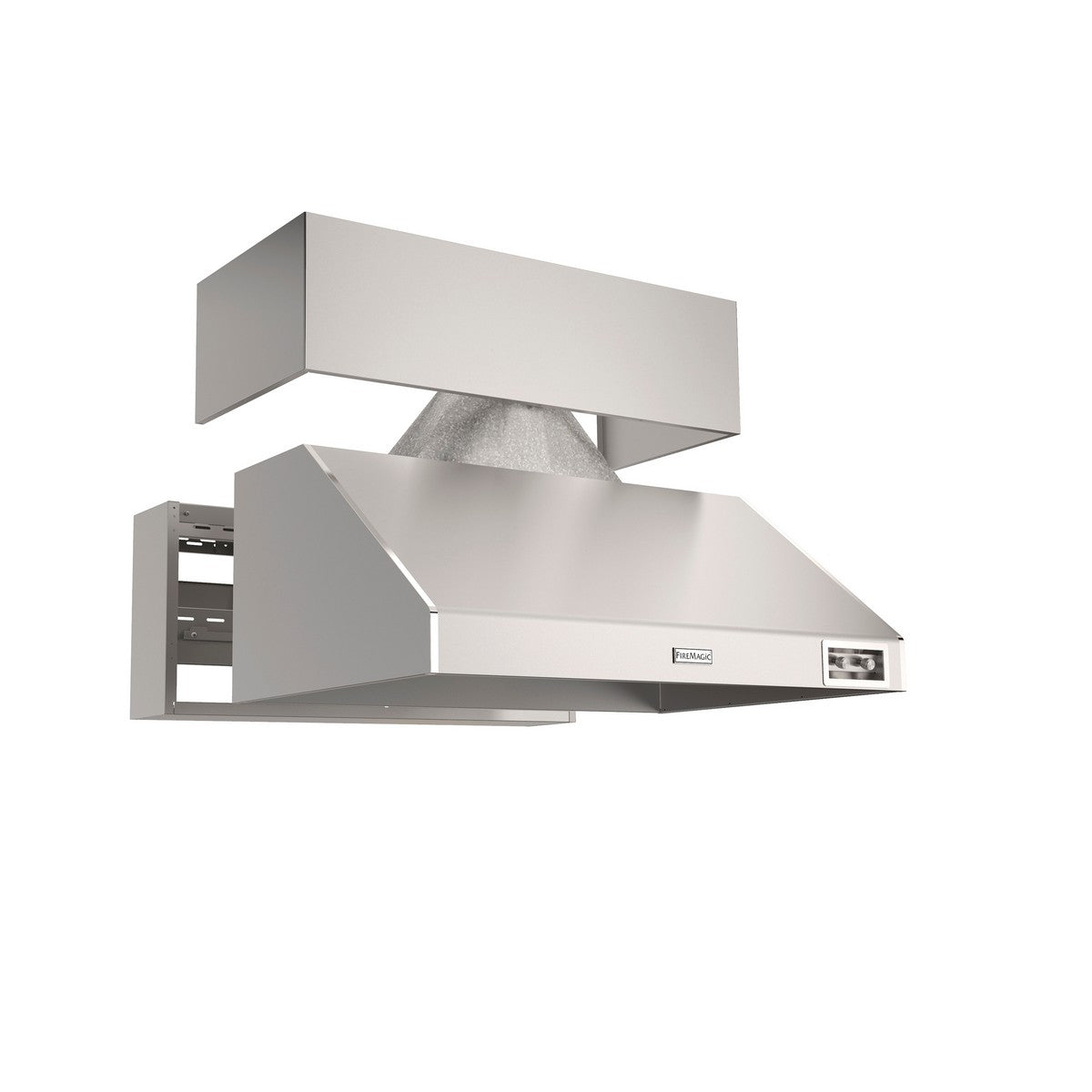

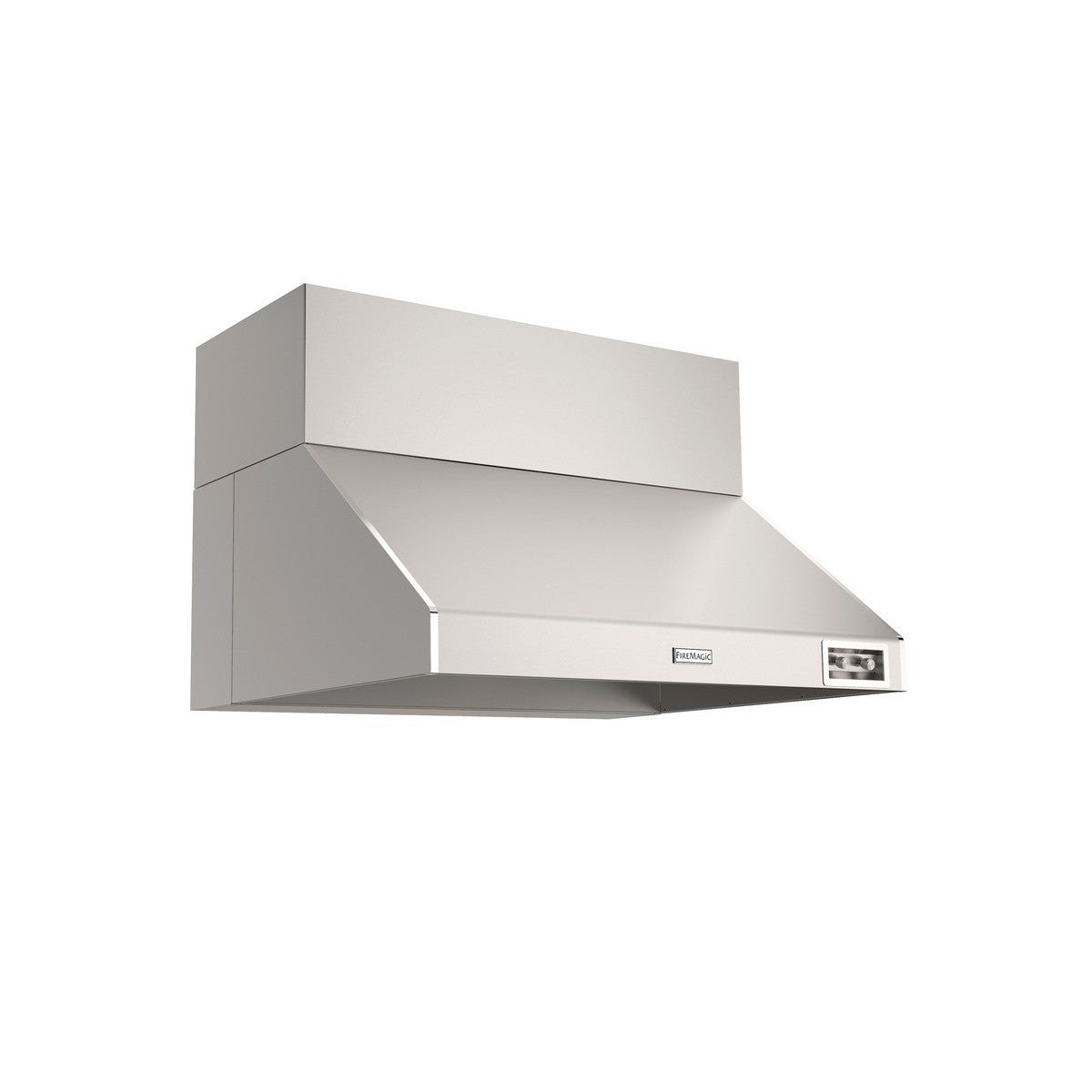

• Compatible 48-VH-7-DC duct cover available separately
• Compatible 48-VH-7-02 spacer available separately

Specifications

Current Fire Magic documentation confirms the 1,200 CFM output, 120VAC/15A minimum GFCI requirement, 1,010-watt consumption, and 50-watt halogen lighting specification.
