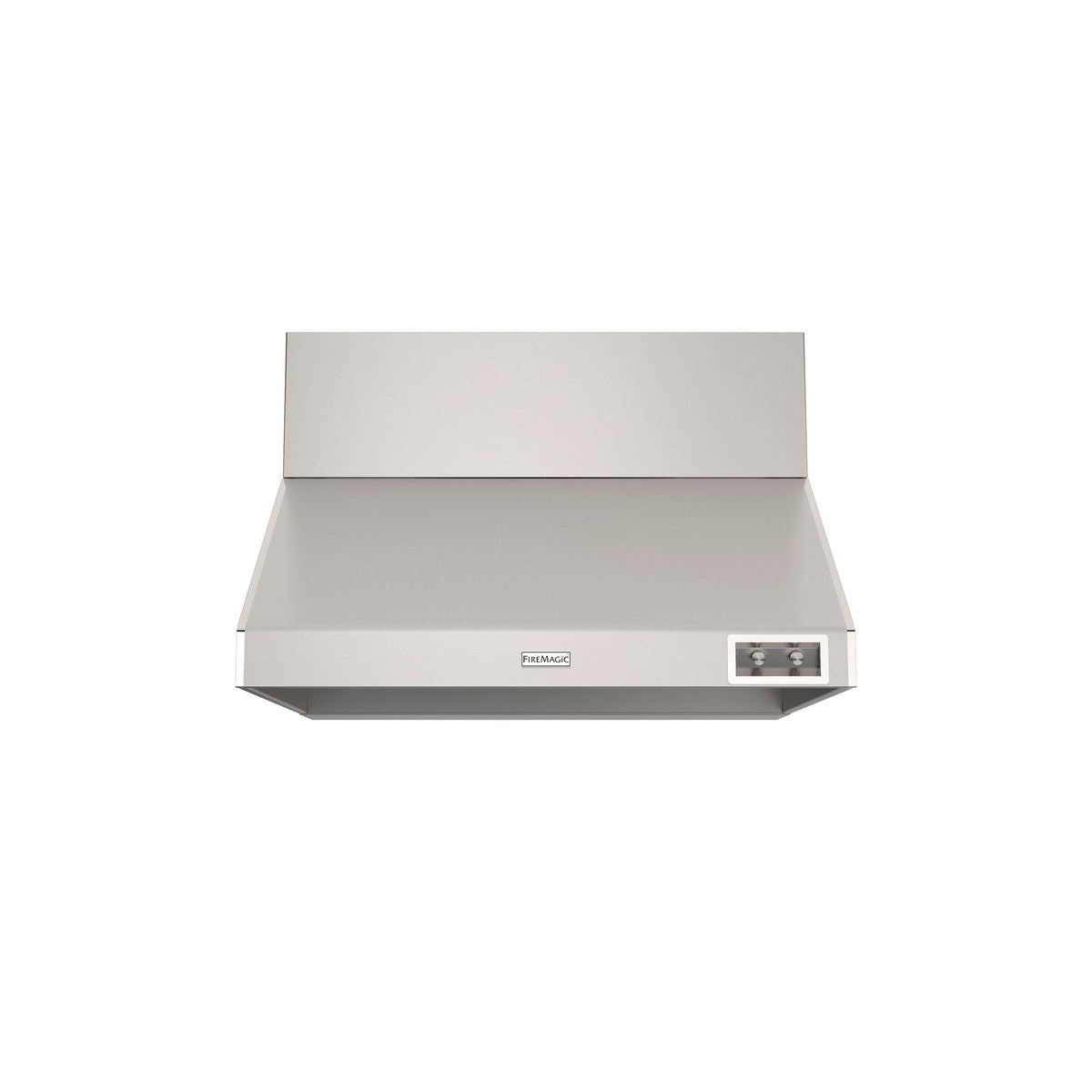

The Fire Magic Power Vent Hood System is engineered specifically for covered outdoor grilling environments, helping remove excess smoke, heat, grease, and odors from the cooking area. Available in 36", 42", 48", and 60" widths, the system can be configured with matching Fire Magic spacers and duct covers for a coordinated outdoor-kitchen ventilation installation.
Each Power Vent Hood features a powerful 1,200 CFM dual-blower system, consisting of two 600 CFM blowers. The convertible design supports either top or rear venting, providing flexibility for different outdoor-kitchen and covered-patio layouts.
Fire Magic constructs the vent hoods from brushed 304 stainless steel with seamless polished edges. Dual under-mount halogen lights illuminate the cooking area, while high/low controls allow adjustment of the fans and lighting. A thermal safety sensor automatically activates the fans when the hood reaches 140°F.
Matching spacers and duct covers are available for each hood width. Fire Magic's current specifications require the duct cover and corresponding spacer to be used together, so customers selecting a duct-cover installation should purchase both accessories in the same size as their vent hood.
Key Features
- Designed specifically for outdoor grilling environments
- 36", 42", 48", and 60" vent hood sizes
- Matching spacers available in all four sizes
- Matching duct covers available in all four sizes
- 1,200 CFM total airflow
- Two 600 CFM blowers
- Convertible top or rear venting
- Brushed 304 stainless steel hood construction
- Seamless polished edges
- Dual under-mount halogen lights
- High/low fan controls
- High/low light controls
- Thermal safety sensor
- Automatic fan activation at 140°F
- Removable anodized aluminum filters
- Dishwasher-safe filters
- All vent hoods are 30" deep
- Outdoor use only
- Wall-mount installation
- Duct covers and spacers must be used together
Vent Hood Specifications
Specification
|
Details
|
| Brand |
Fire Magic |
| Product |
Power Vent Hood |
| Available Sizes |
36" / 42" / 48" / 60" |
| Material |
Brushed 304 Stainless Steel |
| Installation |
Wall Mount |
| Use |
Outdoor Only |
| Venting |
Top or Rear |
| Blowers |
2 |
| Airflow Per Blower |
600 CFM |
| Total Airflow |
1,200 CFM |
| Hood Depth |
30" |
| Electrical |
120VAC / 60Hz |
| Minimum Circuit |
15 Amp |
| Outlet |
GFCI |
| Power Consumption |
1,010 Watts |
| Lighting |
Dual Halogen |
| Halogen Rating |
120V / 50W |
| Thermal Sensor |
Yes |
| Automatic Activation |
140°F |
| Filters |
Anodized Aluminum |
| Filter Cleaning |
Dishwasher Safe |
These specifications are common to Fire Magic's four current Power Vent Hood sizes.
Size & Accessory Compatibility
Vent Hood
|
Size
|
Matching Spacer
|
Matching Duct Cover
|
| 36-VH-7 |
36" |
36-VH-7-02 |
36-VH-7-DC |
| 42-VH-7 |
42" |
42-VH-7-02 |
42-VH-7-DC |
| 48-VH-7 |
48" |
48-VH-7-02 |
48-VH-7-DC |
| 60-VH-7 |
60" |
60-VH-7-02 |
60-VH-7-DC |
This exact hood/spacer/duct-cover mapping is listed in Fire Magic's current Product Specifications Guide.
36-Inch Configuration
Power Vent Hood: 36-VH-7
Spacer: 36-VH-7-02
Duct Cover: 36-VH-7-DC
Designed as a matching 36-inch ventilation system. If the duct cover is being installed, Fire Magic specifies that the matching spacer must also be used.

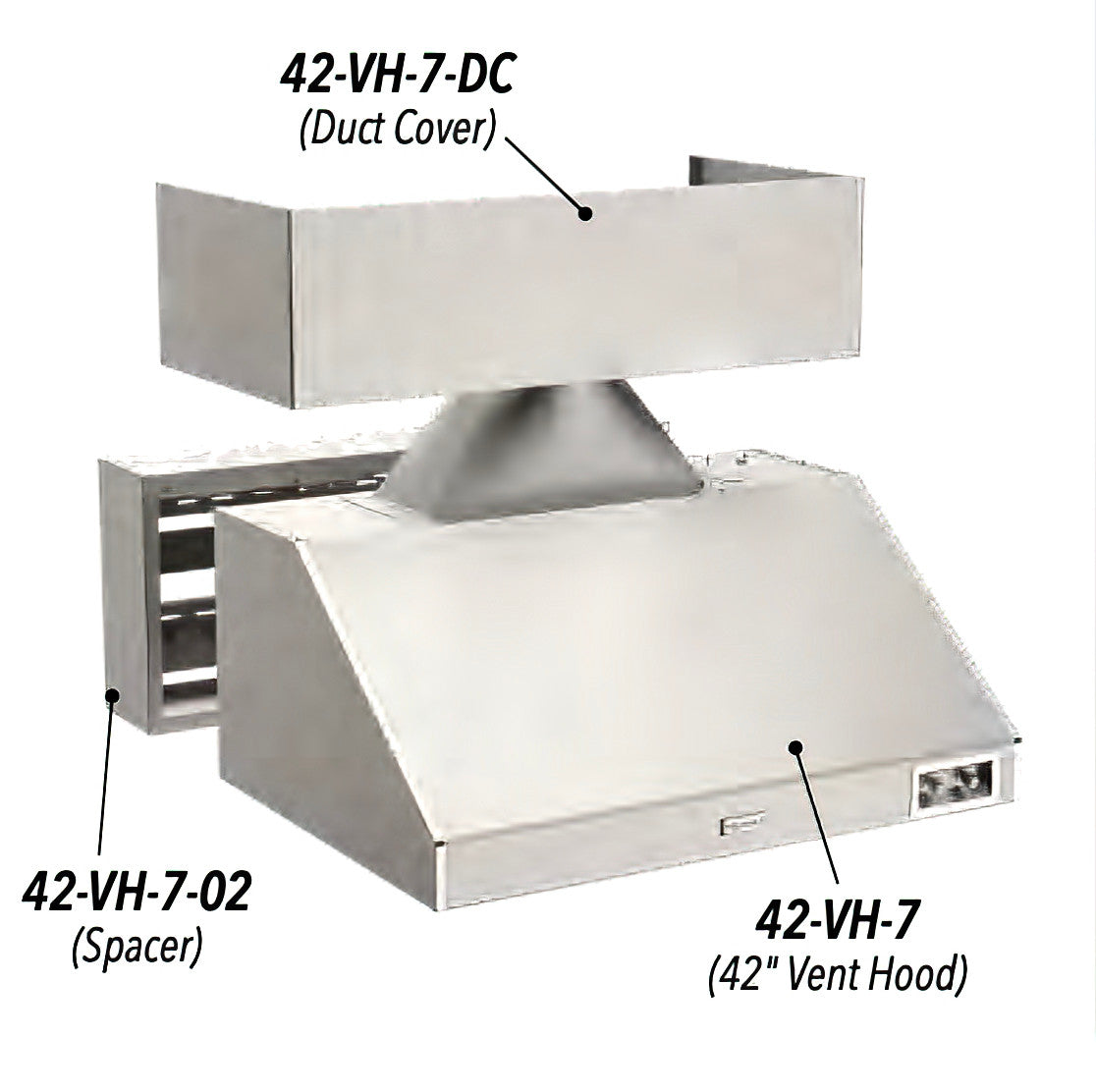

42-Inch Configuration
Power Vent Hood: 42-VH-7
Spacer: 42-VH-7-02
Duct Cover: 42-VH-7-DC
The 42-VH-7 is also the model shown on Fire Magic's current Vent Hood product page.
48-Inch Configuration
Power Vent Hood: 48-VH-7
Spacer: 48-VH-7-02
Duct Cover: 48-VH-7-DC
Provides the same 1,200 CFM ventilation platform in a wider 48-inch hood.
60-Inch Configuration
Power Vent Hood: 60-VH-7
Spacer: 60-VH-7-02
Duct Cover: 60-VH-7-DC
The 60-inch version is the widest Power Vent Hood in this Fire Magic series while retaining the same 1,200 CFM dual-blower specification.
Important Accessory Note

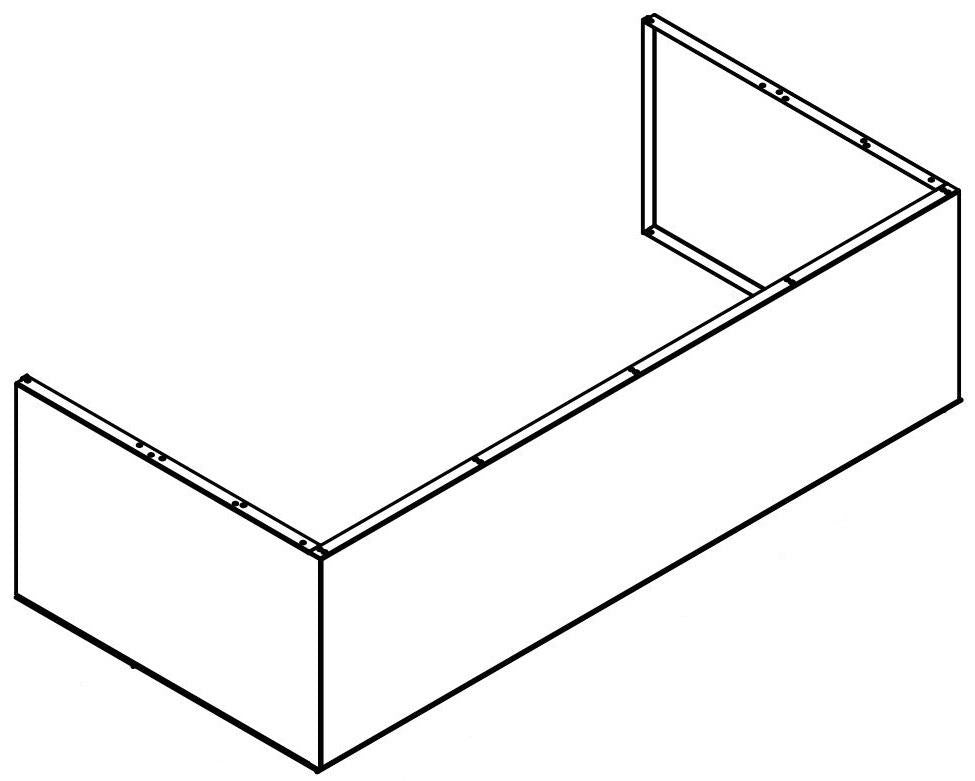

The spacer and duct cover are separate accessories from the Power Vent Hood.
Fire Magic specifically states:
Duct Covers and Spacers must be used together.
Therefore, a customer purchasing a duct cover should select the corresponding spacer:
- 36-VH-7-DC → 36-VH-7-02
- 42-VH-7-DC → 42-VH-7-02
- 48-VH-7-DC → 48-VH-7-02
- 60-VH-7-DC → 60-VH-7-02
Important Installation Note
Fire Magic states that its Power Vent Hoods are for outdoor use only and must be wall mounted. The manufacturer's installation instructions should be followed for ducting, electrical requirements, mounting clearances, and installation above the cooking appliance.
