Fire Magic Aurora A830i Gas & Charcoal Combo Built-In Grill with Backburner & Rotisserie Kit

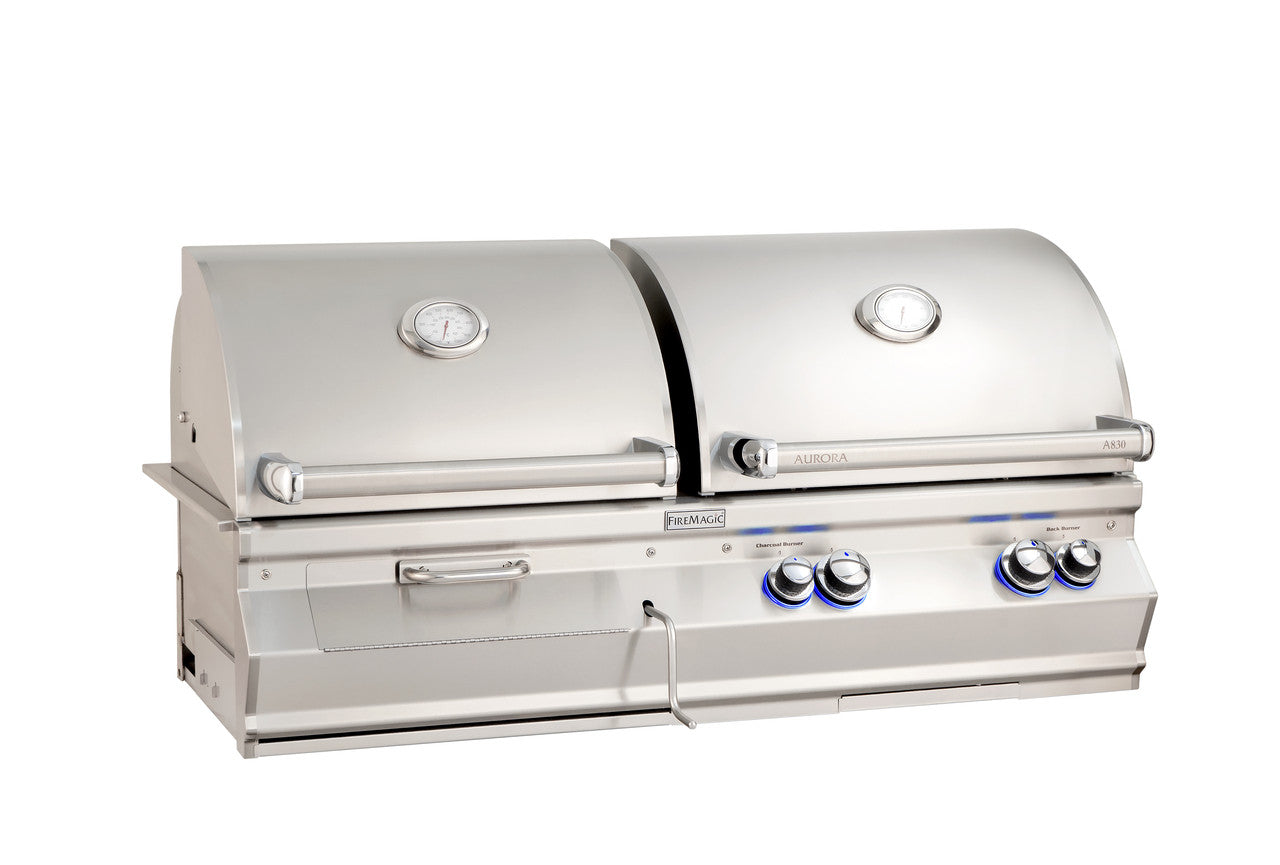

The Fire Magic Aurora A830i Gas & Charcoal Combo Built-In Grill combines two outdoor cooking methods in one premium stainless steel appliance. The gas side delivers the performance and convenience of an Aurora gas grill, while the charcoal side provides traditional charcoal and wood-fired cooking with an adjustable charcoal pan, charcoal/wood feed door, and slide-out ashtray.

The A830i provides 828 square inches of primary cooking space, divided between a 24" x 18" gas-side cooking surface with 432 sq. in. and a 22" x 18" charcoal-side surface with 396 sq. in. An additional 368-square-inch warming rack is divided between the gas and charcoal sections.

The gas side uses Fire Magic's heavy-duty cast 304 stainless steel burners and is rated at 50,000 BTU in its standard burner configuration. The charcoal side includes a 26,000-BTU gas charcoal igniter, allowing charcoal to be started without lighter fluid. Its crank-adjustable charcoal pan lets the user raise or lower the fuel bed for greater control over cooking heat.

This Shopify listing includes the 8-Series Backburner & Rotisserie Kit configurations, with either the standard gas-side burner setup or an optional infrared burner on the left side. Fire Magic's current catalog confirms that 8 models carry the backburner/rotisserie configuration, while changing 8 to 7 removes that package.

Complete Fuel & Configuration Matrix

Your requested setup creates 2 configurations × 2 gas fuel types = 4 Shopify variants.

Fire Magic's current catalog states that its models are available in Natural Gas or Propane by changing N to P, and specifically identifies the A830i family as A830i-8EAN*-CB.

Your Referenced Model Families

A830i-8EAN(P)-CB

• A830i-8EAN-CB — Natural Gas + Charcoal
• A830i-8EAP-CB — Liquid Propane + Charcoal
• Standard gas-side main burners
• Backburner included
• Rotisserie kit included
• Charcoal cooking section included

A830i-8LAN(P)-CB

• A830i-8LAN-CB — Natural Gas + Charcoal
• A830i-8LAP-CB — Liquid Propane + Charcoal
• Infrared burner on left side of gas section
• Backburner included
• Rotisserie kit included
• Charcoal cooking section included

Shopify Variant Setup

Option 1 — Fuel Type

• Natural Gas
• Liquid Propane

Option 2 — Configuration

• Backburner & Rotisserie Kit
• Backburner & Rotisserie Kit + Infrared Burner on Left Side

Total Shopify Variants: 4

Exact SKU Breakdown

Model Number Logic

Fire Magic explicitly states that changing N to P specifies propane and changing 8 to 7 removes the Backburner and Rotisserie Kit.

Key Features

• Premium Fire Magic Aurora gas and charcoal combo grill
• Built-in outdoor kitchen configuration
• Natural Gas + Charcoal or Liquid Propane + Charcoal
• Backburner & Rotisserie Kit included on requested configurations
• Optional infrared burner on left side of gas section
• 828 sq. in. total primary cooking area
• 24" x 18" gas-side cooking surface
• 432 sq. in. gas-side primary cooking area
• 22" x 18" charcoal-side cooking surface
• 396 sq. in. charcoal-side primary cooking area
• 368 sq. in. total warming-rack area
• 50,000 BTU standard gas main-burner system
• 26,000 BTU charcoal igniter
• Heavy-duty 1/4"-thick cast 304 stainless steel gas burners
• Diamond Sear cooking grids
• Stainless steel Flavor Grids
• Adjustable-height charcoal pan
• Charcoal/wood feed door
• Slide-out ashtray
• Double-wall 304 stainless steel hood
• Back-lit Comfort Touch control knobs
• Hot-surface gas ignition
• 12V interior halogen lighting
• Analog thermometer
• 110V electrical requirement for hot-surface ignition

Specifications

Fire Magic's live A830i page confirms the 828-sq.-in. total primary area, 432-sq.-in. gas section, 396-sq.-in. charcoal section, 368-sq.-in. warming area, 50,000-BTU main burners, 26,000-BTU charcoal igniter, and 50-1/4" x 19-1/2" x 11-1/2" cutout.

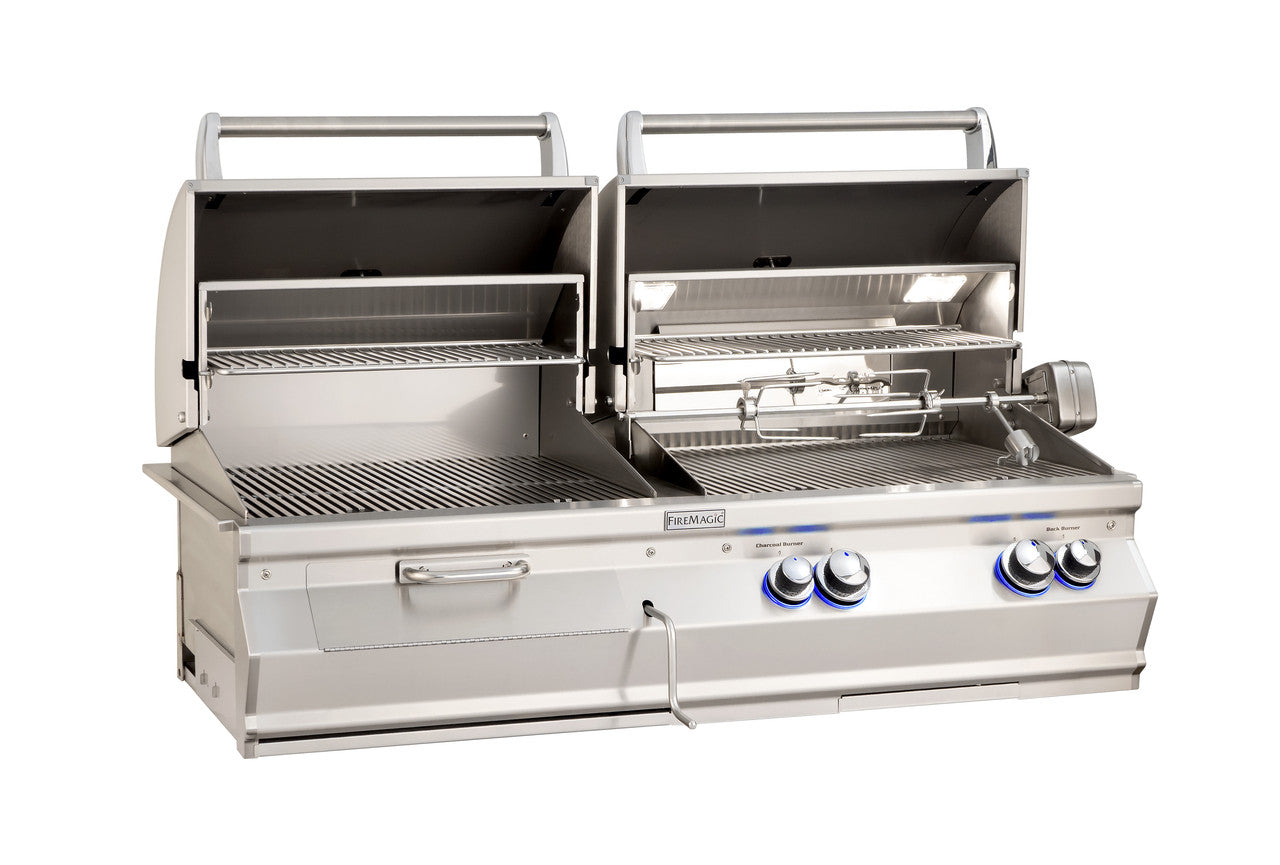

Backburner & Rotisserie Kit

Both requested configurations are 8-Series variants, so the Shopify options should be structured around the Backburner & Rotisserie Kit:

A830i-8EAN / A830i-8EAP-CB
= Standard Gas Burners + Backburner & Rotisserie + Charcoal Grill

A830i-8LAN / A830i-8LAP-CB
= Left Infrared Burner + Backburner & Rotisserie + Charcoal Grill

Fire Magic notes that the halogen lights and backburner are located on the gas side only.

Charcoal Cooking System

The charcoal side is not simply a passive charcoal tray. Fire Magic equips the A830i with a dedicated charcoal/wood feed door, adjustable charcoal pan, 26,000-BTU charcoal igniter, and slide-out ashtray. The crank-operated charcoal pan can be raised or lowered to control the distance between the fuel and cooking grids.

This makes the A830i suitable for customers who want both convenient gas grilling and traditional charcoal or wood-fired cooking without installing two separate built-in grills.

Infrared Burner Configuration

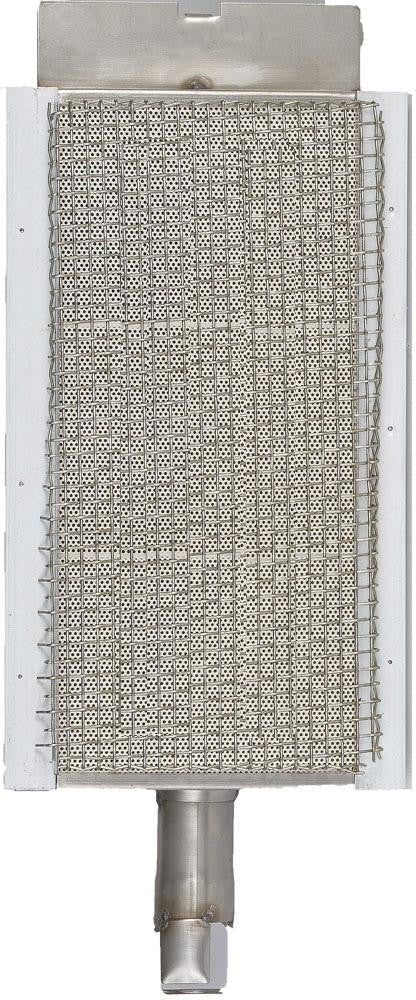

The 8LA variants add the factory infrared burner on the left side of the gas section.

For Shopify:

A830i-8LAN-CB
Natural Gas + Charcoal + Backburner & Rotisserie + Left Infrared Burner

A830i-8LAP-CB
Liquid Propane + Charcoal + Backburner & Rotisserie + Left Infrared Burner

Because Fire Magic's published 50,000-BTU main-burner rating describes the standard gas-side burner system, I would not present 50,000 BTU as the exact combined main-burner output of the 8LA infrared versions unless a configuration-specific manufacturer rating is available.

Important Backburner BTU Note

There is a current Fire Magic source discrepancy:

• Current Fire Magic catalog: 11,000 BTU backburner.
• Current live A830i product page: 13,000 BTU backburner.

For Shopify, the safest specification is simply:

Backburner: Recessed Infrared Backburner — Included

If an exact BTU value is required, 11,000 BTU is the value in Fire Magic's current catalog, but the discrepancy should be retained internally for verification against the exact production model.

Installation Dimensions

These dimensions are listed in Fire Magic's current Product Specifications Guide.
