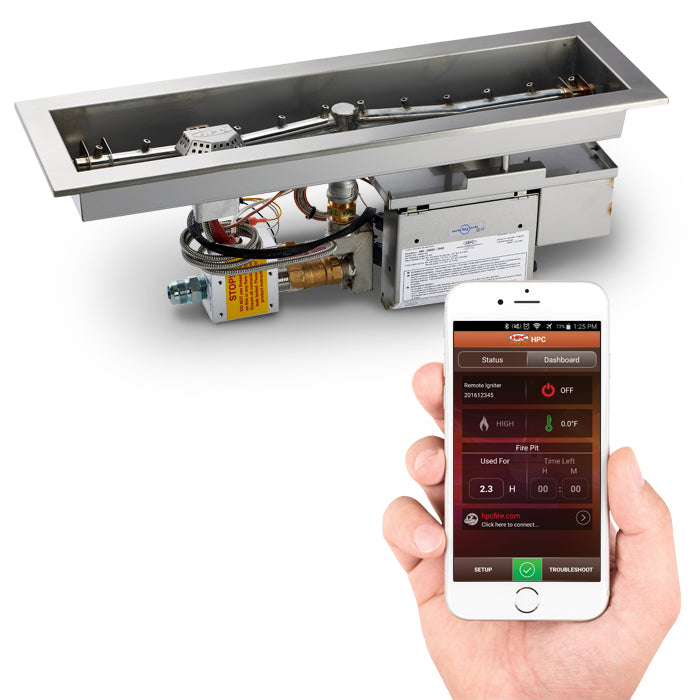

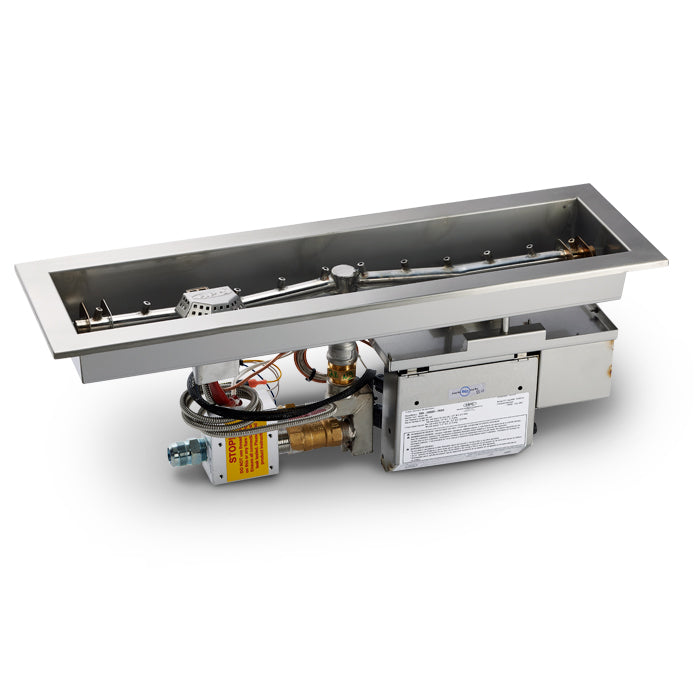

The HPC Fire 25" x 8" Linear Interlink Pan Insert with Electronic On/Off Ignition is a professional-grade burner system designed for custom outdoor fire features. This configuration uses a 25-inch by 8-inch interlink pan, a torpedo burner, and electronic flame sensing with hot surface ignition, making it a strong fit for narrow linear fire pit designs that need reliable ignition and a clean flame presentation. HPC identifies the series as CSA certified, outdoor use only, and suitable for commercial and residential use.
Constructed from 304 stainless steel, this insert is built for outdoor durability and corrosion resistance. The interlink drawing confirms the material and the available power and ignition combinations for this EI linear series.
This series uses electronic On/Off ignition. HPC’s On/Off manual states that a wall switch is required for safety shutoff, with optional remote control, timer, or whole-house integration, and that installation and service should be handled by a qualified installer, service agency, or gas supplier.
These variants are available in both Natural Gas and Liquid Propane. HPC lists Natural Gas supply pressure at 3.5" to 7.0" W.C. and LP supply pressure at 8.0" to 11.0" W.C. The manual also states that the EI Series must use permanent fixed piping and is not for use with small LP tanks.
For power, HPC specifies 120 VAC – 1 amp for 120VAC models. For 24VAC models, HPC requires a Class II 24VAC, 4-amp, 100W transformer and notes that performance can be affected if the power supply is below 100W or the wire size is too small. HPC also says all electronic applications should use a GFCI-protected circuit.
Available Variants in This Set
25" x 8" — Electronic On/Off — Torpedo — Liquid Propane — 120VAC
25" x 8" — Electronic On/Off — Torpedo — Liquid Propane — 24VAC
25" x 8" — Electronic On/Off — Torpedo — Natural Gas — 120VAC
25" x 8" — Electronic On/Off — Torpedo — Natural Gas — 24VAC
Key Specifications
Series: HPC Fire CSA Certified Linear Interlink Pan Insert
Insert Size: 25" x 8"
Burner Type: Torpedo Burner
Ignition Style: Electronic Ignition / On-Off Control
Fuel Options: Natural Gas (NG) or Liquid Propane (LP)
Power Options: 120VAC or 24VAC
Material: 304 Stainless Steel
Heat Output: 75,000 BTU
Depth Dimension: 7-3/4"
Certification: CSA Certified, Outdoor Use Only
