HPC Fire 61" x 8" Linear Interlink Pan Insert with Electronic On/Off Ignition, Torpedo Burner LP/NG

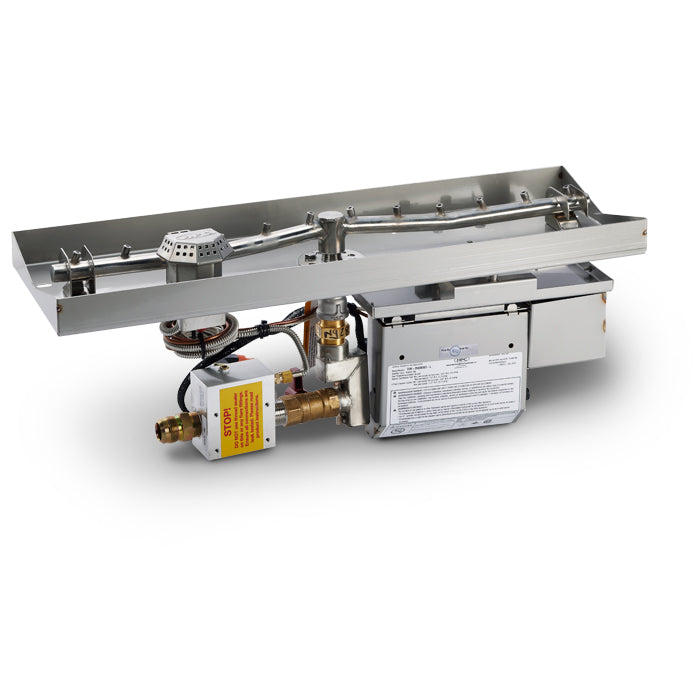

The HPC Fire 61" x 8" Linear Interlink Pan Insert with Electronic On/Off Ignition is a professional-grade burner system for custom outdoor fire features. It uses a 61" x 8" interlink pan, torpedo burner, and electronic flame sensing with hot surface ignition for reliable startup and a clean linear flame presentation. HPC identifies the EI Linear Interlink series as CSA certified, for outdoor use only, and suitable for commercial and residential use.

Constructed from 304 stainless steel, this insert is built for outdoor durability and corrosion resistance. HPC’s EI Linear Interlink drawing lists the 61" x 8" model at 175,000 BTU with a 7-3/4" depth dimension. The On/Off manual states that a wall switch is required for safety shutoff, with optional remote control (#578-C), automatic shutoff timer, or whole house system. For this exact configuration, the fuel type is liquid propane with 8.0" to 11.0" W.C. supply pressure, the power requirement is 120 VAC, the EI series must use permanent fixed piping, is not for use with small LP tanks, and electronic applications should use a GFCI-protected circuit.

Available Variant in This Listing
61" x 8" — Electronic On/Off — Torpedo — Liquid Propane

Key Specifications
Series: HPC Fire CSA Certified Linear Interlink Pan Insert
Insert Size: 61" x 8"
Burner Type: Torpedo Burner
Ignition Style: Electronic Ignition / On-Off Control
Fuel Type: Liquid Propane (LP)
Power Option: 120VAC
Material: 304 Stainless Steel
Heat Output: 175,000 BTU
Depth Dimension: 7-3/4"
Certification: CSA Certified, Outdoor Use Only
Use: Commercial and Residential Use.
