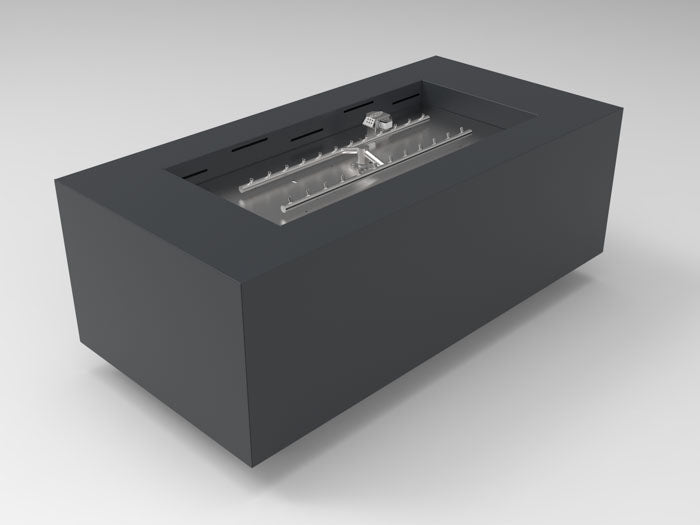

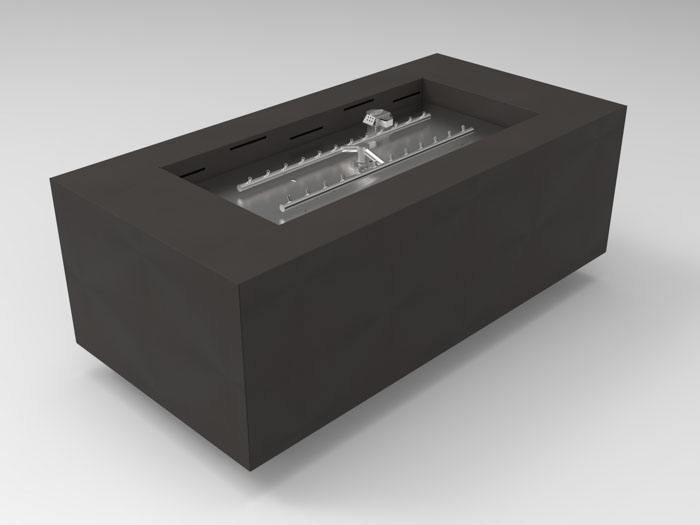

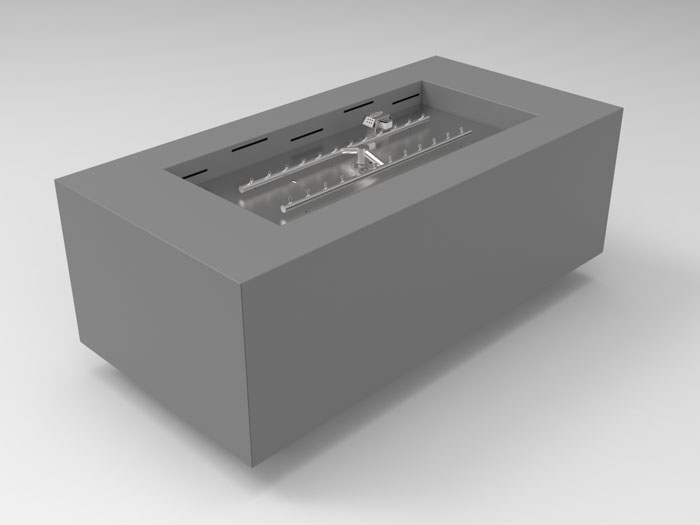

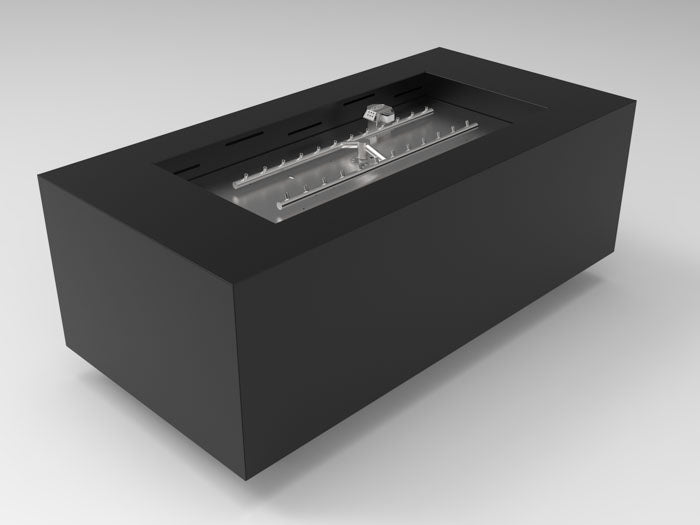

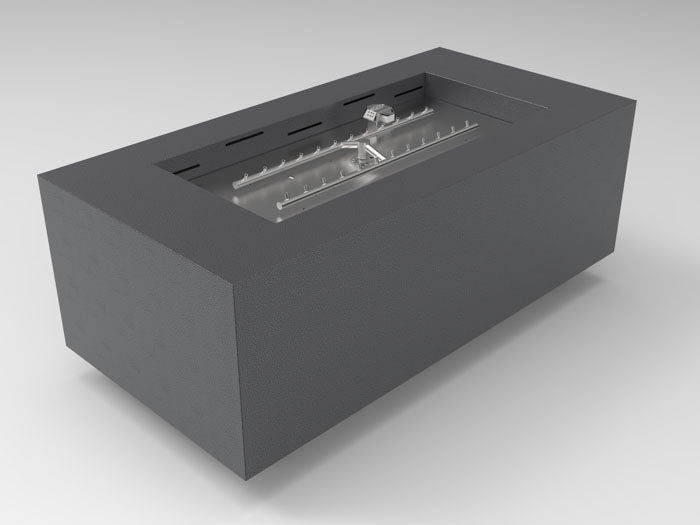

HPC Fire Tejas 48" x 24" Assembled Metal Fire Pit Enclosure, Torpedo Burner, HI/LO

The HPC Fire Tejas 48" x 24" Assembled Metal Fire Pit Enclosure is a fully assembled outdoor fire feature designed for patio and commercial or residential fire pit installations. Your selected configuration is the Tejas style in 48" x 24", finished in Black, with a Torpedo burner, Electronic Ignition (HI/LO) 120V, and Liquid Propane fuel type. HPC’s Tejas drawing states EI models include the enclosure, fully assembled insert, input flex line, remote (Hi/Lo units only), and instructions, and that the fire pit insert is CSA certified for outdoor use only and for commercial and residential use.

HPC’s Tejas drawing states the enclosure is made from .060 mild steel sheet with a powder-coated finish and weighs 150 lbs. The same drawing lists the TOR-TEJ48X24-EI-HI/LO model at 150,000 BTU, with 120 VAC or 24 VAC power, using burner TOR-HBSB24; it also gives the enclosure dimensions as 48" overall length, 33" opening, 24" width, 15" opening width, 18" height, and 16" base width. HPC’s Hi/Lo control instructions state that wall-switch use is required for safety shutoff, Bluetooth control works with the supplied remote or a smartphone or tablet, LP supply pressure must be 8.0" to 11.0" W.C., the EI series must use permanent fixed piping and is not for use with small LP tanks, and 120 VAC applications should use a GFCI-protected circuit.

Key Specifications
Series: HPC Fire Assembled Metal Fire Pit Enclosures.
Style: Tejas.
Enclosure Size: 48" x 24".
Burner Style: Torpedo.
Ignition Style: Electronic Ignition / High-Low Control.
Fuel Type: Liquid Propane (LP) / Natural Gas (NG)
Power Option: 120V /24V
Construction Material: .060 Mild Steel Sheet.
Finish Type: Powder Coated.
Weight: 150 lbs.
Heat Output: 150,000 BTU.
Burner Model: TOR-HBSB24.
Outdoor Rating: CSA Certified, Outdoor Use Only.
Use: Commercial and Residential Use.
