HPC Fire Tejas 48" x 24" Assembled Metal Fire Pit Enclosure, Torpedo Burner, Push Button / Flame Sensing Ignition

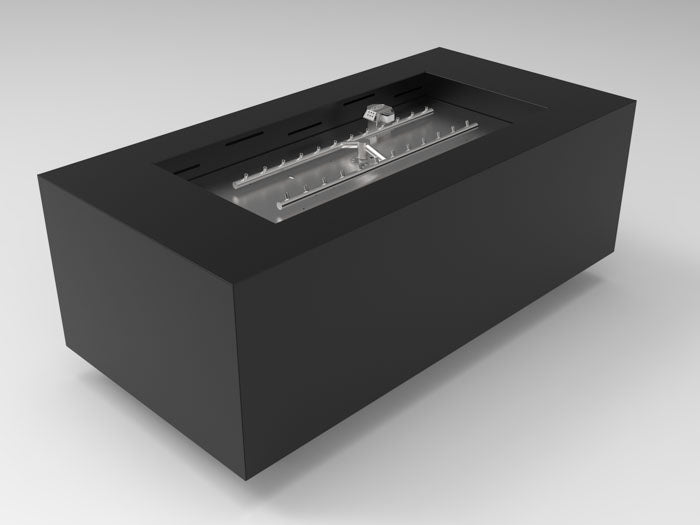

The HPC Fire Tejas 48" x 24" Assembled Metal Fire Pit Enclosure is a fully assembled outdoor fire feature designed for patio and commercial or residential fire pit installations. Your selected configuration is the Tejas style in 48" x 24", finished in Black, with a Torpedo burner, Push Button / Flame Sensing ignition, and Liquid Propane fuel type. HPC’s Tejas enclosure drawing lists this exact FPPK torpedo configuration as TOR-TEJ48X24-FPPK, and the PBFS manual identifies the system as an outdoor fire pit insert with push-button ignition and flame sensing.

HPC’s Tejas drawing states the enclosure is made from .060 mild steel sheet with a powder-coated finish and weighs 150 lbs. The same drawing lists the TOR-TEJ48X24-FPPK model at 150,000 BTU, powered by AA battery, using burner TOR-HBSB24; it also gives the enclosure dimensions as 48" overall length, 33" opening length, 24" width, 15" opening width, 18" height, and 16" base width. The PBFS manual states the system is for outdoor use only, for commercial or residential settings, requires a permanent fuel supply plumbed by a certified installer for standard installations, and requires a minimum of 2 vents of 18 sq. in. each on opposing sides for enclosures up to 200,000 BTU.

Key Specifications
Series: HPC Fire Assembled Metal Fire Pit Enclosures
Style: Tejas
Enclosure Size: 48" x 24"
Burner Style: Torpedo
Ignition Style: Push Button / Flame Sensing
Fuel Type: Liquid Propane (LP) / Natural Gas (NG)
Power Requirement: AA Battery
Construction Material: .060 Mild Steel Sheet
Finish Type: Powder Coated
Weight: 150 lbs
Heat Output: 150,000 BTU
Burner Model: TOR-HBSB24
Outdoor Rating: Outdoor Use Only
Use: Commercial and Residential Use.
