Replacement part kit for Fire by Design AWEIS-All Weather Electronic Ignition System

Field Serviceable AWEIS Replacement Parts

Historically speaking there are 3 parts on the AWEIS that might need to be replaced over time. The Hot Surface Igniter (Glow Plug) which is located in the Pilot Burner Assembly used to be the part that would fail most often. With the introduction of the “Commercial Grade” Pilot Burner Igniter failures are not as common as they used to be. The next part most often to fail (due to high heat in the feature) was the Controller which is located inside the AWEIS Ignition Control Box. And the part least likely to fail is the Thermal Sensor which is located in the Pilot Burner Assembly. The new “Field Serviceable” AWEIS makes it possible to replace all 3 of these parts with minimal effort.

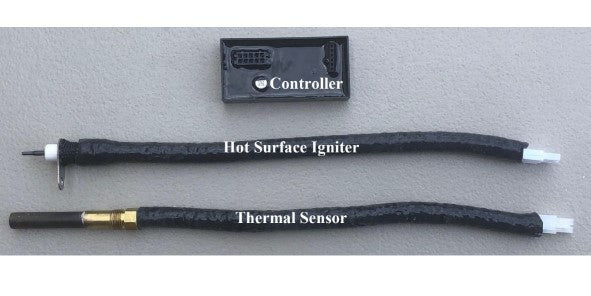

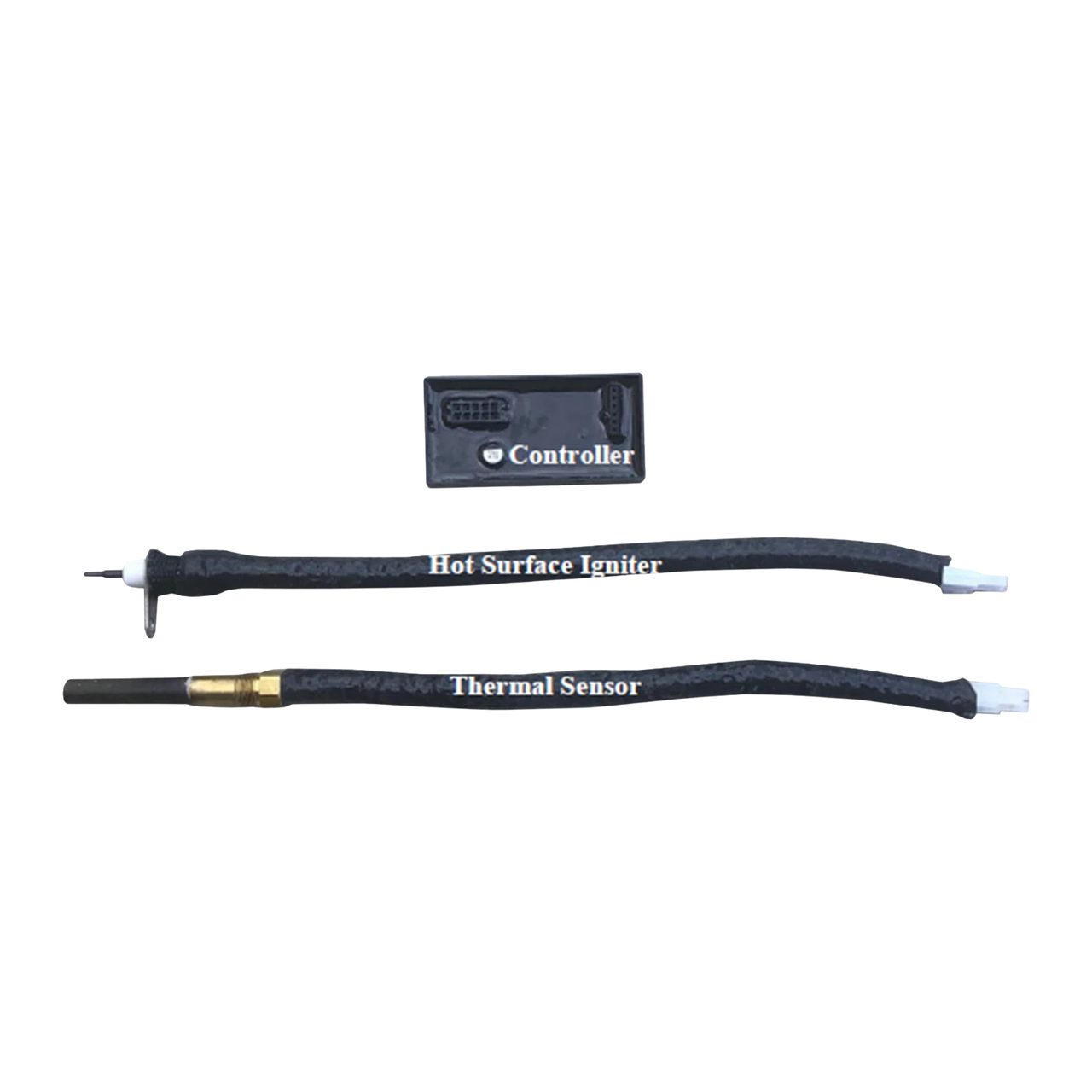

Kit includes

• 1 controller
• 1 Hot Surface Igniter
• 1 Thermal Sensor
