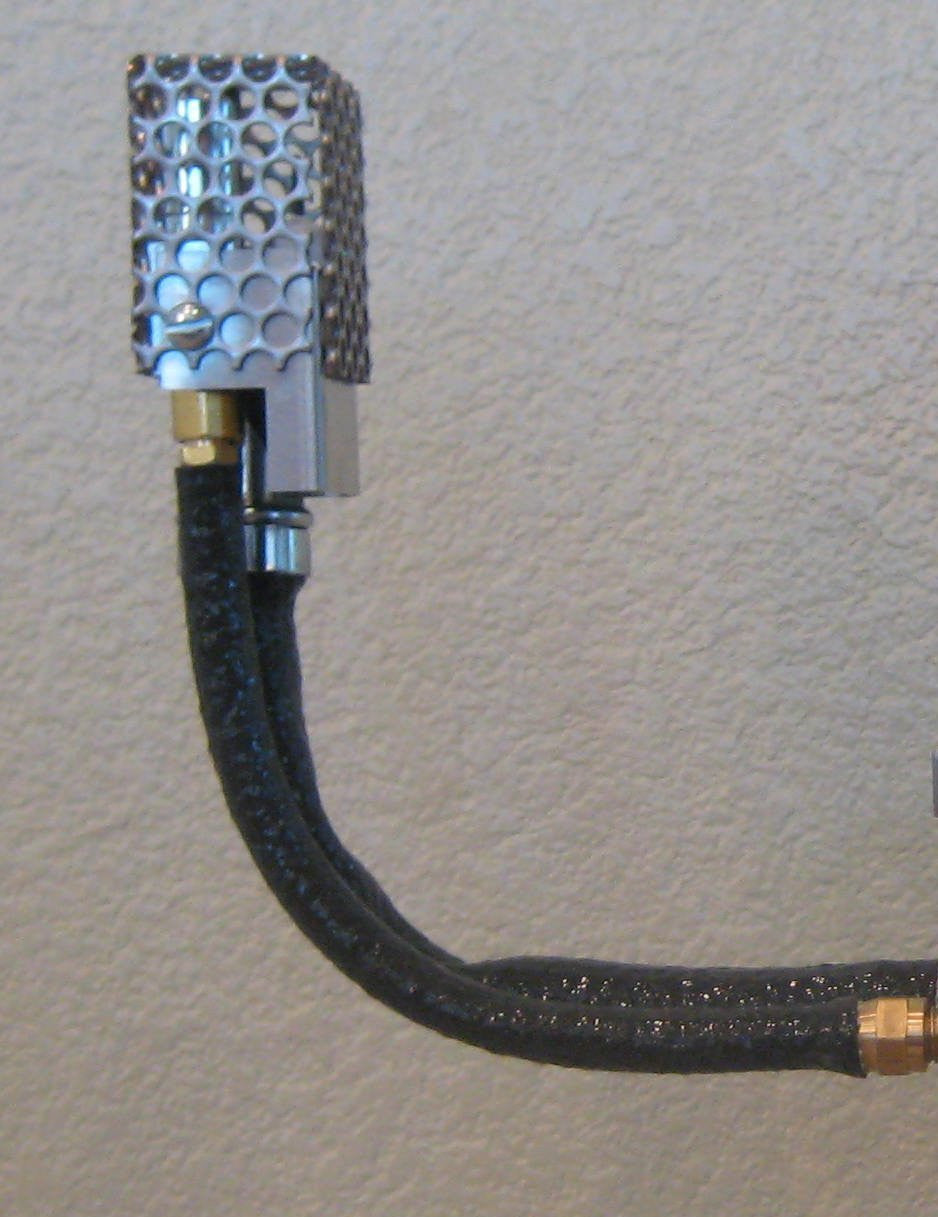

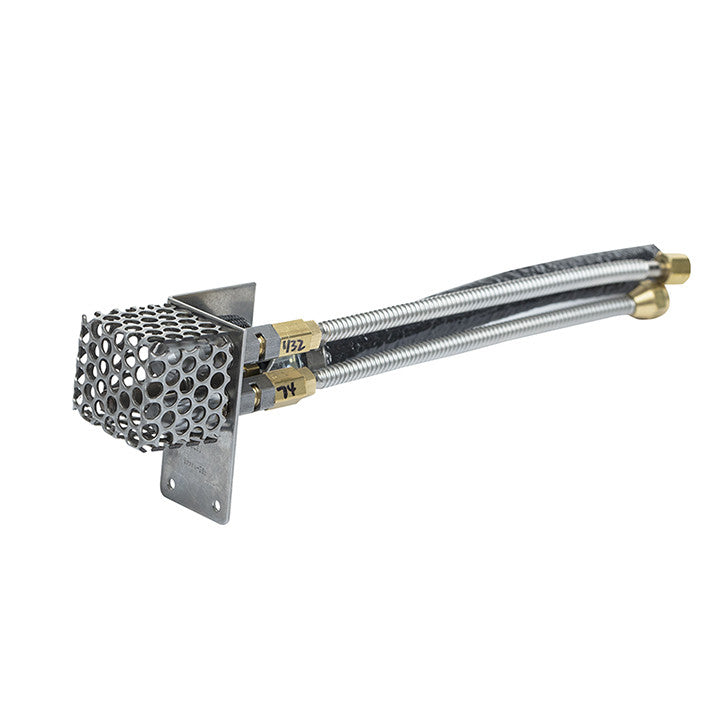

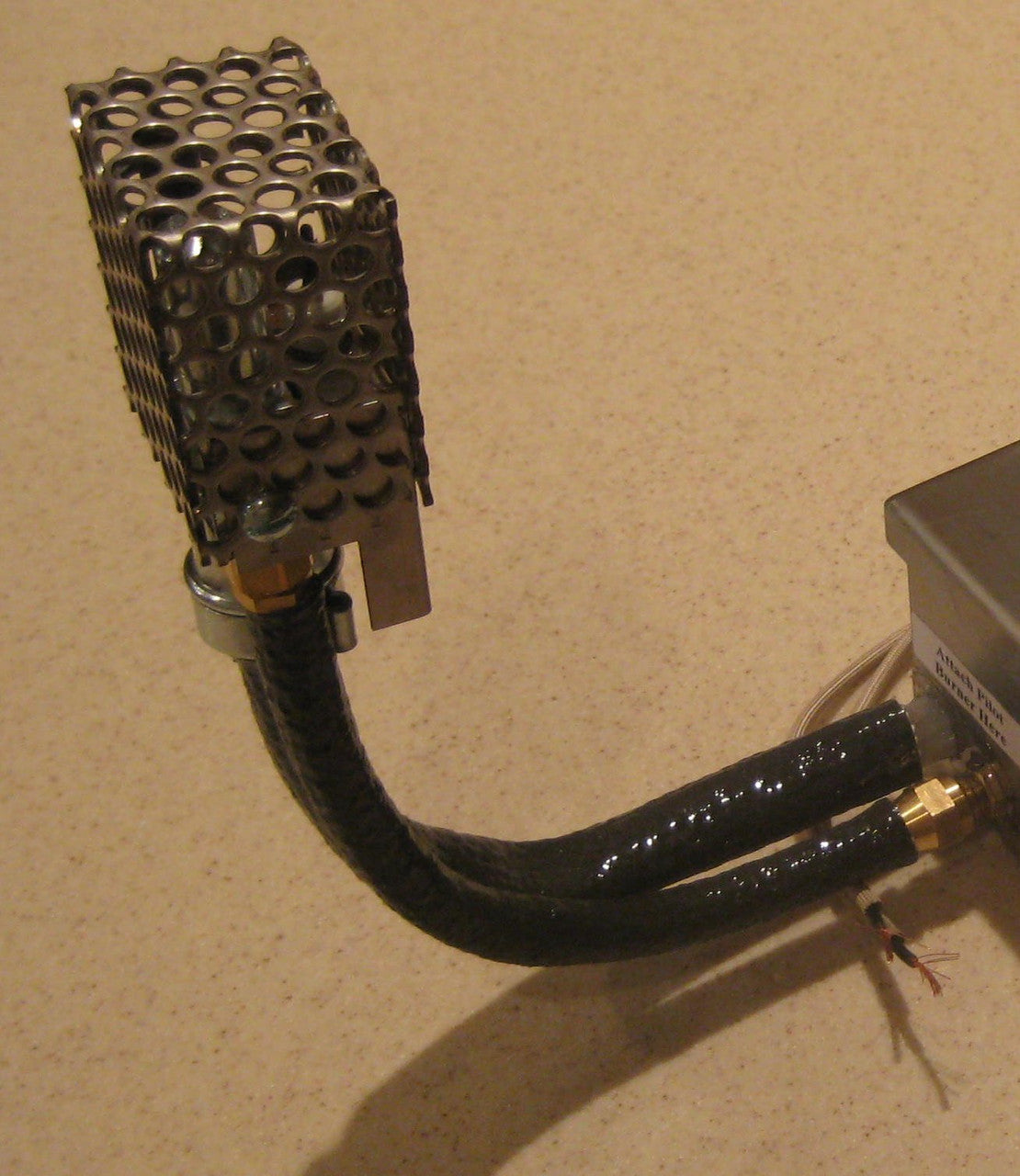

Residential 24VAC Pilot Burner Assembly - 1 Gas Line, 4-Pin (Old-Style EI)

Restore reliable, hassle-free starts to your outdoor fireplace or fire pit with this plug-compatible pilot burner assembly for old-style 24VAC electronic ignition (EI) systems. Designed for legacy residential setups with a single gas line and 4-pin quick-connect harness, it delivers fast light-off and a steady flame signal in a compact, service-friendly package—ideal for outdoor fire pits, fire bowls, and linear/trough features.

Specifications

• Fuel Options / Models

  • Natural Gas (NG): PBANG12-O, PBANG18-O, PBANG24-O, PBANG30-O

  • Liquid Propane (LP): PBALP12-O, PBALP18-O, PBALP24-O, PBALP30-O

• Lengths (lead / assembly): 12" / 18" / 24" / 30"

• Power: 24 VAC (residential old-style EI platforms)

• Harness: 4-pin quick-connect

• Gas Configuration: Single gas line pilot assembly

• Use: Outdoor residential fireplaces, fire bowls, linear/trough features using old-style 24VAC EI controls

• Installation: Licensed professional; follow all local codes and appliance manufacturer instructions

What’s included: Pilot burner assembly with 4-pin harness (choose NG or LP model and length).

Key Features & Benefits

• Old-Style EI Compatible (4-Pin, 24VAC)
  Drop-in replacement for legacy residential electronic ignition systems—no rewiring or controller changes.

• Clean, Consistent Starts
  Precisely metered, single-line pilot produces a stable pilot flame for quick main-burner ignition and dependable flame sensing.

• Service-Friendly Design
  Compact form factor and quick-connect harness make swap-outs fast, reducing labor time and downtime.

• Sized for Your Layout
  Four length options (12"–30") simplify routing in tight chases or larger enclosures.

• Fuel-Specific SKUs
  Choose Natural Gas or Liquid Propane models for correct orifice sizing and optimal performance from day one.
