AFD Collection - Mariposa Vent-Free Fireplace

ORDERING GUIDE

Majestic, classic and unique at the same time, the Mariposa fireplace from American Fyre Designs™ (AFD) provides a warm environment for friends and family to spend an evening together. As twilight descends, the flickering flames cast a mesmerizing glow, casting enchanting shadows upon the surrounding landscape. Whether it's a crisp autumn evening or a chilly winter night, the outdoor fireplace offers a sanctuary from the elements, providing both warmth and ambiance in equal measure.

Expertly handcrafted from innovative Glass Fiber Reinforced Concrete (GFRC) frame and a high-temperature refractory cement firebox, this unit is specifically designed for longevity and consistent durability. Ready-made for discreet gas conversion, this fireplace is a herald of the outdoor fireplace movement, easily customized to put the gas key and gas line right where you want them.

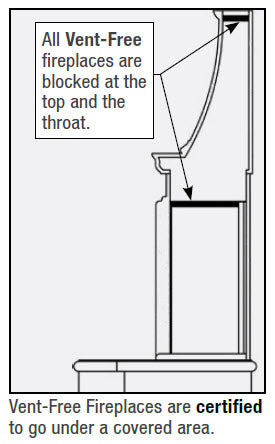

This vent-free version permits you to locate your fireplace in a lanai or other covered outdoor area.

Available in multiple finish colors: White Aspen, Café Blanco, Black Lava and Smoke. Also, available with different hearth styles, customized gas valve location, recessed option to accommodate field cladding in tile, stone or other veneer, and available with log or glass burner options to select the right fireplace for you.

FEATURES:

• Glass Fiber Reinforced Concrete (GFRC) body won't degrade | High-Temp Refractory Cement Firebox
• Modularly constructed as easy-to-assemble components
• Exterior may be recessed to accommodate field cladding in tile, stone, or other veneer
• Most fireplaces available as Vented or Vent-Free
• This model is vent-free

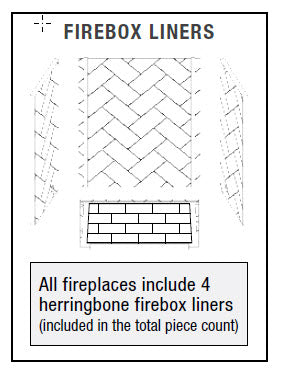

• Most Fireplaces include herringbone firebox liners (excluding Brooklyn, Manhattan and Milan models)
• Complimentary customizable gas plumbing included - Tailored hearth options to fit your needs
• Choose between many different finishes

SPECIFICATIONS:

• Dimensions: 65”w x 36”d x 67”h
• Glass, Gems & Nuggets Recommendation: One 10 lb package to fill burner pan. If your desire is to fill fireplace at a 2” depth use one 10 lb bag for every 65 sq. inches
• All fireplaces are crated for shipment

DOCUMENTS (manuals):

• Mariposa Spec Sheet
• Owner's Manual

NOTE: Log options DO NOT BURN REAL LOGS. Warranty will be voided!

CARE & MAINTENANCE:

CLEANING
Because the fireplace is constructed from GFRC, a concrete product, and the color is CAST all the way through, you can clean the unit like you would other concrete surfaces.
* The fireplace can be hosed off to remove most of the dust.
* Before re-sealing or to remove stubborn stains, the entire fireplace should be thoroughly cleaned.
Use CLR, a concrete cleaner which can be purchased from Home Depot, and a nylon scrub brush, taking care to rise off the residue. Follow the instruction on the package!

RE-SEALING
Your fireplace comes from the factory sealed with multiple coats of a non-glossy, penetrating concrete sealer.
Application of a similar product semi-annually is recommended, however there is nothing that can protect against pollution and/or acid rain which could stain the finish.
For best results, perform during cooler AM/PM temperatures:
*Clean the entire fireplace with CLR (information above).
*Allow fireplace to dry completely.
*Apply masonry sealer to entire fireplace (a sponge works well for this application).

SCREEN
If you have purchased a screen, although it has been powder-coated, it is still an iron product. During long periods of moisture, screens should be stored away from the elements. If areas of rust occur, they can be treated with any exterior rust-proof flat-black paint.

FUEL
Intended for exterior use with gas as fuel source. Wood-burning voids warranty. Excessive heat and high flames may result in cracks to exterior structure. Do not use fireplace in sub-freezing temperatures. Damage may result from rapid temperature changes.

PLACEMENT
Free-standing EXTERIOR fireplaces. Use only in well-ventilated areas. It is Buyer's responsibility to place fireplace in a spot that meets any local codes.

PLUMBING
Fireplaces come plumbed for gas (hook-up and gas logs not included). Advise right/left side for gas turn-on key AND out back or underneath for gas source line.

In freeze-thaw areas, the fireplace must be covered to keep the elements from collecting inside of the fireplace. Our fireplaces are designed to utilize gas as the fuel source. Wood-burning will void the warranty.

AMERICAN FYRE DESIGNS™ LIMITED WARRANTY HIGHLIGHTS

THREE (3) YEAR WARRANTY
American Fyre Designs™ exterior (GFRC) Fireplaces, Firetables, Fire Bowls, Fire Urns, and Fire Pits are warranted for three (3) years.

ONE (1) YEAR WARRANTY
American Fyre Designs™ burners, electronic components, and valves are warranted for one (1) year.

This warranty applies to the original purchaser with invoice or proof of purchase and to single family residential use only. For additional information regarding this warranty, or to place a warranty claim contact your authorized AFD dealer.

ORDERING GUIDE

After selecting the Finish Color and Gas Shut Off & Line Location options, you can use the information below to assist you with any additional options specific to this fireplace. IMPORTANT: If you have included a GFRC Chimney Rain Vent Cap or Arched GFRC Protector Plate for the fireplace, we will match the color you have chosen for the fireplace. If you want to order these optional items with an alternate color, you must contact us with your alternate color choices.

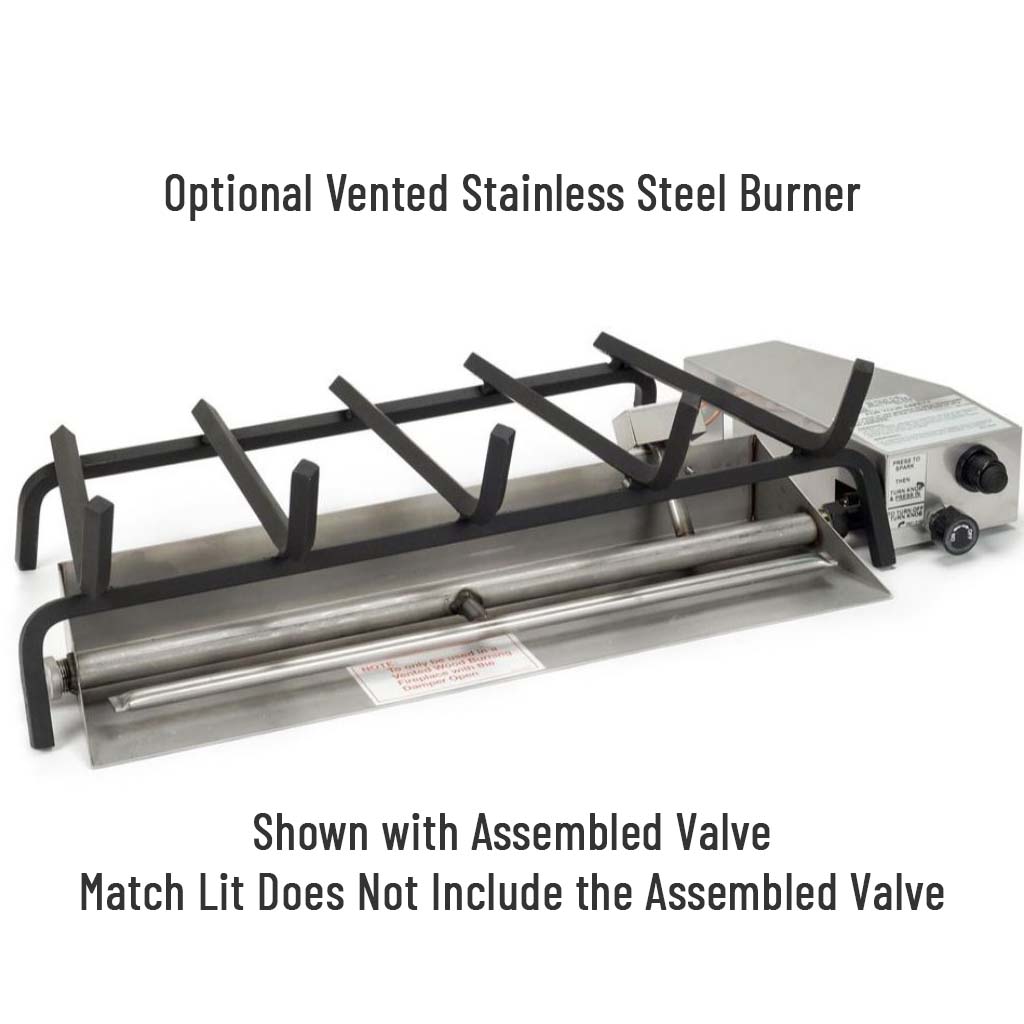

CHOOSE FUEL TYPE AND BURNER OPTION

If you do not plan to purchase a burner and log set for this fireplace, select No Burner.

Each burner configuration is offered in natural gas or propane.

CHOOSE HEARTH STYLE

This fireplace comes standard with a 16" Radiused Bullnose, as shown below. Extended hearths add two additional pieces to the total count, creating a hearth that is 113" wide. For the standard 65" wide hearth, do not choose the upgrade.

CHOOSE RECESS OPTION

Fireplaces may be ordered with recessed hearth and/or body to accommodate field cladding in tile, stone or other veneer. If you do not require a recess, do not select an upgrade. Only select ONE option: Hearth-Only Recess OR Hearth & Body Recess.

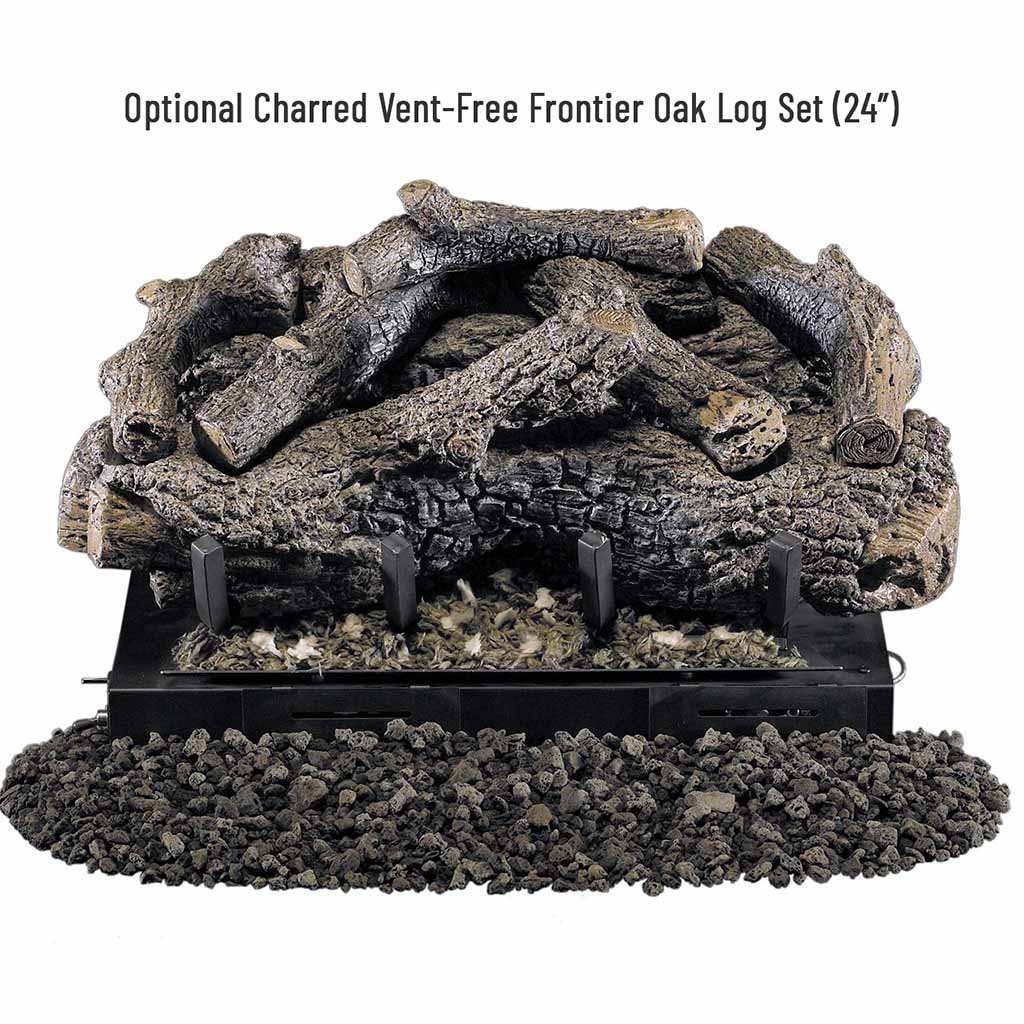

CHOOSE GAS LOGS

The log set offered matches the size of the burners offered.

CHOOSE OPTIONAL ACCESSORIES

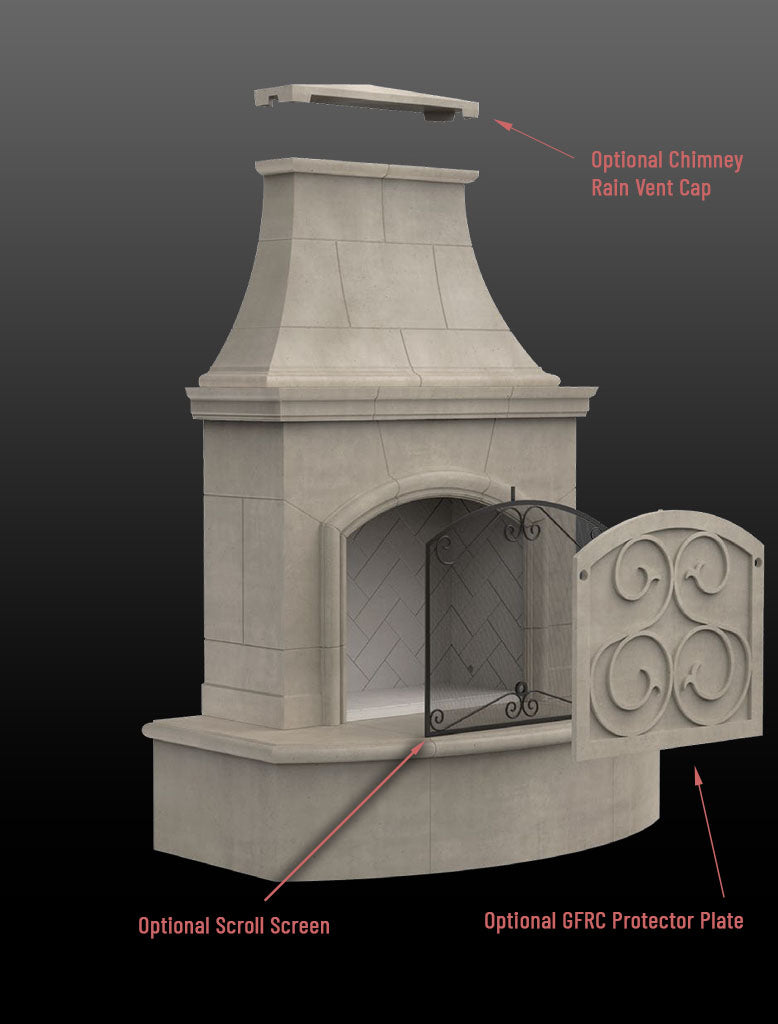

Finally, you may choose an Arched Black Scroll Screen, Arched GFRC Protector Plate or a GFRC Chimney Rain Vent Cap.
