Bromic Affinity Smart-Heat Dimmer Controller

Key Features

• Precise 1% Heat Adjustment – Fine-tune compatible electric heater output through the Bromic Heating app.
• 1, 2 & 5 Channel Options – Choose the configuration that matches your heating installation.
• Up to 6,000W Per Channel – Supports substantial electric heating loads.
• Wi-Fi Connectivity – Connects to compatible 2.4GHz Wi-Fi networks.
• Bluetooth Enabled – Provides local wireless connectivity within approximately 30 feet.
• Bromic Heating App Control – Manage compatible heaters from your mobile device.
• Heating Zones – Organize multiple heaters into convenient zones.
• Timers & Schedules – Automate heater operation based on your outdoor living schedule.
• Multi-Heater Management – Manage multiple connected Affinity controllers through the app.
• Multi-Site Management – Convenient for commercial and hospitality applications with multiple locations.
• Multi-User Access – Supports administrator and user management.
• Voice Control – Supports integration with Amazon Alexa and Google Home.
• Automation Integration – Optional Ethernet and 0–10V connectivity enables compatible home automation and building management integration.
• IP54 Rated – Designed for outdoor heating control applications.
• 1-Year Warranty – Backed by Bromic Heating.

Model Options

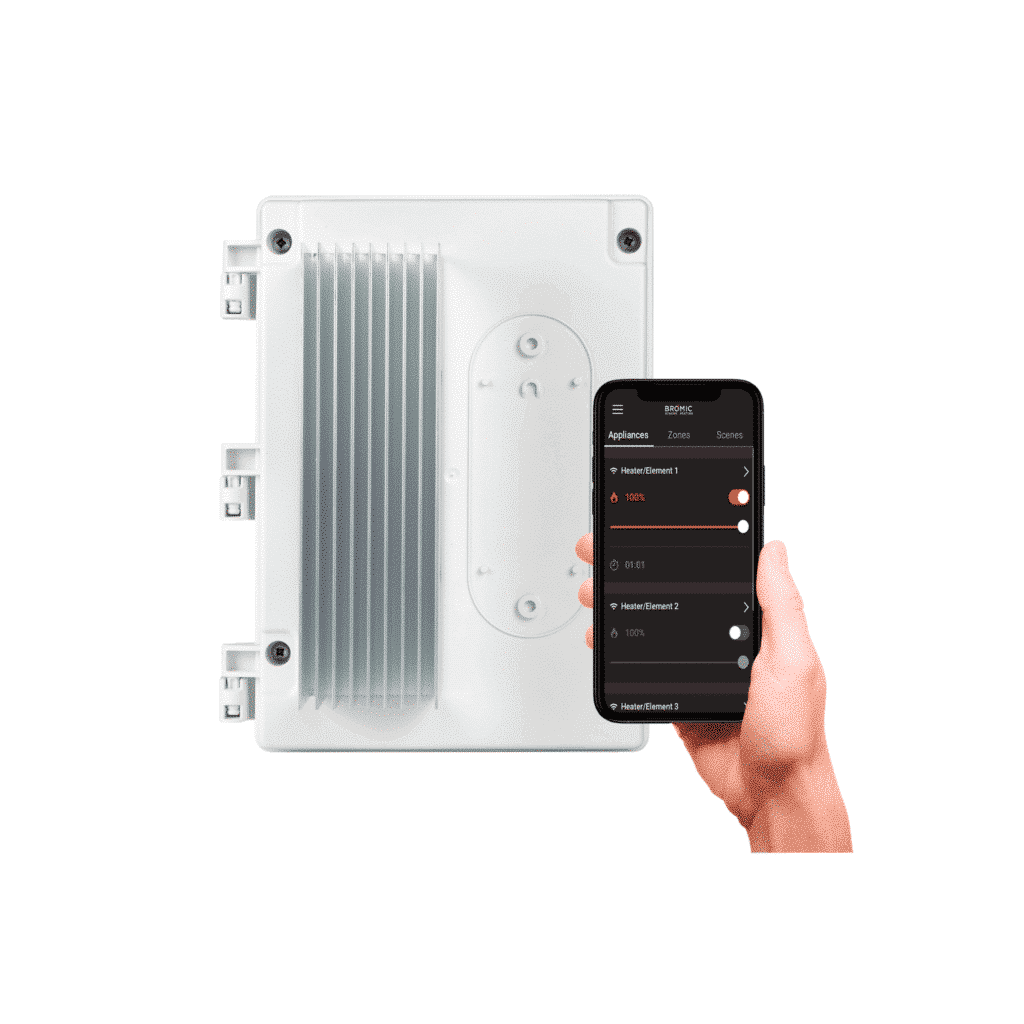

1-Channel Dimmer Controller

Part Number: BH3130061
Channels: 1
Voltage: 208–277V
Maximum Capacity: 6kW per channel
Dimensions: 11.4" × 8.0" × 6.4"
Weight: 3.5 lbs.
Wi-Fi: 2.4GHz
Protection Rating: IP54
Warranty: 1 Year

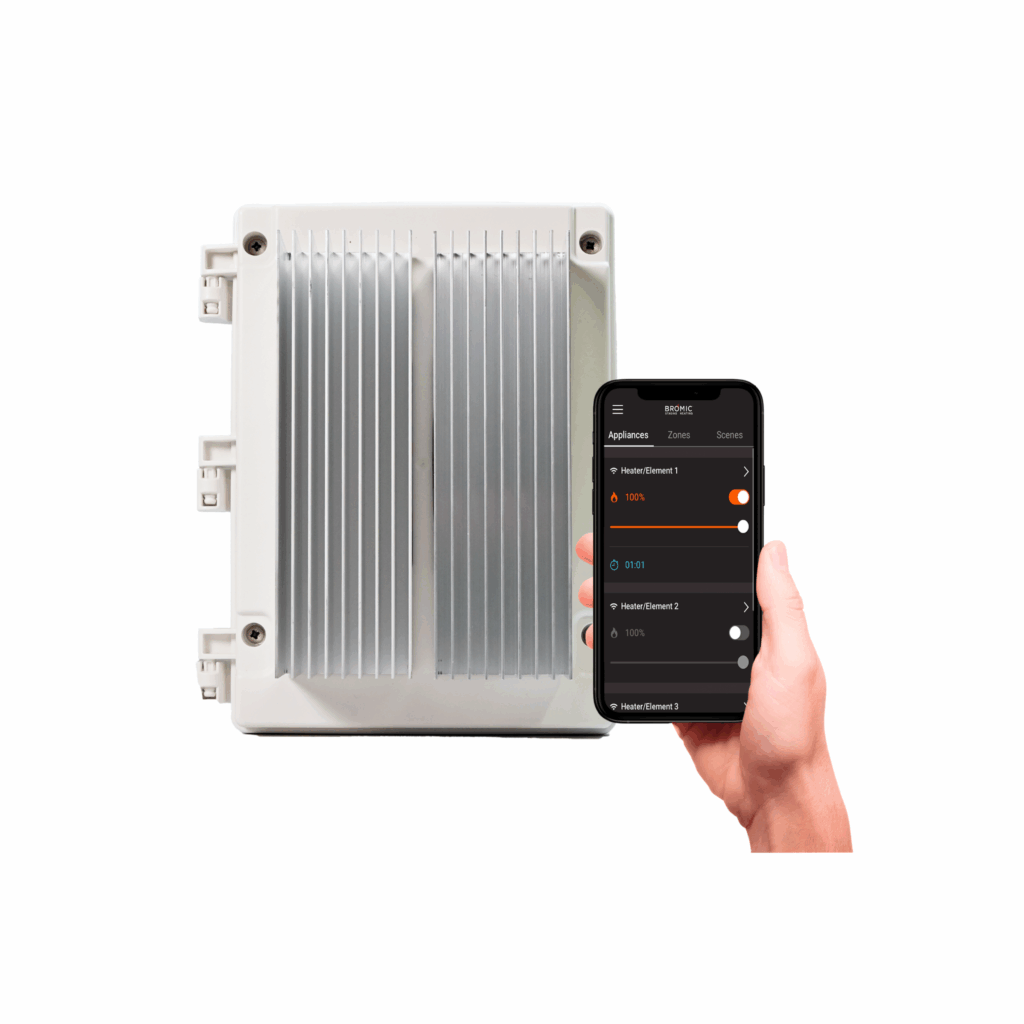

2-Channel Dimmer Controller

Part Number: BH3130062
Channels: 2
Voltage: 208–277V
Maximum Capacity: 6kW per channel
Total Potential Capacity: Up to 12kW across two appropriately configured channels
Dimensions: 11.4" × 8.0" × 6.4"
Weight: 5.3 lbs.
Wi-Fi: 2.4GHz
Protection Rating: IP54
Warranty: 1 Year

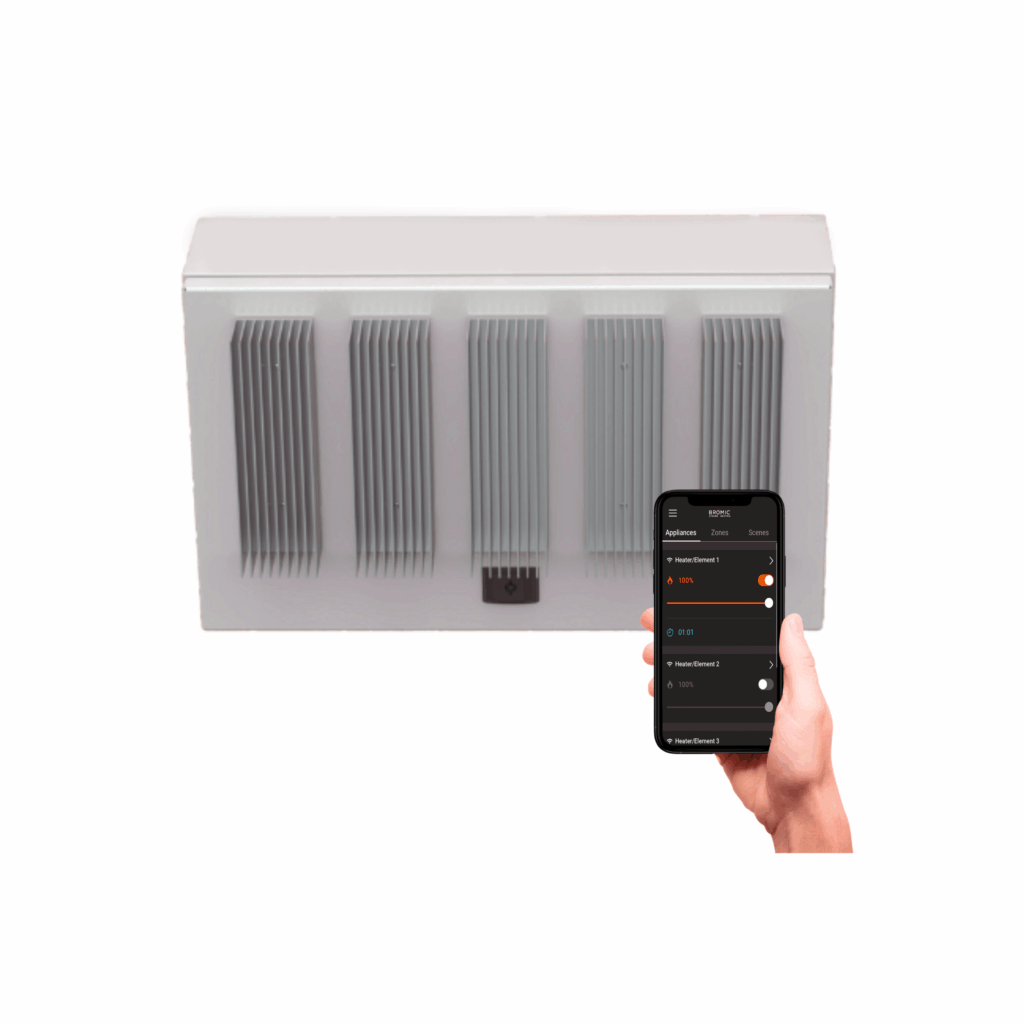

5-Channel Dimmer Controller

Part Number: BH3130063
Channels: 5
Maximum Capacity: 6kW per channel
Electrical Configuration: 3-Phase
Supported Configurations: 3N-220/380V, 3N-230/400V, 3N-240/415V, 3N-277/480V, 3-120/208V
Dimensions: 19.7" × 13.4" × 10.0"
Weight: 27.6 lbs.
Wi-Fi: 2.4GHz
Protection Rating: IP54
Expansion Board: Included
Warranty: 1 Year

General Specifications

Brand: Bromic Heating
Collection: Affinity Smart-Heat®
Product Type: Electric Outdoor Heater Dimmer Controller
Control Type: Variable / Dimming
Heat Adjustment: 1% Increments
Channel Options: 1 / 2 / 5
Maximum Capacity: 6kW Per Channel
Wi-Fi: 2.4GHz
Bluetooth: Yes
Protection Rating: IP54
Operating Temperature: -4°F to +86°F
Non-Operating Temperature: -22°F to +158°F
Certification: UL 60730-1 / CAN/CSA E60730-1
Warranty: 1 Year

Smart Control Features

Using the Bromic Heating app, users can access features including:

• Precise heat-output adjustment
• On/Off control
• Heater grouping
• Heating zones
• Timers
• Scheduling
• Multi-heater management
• Multi-site management
• Multi-user access
• Administrator controls
• Amazon Alexa integration
• Google Home integration

Heater Compatibility

The Affinity Smart-Heat Dimmer Controller is designed for compatible Bromic electric heaters, including:

• Platinum Smart-Heat® Electric
• Tungsten Smart-Heat® Electric
• Cobalt Smart-Heat™ Electric

Important: The Affinity Dimmer Controller is not compatible with Bromic gas heaters.

Expansion Board

The optional Affinity Smart-Heat® Expansion Board adds:

• Ethernet connectivity
• 0–10V control
• Home automation integration
• Building management system integration

The Expansion Board is optional for the 1- and 2-channel models and included with the 5-channel model.

Dimmer vs. On/Off Controller

Choose the Affinity Dimmer Controller when you want precise, variable heat adjustment.

Choose the Affinity On/Off Controller when you only need to switch compatible heaters between OFF and full-power ON.

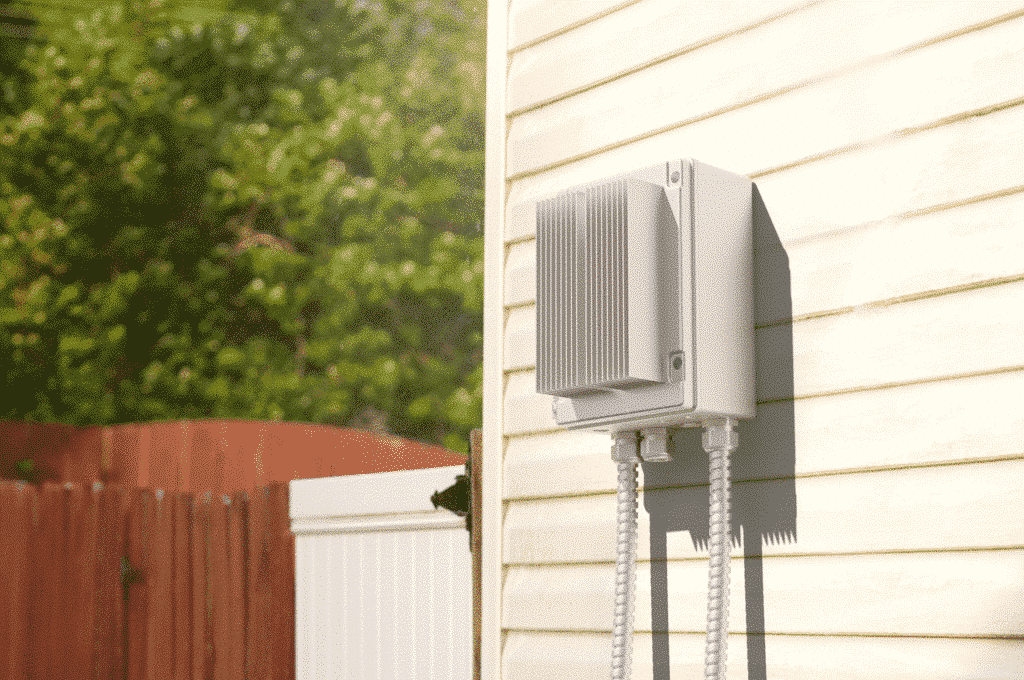

Installation

Professional electrical installation is required. Controller selection and wiring must comply with the connected heater load, controller capacity, Bromic installation requirements, and applicable electrical codes.
