Affinity Smart-Heat® Eclipse Controllers

Created for our Eclipse Collection, the Affinity Eclipse Series offers 1 and 5 channel input options for our fixed Eclipse Pendant outdoor heater. Using the Bromic Heating app, have complete incremental control over not just the heat, but the LED light rail output as well, creating the perfect ambience – every time. Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating App.

Model: Affinity Eclipse
Warranty: 1 Year (Parts)
Approval / Certification: UL 60730-1, CAN/CSA E60730-1
WiFi Connectivity: 2.4GHz
Protection Rating: IP54
Operating Temperature Range: -4°F to +86°F
Non-Operating Temperature Range: -22°F to +158°F
Heater Compatibility: Eclipse Electric

Variants / Options

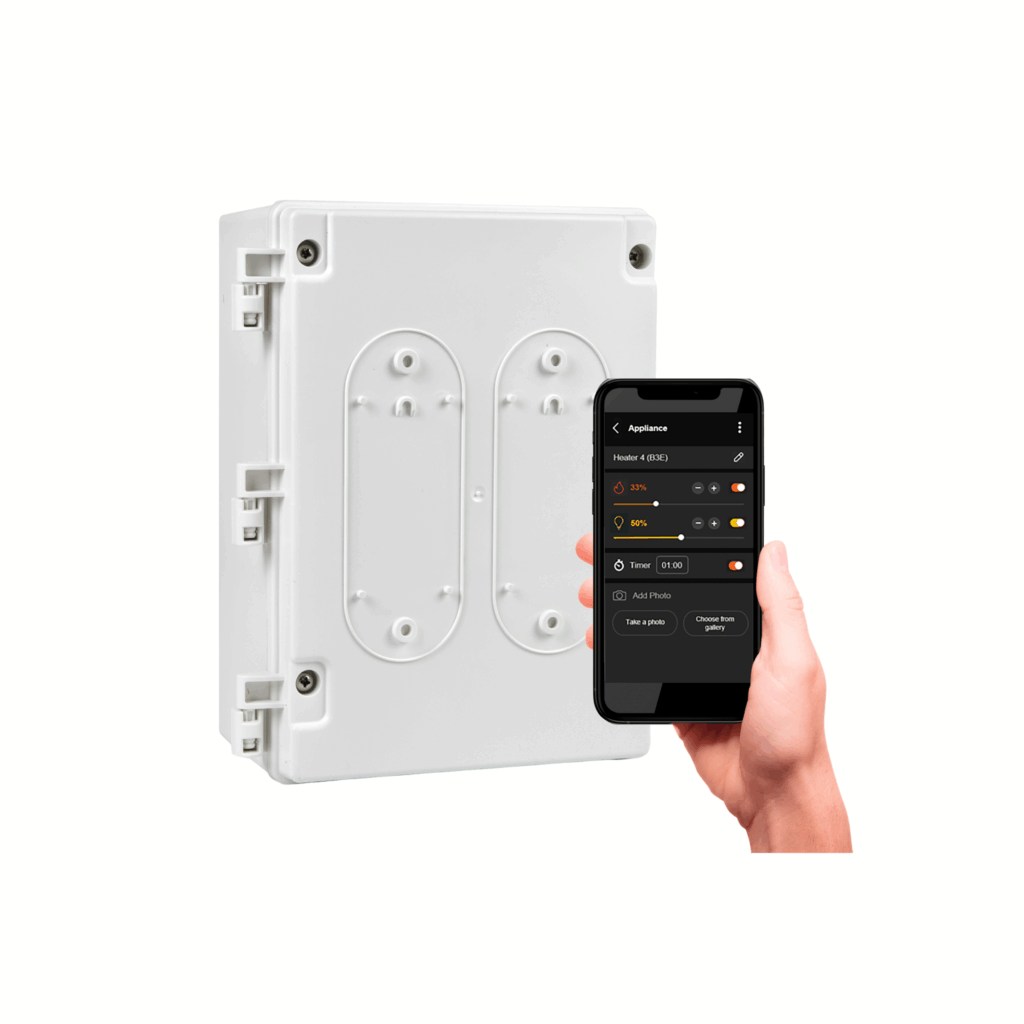

1-Channel (1 CH)

Part Number: BH8380051
No. of Channels: 1
Voltage / Max Capacity (per channel): 220–240V – 4kW
Dimensions: 11.4 × 8.0 × 4.4″
Weight: 3.5 lbs

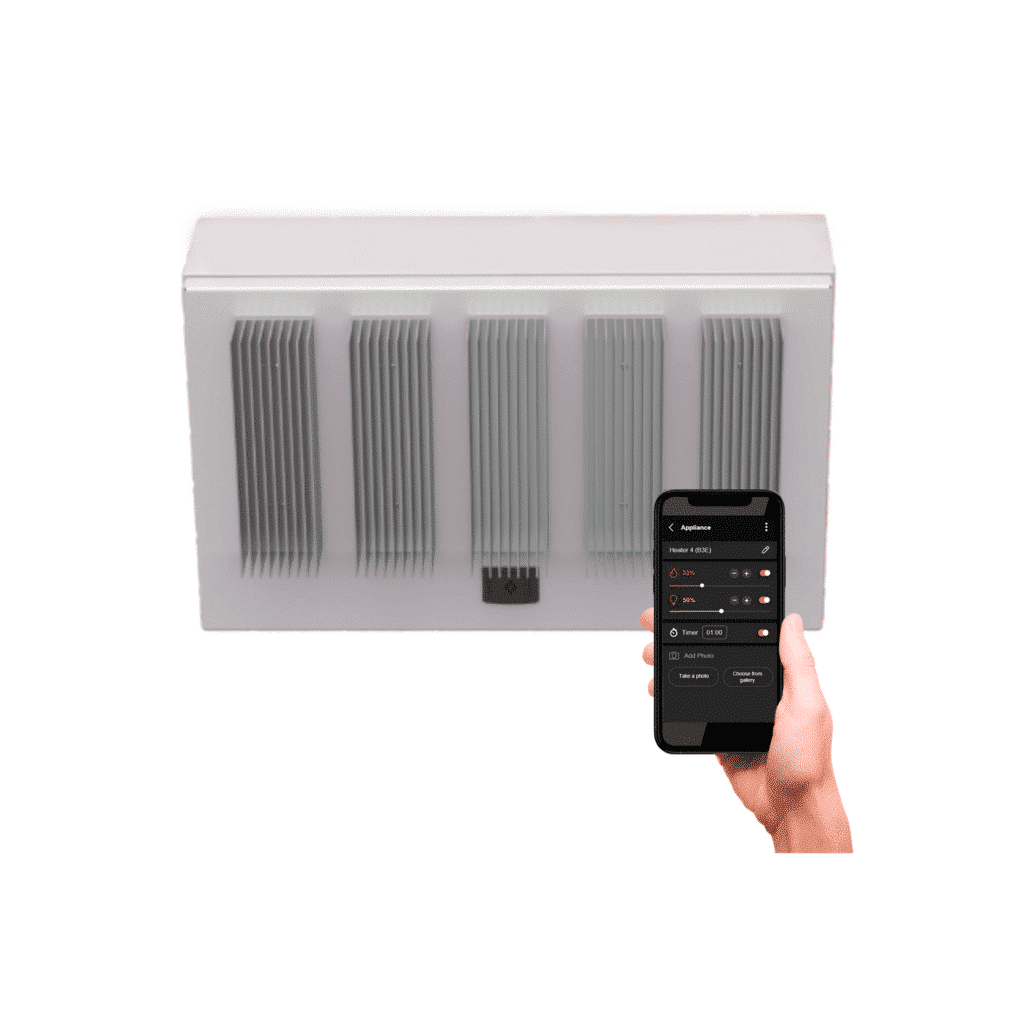

5-Channel (5 CH)

Part Number: BH8380055
No. of Channels: 5
Voltage / Max Capacity (per channel):
3N-220/380V – 6kW
3N-230/400V – 6kW
3N-240/415V – 6kW
3N-277/480V – 6kW
3-120/208V – 6kW
Dimensions: 19.7 × 13.4 × 10.0″
Weight: 33.1 lbs
