Affinity Smart-Heat® On/Off Controllers

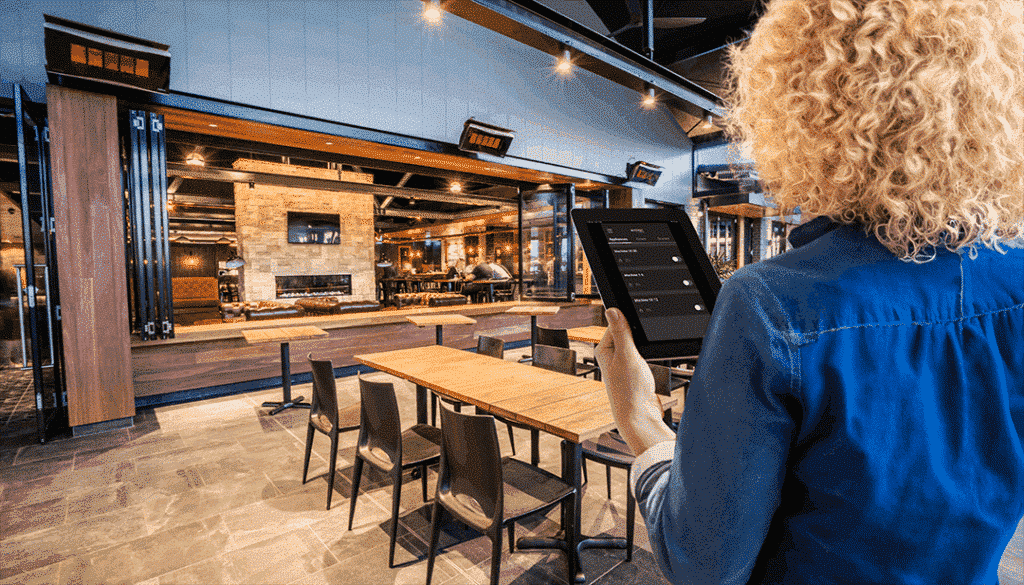

The On/Off series allows for connected Platinum or Tungsten Collection gas or electric Bromic heaters to be turned on or off at full power capacity – providing straight forward function and usage of your outdoor heater. This series includes options for 1, 2, and 5 channel inputs. Each channel input can control up to 6000W of power or 10 gas heaters. Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating App.

3-Phase 5 Channel model is complete with an included expansion board allowing for seamless ethernet integration for a full-proof connection to your outdoor heaters or 0-10V control for Home or Business Automation integration.

Model: Affinity ON/OFF
Warranty: 1 Year
Approval / Certification: UL 60730-1, CAN/CSA E60730-1
WiFi Connectivity: 2.4GHz
Protection Rating: IP54
Operating Temperature Range: -4°F to +86°F
Non-Operating Temperature Range: -22°F to +158°F
Heater Compatibility: Platinum Electric & Tungsten Electric

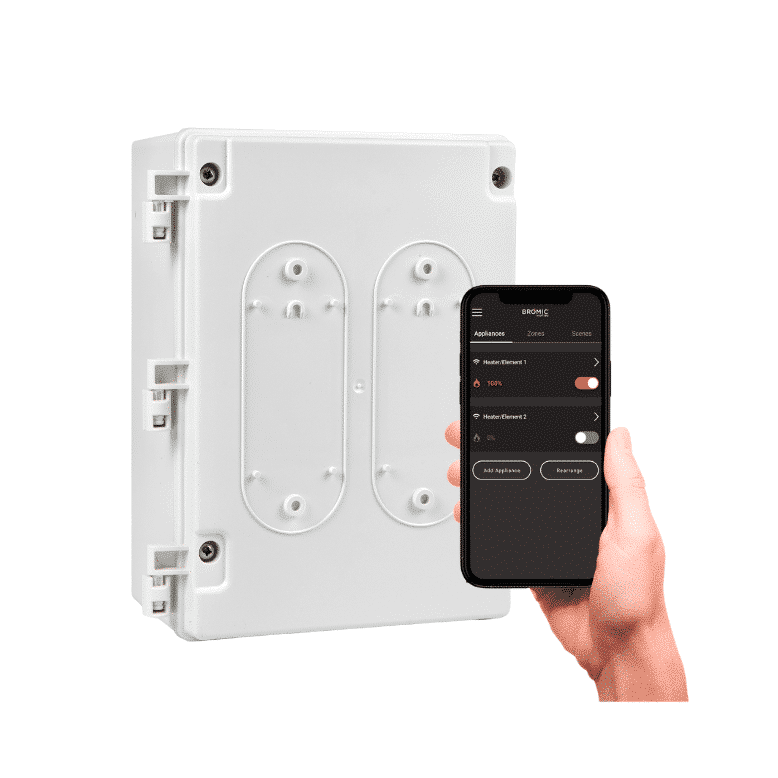

1-Channel (1 CH)

Part Number: BH3130051
Number of Channels: 1
Voltage / Max Capacity (per channel): 100–127V – 1kW | 208–277V – 6kW
Dimensions: 11.4 × 8.0 × 4.4″
Weight: 3.1 lbs

2-Channel (2 CH)

Part Number: BH3130052
Number of Channels: 2
Voltage / Max Capacity (per channel): 100–127V – 1kW | 208–277V – 6kW
Dimensions: 11.4 × 8.0 × 4.4″
Weight: 3.6 lbs

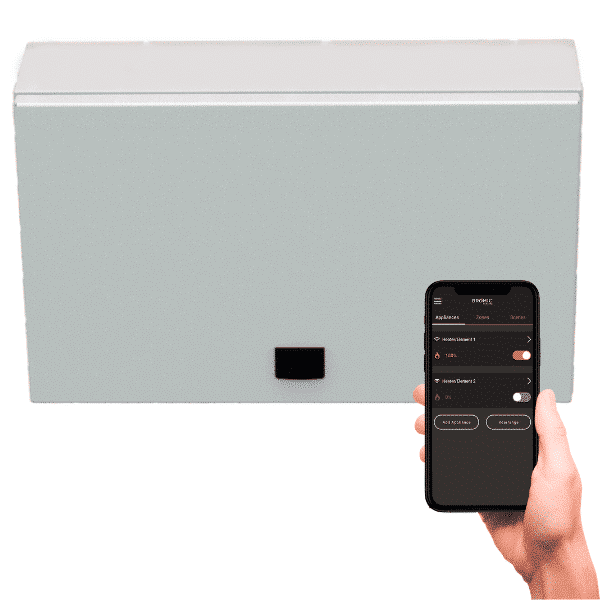

5-Channel (5 CH)

Part Number: BH3130053
Number of Channels: 5
Voltage / Max Capacity (per channel):
3N-220/380V – 6kW
3N-230/400V – 6kW
3N-240/415V – 6kW
3N-277/480V – 6kW
3-120/208V – 6kW
Dimensions: 19.7 × 13.4 × 8.0″
Weight: 24.3 lbs
