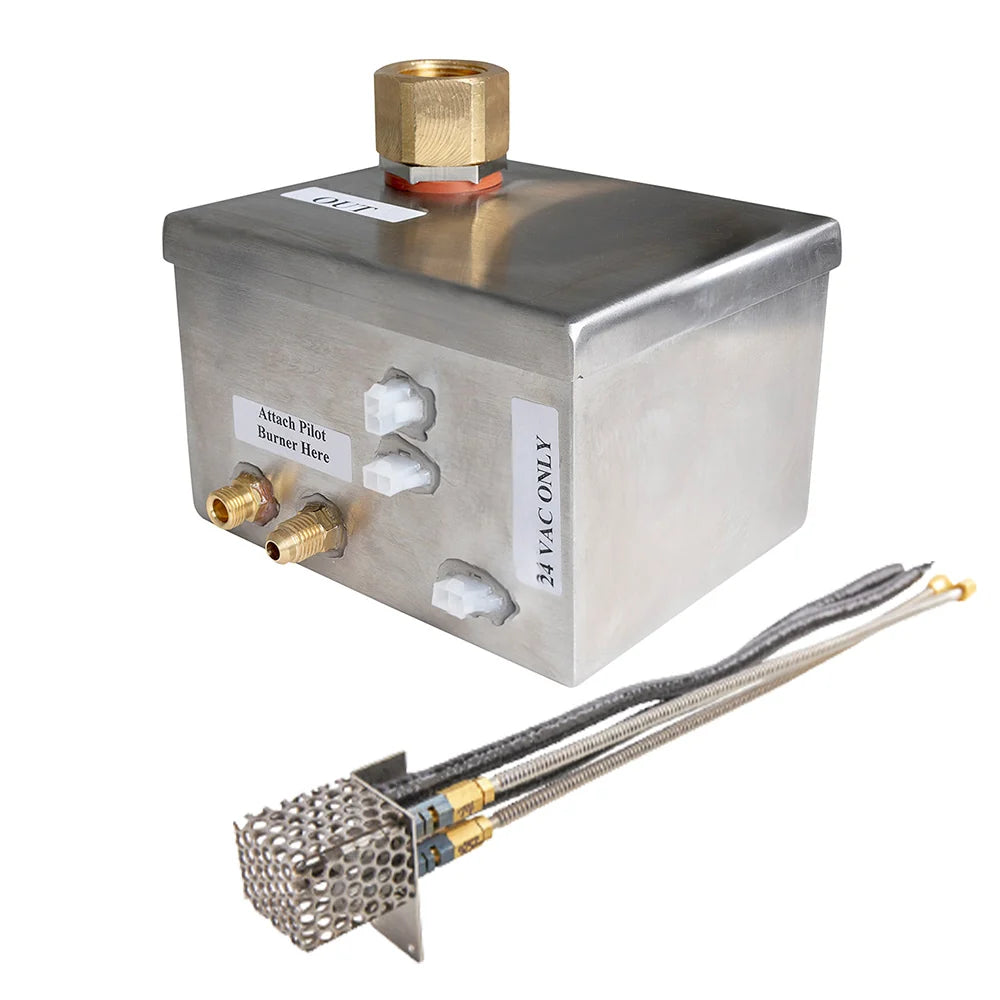

Field Serviceable AWEIS High Capacity 780K BTU Electronic Ignition System
- Free shipping on orders over $400*
Fuel Type Options
- Natural Gas
- Liquid Propane
Select the correct fuel type when ordering.
Key Features
- High-capacity AWEIS electronic ignition system
- Up to 780,000 BTU
- Available for Natural Gas or Liquid Propane
- 18" field-serviceable pilot burner included
- 24V AC operation
- Field-serviceable design
- 3/4" FIP gas inlet
- 3/4" FIP gas outlet
- 2-pin Molex connection
- Multiple pilot burner lengths available upon request
- Pilot extensions available for longer applications
Specifications
- Brand: American Fire Products / Fire by Design
- Series: AWEIS
- Product Type: Field Serviceable Electronic Ignition System
- Capacity: High Capacity
- Maximum Input: 780,000 BTU
- Fuel Options: Natural Gas or Liquid Propane
- Standard Pilot Burner: 18"
- Voltage: 24V AC
- Inlet Size: 3/4" FIP
- Outlet Size: 3/4" FIP
- Connection: 2-Pin Molex
- Application: Outdoor Gas Fire Features
Pilot Burner Options
Standard configuration includes an 18" field-serviceable pilot burner.
Pilot burner sizes available upon request:
- 12"
- 18"
- 24"
- 30"
Extensions are available for installations requiring lengths beyond these standard sizes.
What's Included
- Field Serviceable AWEIS High Capacity System
- 18" Field Serviceable Pilot Burner Assembly
- 24V AC Transformer
- Ignition Control Module
- Heat Deflector Shield
- Installation Instructions
Important
The Natural Gas and Liquid Propane systems are fuel-specific. Select the appropriate fuel configuration for your installation.
Burner and other fire feature components are not listed as included with this package.
