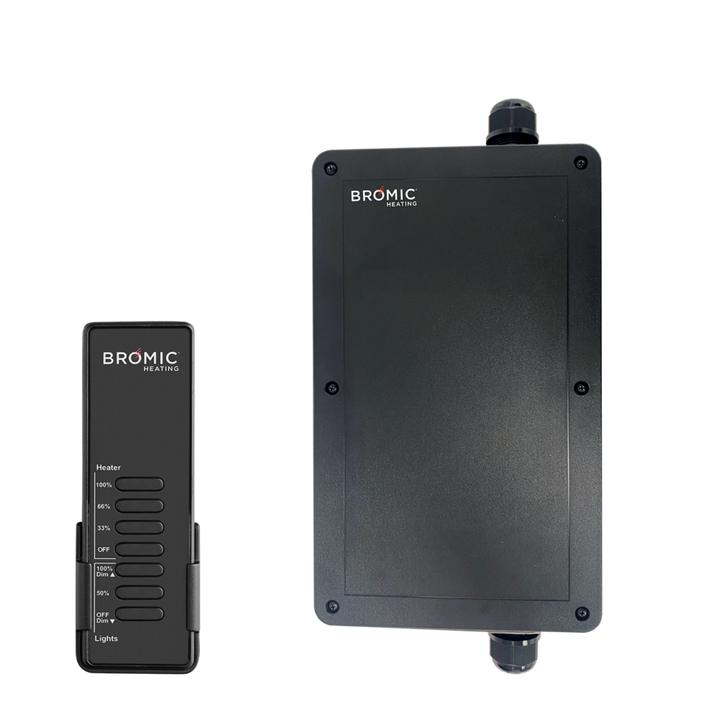

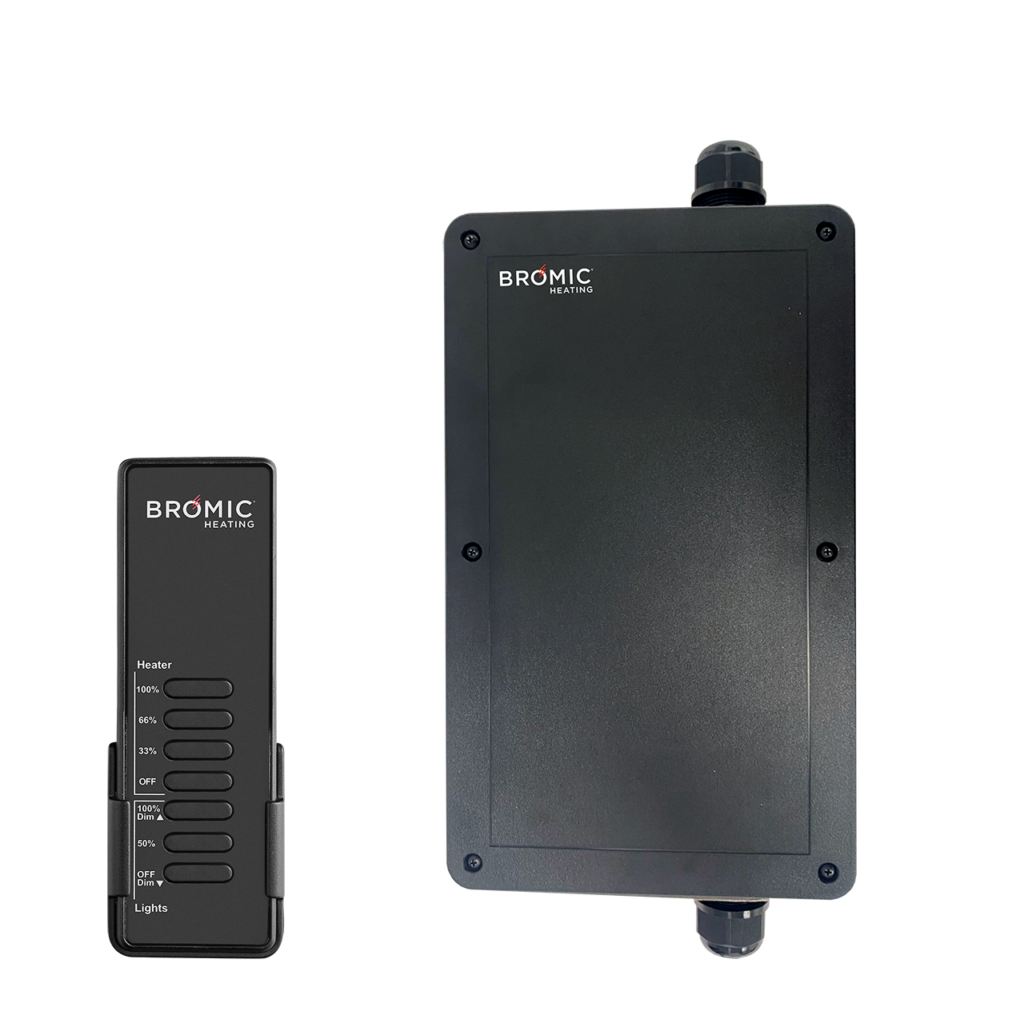

Eclipse Dimmer Controller

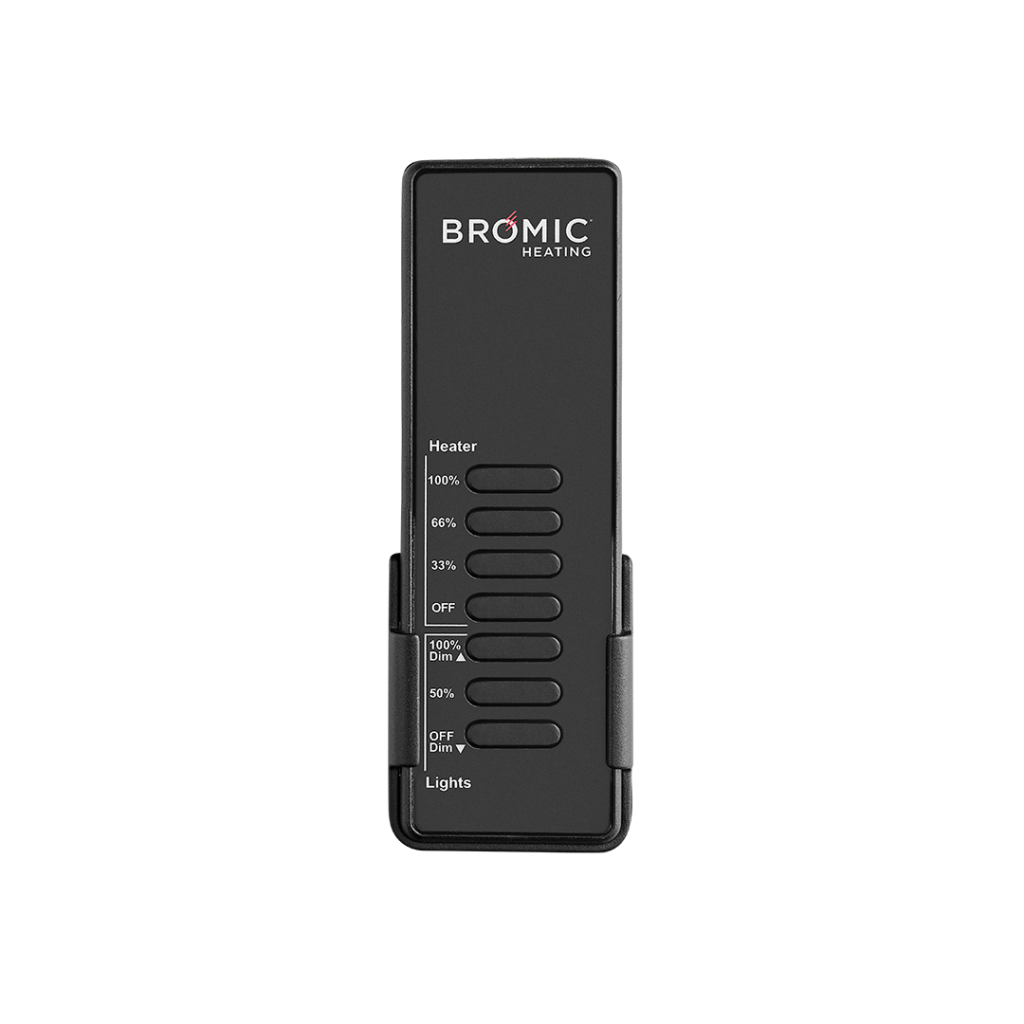

Set up the perfect ambience with the Bromic Eclipse Dimmer Controller and wireless Remote. Suitable for our Eclipse Pendant and Portable series, the Bromic Eclipse Dimmer Controller and Remote can quickly dim the lighting in 1% increments and the heating output (0%, 33%, 66%, 100%) to create the perfect ambience – every time.

Product Specifications:

Part Number: BH3230007-1
Power Supply: 220/240VAC, 17A minimum, Single Phase
Channel 1: Element 1 – 66% Heat Setting
Channel 2: Element 2 – 33% Heat Setting
Fuse Protection: 20A (FWC High Speed)
Reception Frequency: 916MHz
Operating Temperature Range: -4°F to 122°F
Dimensions: 11.5” × 6.2” × 3.15”
Weight: 4 lbs
Protection Class: IP54
Warranty: 1 Year (Parts)
