Name: AWEIS, All Weather Electronic Ignition System-standard capacity
Brand: Fire By Design
SKU: AWEIS SC
Price: 1770.0 USD
Availability: InStock

AWEIS, All Weather Electronic Ignition System-standard capacity

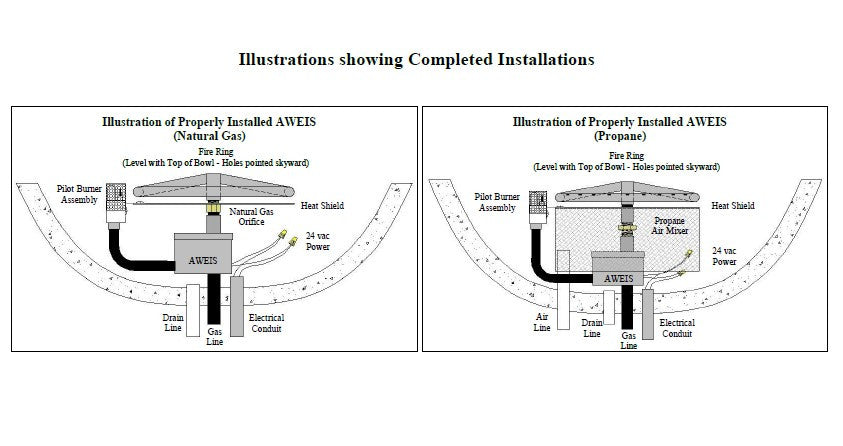

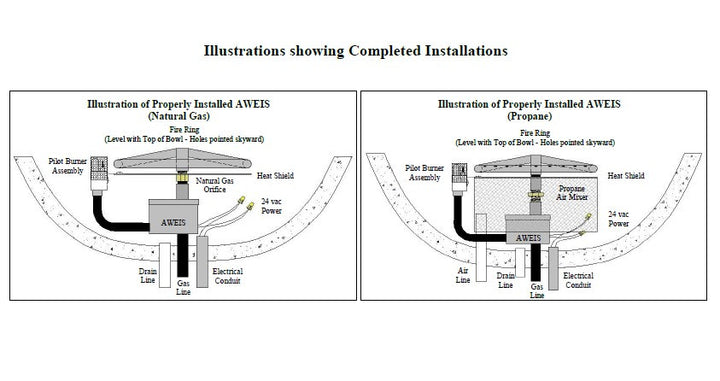

AWEIS installations in a fire bowl, Natural gas vs Propane

$1,770.00

Shipping calculated at checkout.

Fuel Type

Natural Gas

Propane

Free shipping on all orders over $200

In stock, ready to ship
Backordered, shipping soon

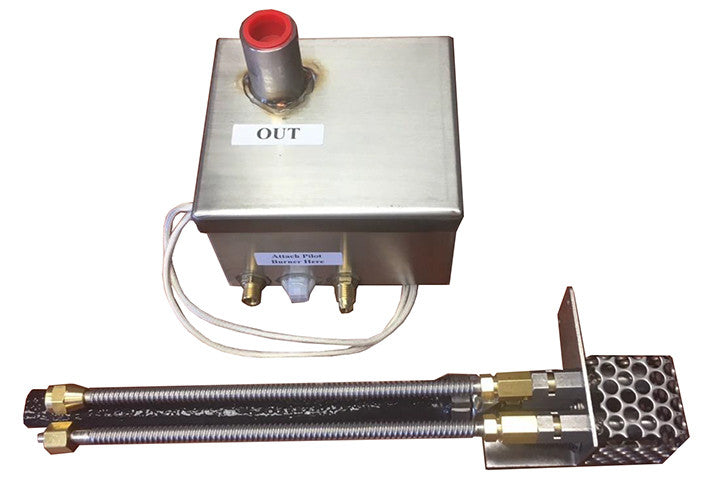

All Weather Electronic Ignition System - Standard Capacity AWEIS SC Please note that as of 2018 Fire by Design has improved their system with a new pilot head that has 2 separate pilot heads. The AWEIS SC is the smallest Electronic Ignition System for use in Fire Bowls and Fire Pits on the market today. Its small size, especially in height makes it the perfect match for those features that do not have much room in the vertical. With a maximum gas output of 290K Btu/hr – which is quite a large amount of gas - it can be used in most fire feature applications. For those features requiring even more gas we have the AWEIS High Capacity System.

This fire pit ignition system is the most reliable system we have tested to date so we offer this full electronic ignition system as a standard option on COOKE fire pit tables. All Weather Electronic Ignition System - Standard Capacity AWEIS SC

Flame / Heat Sense: Thermopile
Ignition Type: Hot Surface Ignition (Glow Plug) Ignition
Sequence: Intermittent Pilot
Ignition Source: Pilot
Max. Btu Output: 290K Btu/hr
Inlet / Outlet Size: ½" FPT
Operating Voltage: 24 volts ac
Inlet Gas Press. Limit: 2.0 psi Valve

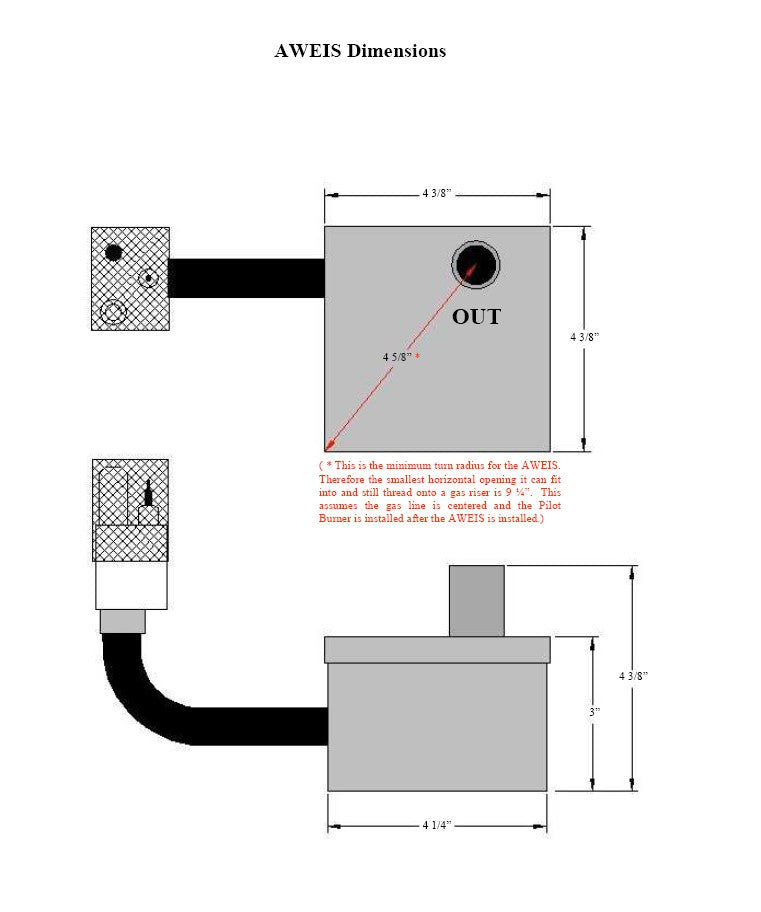

Enclosure Dim.: 4 3/8" x 4 3/8" x 4 3/8" (tall)

The AWEIS SC is the smallest Electronic Ignition System for use in Fire Bowls and Fire Pits on the market today. Its small size, especially in height makes it the perfect match for those features that do not have much room in the vertical. With a maximum gas output of 290K Btu/hr – which is quite a large amount of gas - it can be used in most fire feature applications. For those features requiring even more gas we have the AWEIS High Capacity System.

This is the best industry standard full electronic ignition system for fire pit tables and fire pits.

Model Number SCGNG or SCGLP

Includes

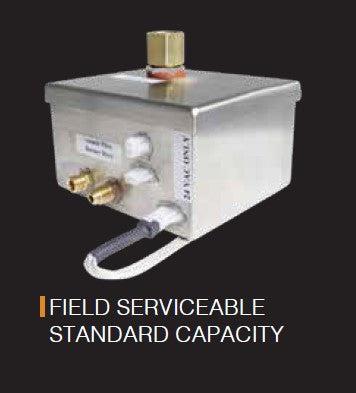

1. All weather electronic ignition system main control box

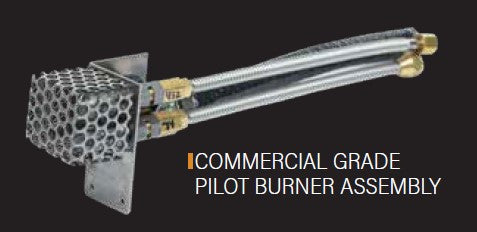

1. 12" Pilot assembly (contact us after order if you want a longer one)

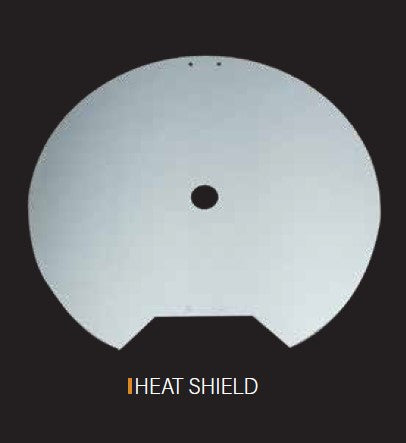

1. Heat shield to mount pilot next to the burner

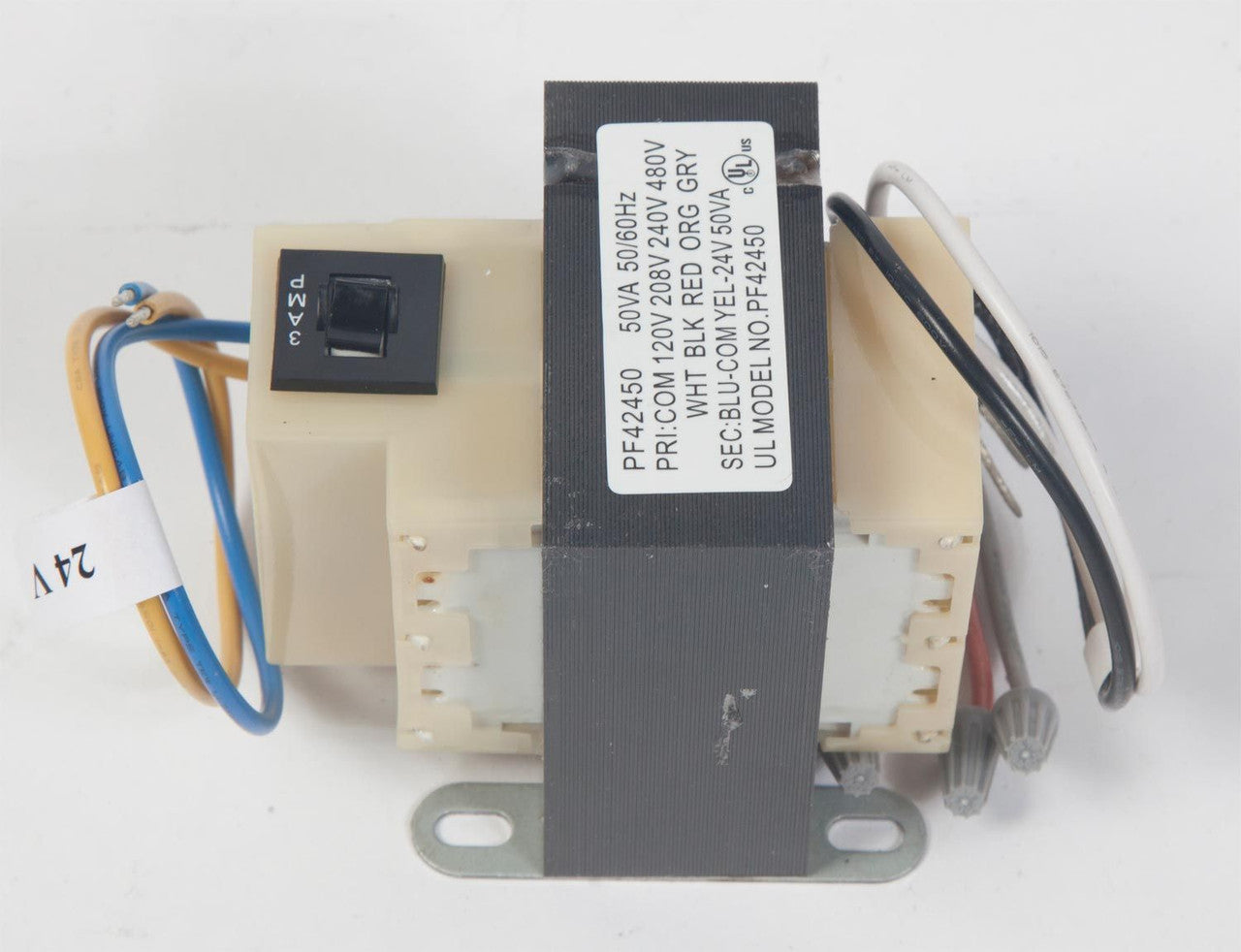

1. transformer
