Fire Magic Echelon E540d 30-Inch Drop-In Gas Grill with Analog Thermometer
- Free shipping on orders over $400*

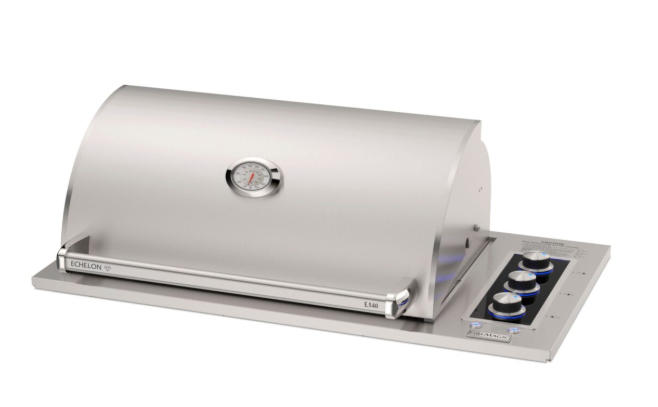

The Fire Magic Echelon E540d Drop-In Gas Grill brings Echelon styling and performance to a 30-inch drop-in outdoor kitchen platform. Available in Natural Gas or Liquid Propane, the E540d combines a redesigned stainless steel hood with a contemporary black-glass-accented control panel and built-in analog thermometer.

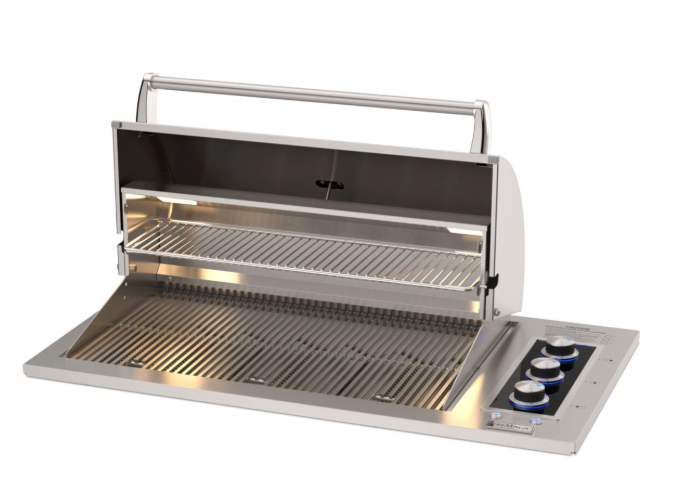

Its 30" x 18" cooking surface provides 540 square inches of primary grilling space, while the 30" x 8" warming rack adds 240 square inches. Fire Magic rates the E540d's main burner system at 54,000 BTU.
The E540d features 304 stainless steel tube burners, Fire Magic Diamond Sear cooking grids, internal halogen lighting, and electric spark ignition. The ignition and lighting system requires a 110V/120V electrical connection.
Unlike Fire Magic's standard Echelon built-in grill heads, the E540d uses a deeper drop-in installation format. Fire Magic's current Product Specifications Guide lists a 41-3/4" x 20-3/4" x 18" cutout, while the live product page lists slightly different width and depth measurements; this discrepancy should be considered before countertop fabrication.
Natural Gas & Liquid Propane Variants
Fuel Type |
Exact SKU |
|---|---|
| Natural Gas | E540d-6TAN |
| Liquid Propane | E540d-6TAP |
Fire Magic presents the parent model as E540d-6TAN(P), indicating Natural Gas and Propane fuel versions.
Shopify Variant Setup
Option — Fuel Type
- Natural Gas — E540d-6TAN
- Liquid Propane — E540d-6TAP
Total Shopify Variants: 2
Exact SKU Breakdown
SKU |
Fuel Type |
Hood |
Thermometer |
|---|---|---|---|
| E540d-6TAN | Natural Gas | Included | Analog |
| E540d-6TAP | Liquid Propane | Included | Analog |
Model Number Logic
Code |
Meaning |
|---|---|
| E540d | Echelon E540 Drop-In Grill |
| 6TA | Hooded E540d analog configuration |
| N | Natural Gas |
| P | Liquid Propane |
For Shopify inventory, use E540d-6TAN and E540d-6TAP as the individual variant SKUs rather than using the parenthetical E540d-6TAN(P) as a literal SKU. Fire Magic's current product and specification pages use the N(P) notation for the fuel family.
Key Features
- Fire Magic Echelon E540d drop-in gas grill
- Natural Gas and Liquid Propane options
- 30-inch cooking surface
- 30" x 18" primary cooking surface
- 540 sq. in. primary cooking area
- 30" x 8" warming rack
- 240 sq. in. warming area
- 780 sq. in. combined primary and warming area
- 54,000 BTU main burner output
- 304 stainless steel tube burners
- Diamond Sear cooking grids
- Analog thermometer
- Black glass accented control panel
- New sleek stainless steel hood
- Double-wall 304 stainless steel hood
- Internal halogen lighting
- Electric spark ignition
- 110V/120V electrical connection
- Rotisserie kit available
- Drop-in outdoor kitchen installation
Specifications
Specification |
Details |
|---|---|
| Brand | Fire Magic |
| Series | Echelon |
| Model | E540d |
| Model Family | E540d-6TAN(P) |
| Natural Gas SKU | E540d-6TAN |
| Liquid Propane SKU | E540d-6TAP |
| Product Type | Drop-In Gas Grill |
| Manufacturer Size | 30-Inch |
| Fuel Options | Natural Gas / Liquid Propane |
| Primary Cooking Surface | 30" W x 18" D |
| Primary Cooking Area | 540 sq. in. |
| Warming Rack | 30" W x 8" D |
| Warming Area | 240 sq. in. |
| Combined Primary + Warming Area | 780 sq. in. |
| Main Burner Output | 54,000 BTU |
| Burner Material | 304 Stainless Steel |
| Burner Type | Tube Burners |
| Cooking Grids | Diamond Sear |
| Thermometer | Analog |
| Control Panel | Black Glass Accent |
| Hood | Double-Wall 304 Stainless Steel |
| Interior Lighting | Halogen |
| Ignition | Electric Spark |
| Electrical Requirement | 110V/120V |
| Rotisserie Kit | Available |
| Current Spec-Guide Cutout | 41-3/4" W x 20-3/4" D x 18" H |
| Overall Width | 45" |
| Overall Depth | 26-1/2" |
| Overall Height | 20-3/8" |
| Additional Dimension H | 15-1/4" |
Fire Magic's current Product Specifications Guide identifies the hooded E540d-6TAN(P) and gives overall dimensions of 45" x 26-1/2" x 20-3/8", along with the 41-3/4" x 20-3/4" x 18" cutout.
Important Cutout Dimension Discrepancy
There is a notable difference between Fire Magic's current sources:
Manufacturer Source |
Cutout |
|---|---|
| Current Product Specifications Guide | 41-3/4" W x 20-3/4" D x 18" H |
| Live E540d Product Page | 41-1/2" W x 20-1/2" D x 18" H |
The current Product Specifications Guide is the more detailed technical source and explicitly identifies model E540d-6TAN(P). The live product page gives the slightly smaller 41-1/2" x 20-1/2" dimensions.
For Shopify, I would list:
Cutout: 41-3/4" W x 20-3/4" D x 18" H — per current Fire Magic Product Specifications Guide
For countertop fabrication, the installer should verify the installation manual supplied with the exact E540d before cutting the opening.
Hooded vs. Hoodless E540d
Fire Magic currently offers two distinct E540d configurations:
Model Family |
Configuration |
|---|---|
| E540d-6TAN(P) | Drop-In Grill with Hood & Analog Thermometer |
| E540d-0T0N(P) | Hoodless Drop-In Grill |
