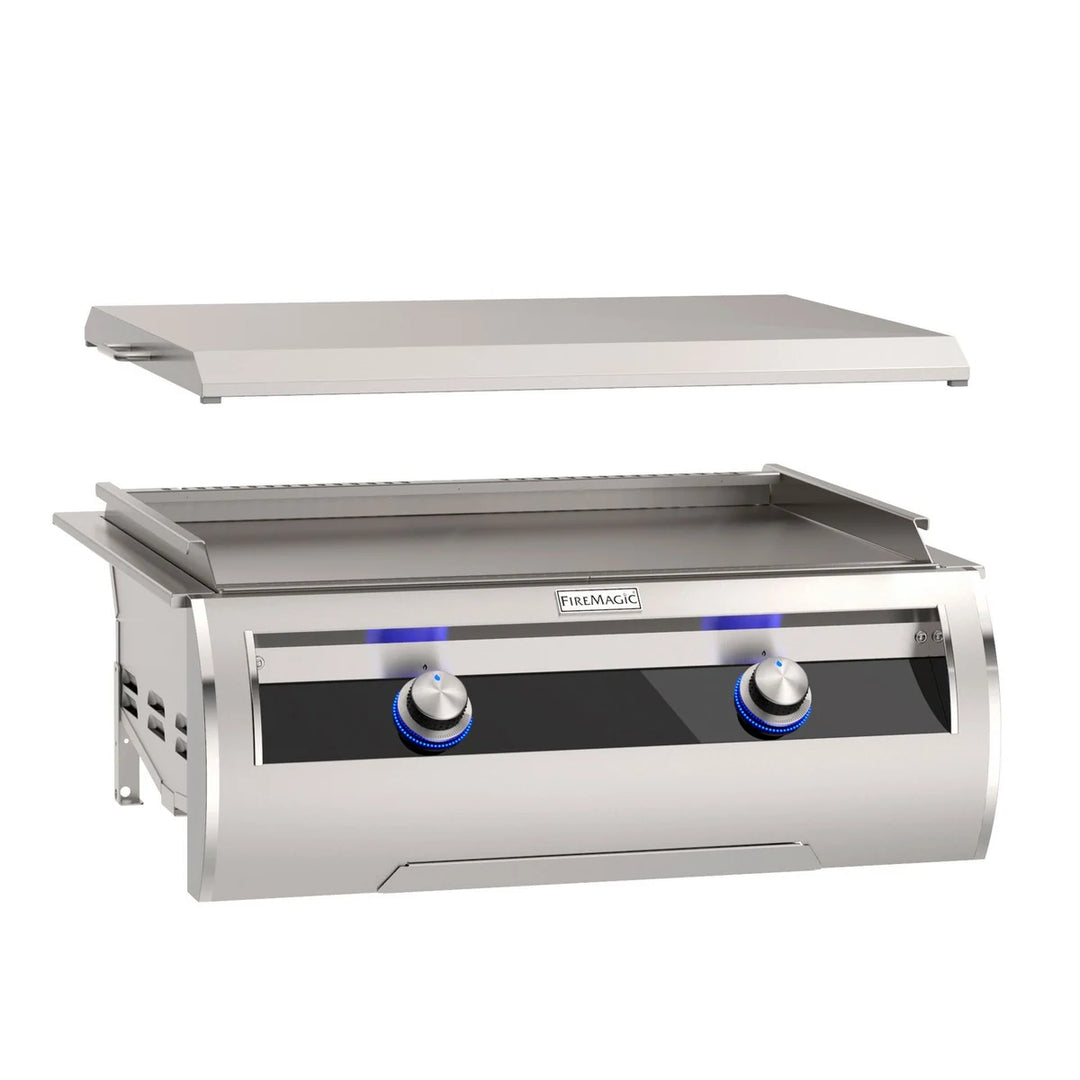

Fire Magic Echelon Diamond E660i 30-Inch Black Glass Built-In Propane Gourmet Griddle with Stainless Steel Cover
- Free shipping on orders over $400*
The Fire Magic Echelon Diamond E660I-1T4P Gourmet Griddle brings premium flat-top cooking to a built-in outdoor kitchen. Designed in the Echelon Diamond style, this Liquid Propane model combines durable 304 stainless steel construction with a sophisticated black glass control panel and a spacious 30" × 18" cooking surface.
The heavy-duty 3/8-inch-thick stainless steel griddle plate provides 540 square inches of cooking space and is engineered for long-lasting, warp-resistant performance. Two independently controlled heavy-duty stainless steel burners deliver a combined 45,000 BTU, creating two cooking zones that allow different foods to be prepared at different temperatures simultaneously.
A 120VAC/12V Hot Surface Ignition system provides dependable lighting, while two back-lit control knobs offer independent temperature adjustment for each cooking zone. A two-piece grease collection trough directs grease through dual ports into the removable drip pan below for easier cleanup. A fitted stainless steel griddle cover is included to protect the cooking surface when the appliance is not in use.
Key Features
- Liquid Propane configuration
- Echelon Diamond E660i series
- Built-in outdoor gourmet griddle
- Premium black glass control panel
- 304 stainless steel construction
- 30" × 18" cooking surface
- 540 sq. in. total cooking area
- Heavy-duty 3/8" stainless steel griddle plate
- 2 heavy-duty stainless steel burners
- 45,000 BTU total burner output
- Independent two-zone cooking
- 2 back-lit control knobs
- 120VAC/12V Hot Surface Ignition
- Two-piece grease collector trough
- Dual grease-drain ports
- Removable drip pan
- Stainless steel griddle cover included
- Same installation cutout footprint as the E660i grill
- Optional portable cart conversion available
- No hood thermometer
- No rotisserie burner
- No Wi-Fi or Bluetooth
Specifications
Specification |
Details |
|---|---|
| Brand | Fire Magic |
| MPN / SKU | E660I-1T4P |
| Series | Echelon Diamond E660i |
| Product Type | Built-In Gourmet Griddle |
| Fuel Type | Liquid Propane |
| Installation | Built-In |
| Control Panel | Black Glass |
| Exterior Material | 304 Stainless Steel |
| Main Burners | 2 |
| Main Burner Material | Stainless Steel |
| Total Burner Output | 45,000 BTU |
| Cooking Zones | 2 |
| Cooking Surface | 30" × 18" |
| Cooking Area | 540 sq. in. |
| Griddle Plate Material | Stainless Steel |
| Griddle Plate Thickness | 3/8" |
| Ignition | Hot Surface |
| Electrical | 120VAC |
| Control Knobs | 2 Back-Lit Knobs |
| Grease Collection | Dual Trough / Drip Pan |
| Stainless Steel Griddle Cover | Included |
| Thermometer | None |
| Rear Burner | No |
| Rotisserie Kit | No |
| Wi-Fi / Bluetooth | No |
| Cutout Width | 31¼" |
| Cutout Depth | 23½" |
| Cutout Height | 11½" |
| Shipping Weight | 160 lb |
| Shipping Carton | 38¾"L × 31½"W × 16"H |
| Optional Protective Cover | 3517-5F |
Exact-model sources confirm the two-burner, 45,000-BTU configuration, while current installation data specifies the 31¼" × 23½" × 11½" cutout.
