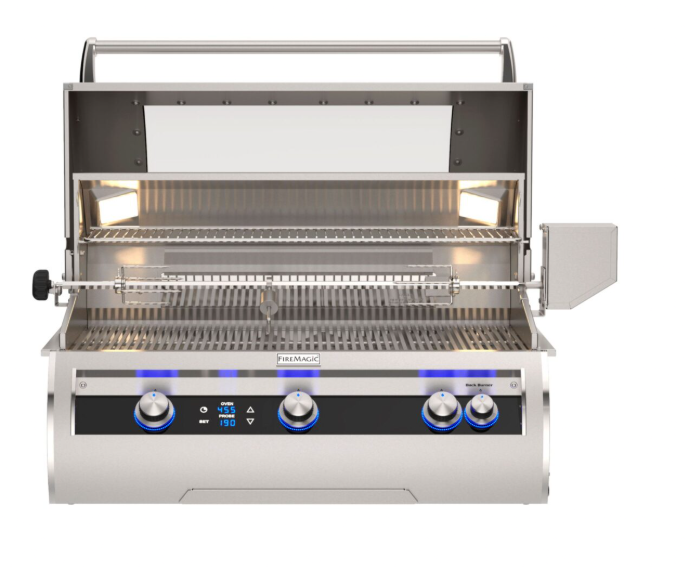

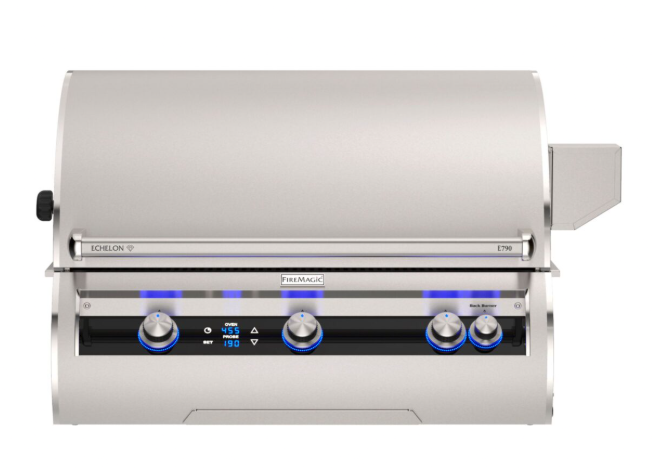

Fire Magic Echelon Diamond E790i 40-Inch Built-In Gas Grill with Digital Thermometer
- Free shipping on orders over $400*
The Fire Magic Echelon Diamond E790i Built-In Gas Grill combines premium stainless steel construction, powerful cooking performance, and advanced digital controls for a high-end outdoor kitchen. Available in Natural Gas or Liquid Propane, the E790i features a spacious 36" x 22" cooking surface providing 792 square inches of primary grilling area, plus a 36" x 8" warming rack with another 288 square inches.
Fire Magic equips the E790i with heavy-duty 1/4-inch-thick cast 304 stainless steel burners, patented Diamond Sear cooking grids, Flavor Grids, and a recessed infrared backburner. The digital model adds an underglass electronic thermometer with integrated smart technology, smartphone monitoring, and a digital meat probe.
For greater cooking versatility, the E790i can be ordered with a factory-installed infrared sear burner in the left-hand position. Fire Magic's current catalog identifies the standard burner configuration with E and instructs customers to change that character to L when selecting the left-side infrared burner.
The E790i is also available with Fire Magic's Magic View Window, made from heat-resistant transparent ceramic glass and designed to let you monitor food without opening the hood and losing cooking heat. The infrared sear burner and Magic View Window can also be combined in the same grill configuration.
Configuration & SKU Matrix
Grill Configuration |
Natural Gas SKU |
Liquid Propane SKU |
|---|---|---|
| Standard | E790i-9E1N | E790i-9E1P |
| Infrared Burner – Left Side | E790i-9L1N | E790i-9L1P |
| Magic View Window | E790i-9E1N-W | E790i-9E1P-W |
| Infrared Burner – Left Side + Magic View Window | E790i-9L1N-W | E790i-9L1P-W |
Fire Magic's catalog states that Echelon models are available in natural gas or propane—N changes to P for propane—and that the factory-installed left infrared burner is designated by changing E to L. The manufacturer directly lists E790i-9E1N-W as the digital Magic View Window model.
Shopify Variant Setup
Option 1 — Fuel Type
- Natural Gas
- Liquid Propane
Option 2 — Grill Configuration
- Standard
- Infrared Burner – Left Side
- Magic View Window
- Infrared Burner – Left Side + Magic View Window
This creates 8 Shopify variants, each using its exact fuel/configuration SKU.
Key Features
- Fire Magic flagship Echelon Diamond Series
- Premium built-in outdoor gas grill
- Natural Gas and Liquid Propane options
- Four available fuel/configuration combinations per fuel
- 36" x 22" primary cooking surface
- 792 sq. in. primary cooking area
- 36" x 8" warming rack
- 288 sq. in. warming area
- Heavy-duty 1/4"-thick cast 304 stainless steel burners
- Optional factory-installed infrared sear burner in left-hand position
- Patented Diamond Sear stainless steel cooking grids
- Flavor Grid heat-distribution system
- Digital Underglass Thermometer
- Integrated smart technology
- Smartphone remote temperature monitoring
- Digital meat probe
- Modern black glass control panel
- Digital touchscreen operation
- Two internal halogen lights
- Recessed infrared backburner
- Optional Magic View Window
- Double-wall 304 stainless steel hood
- Back-lit control knobs
- Hot-surface ignition
- Large-capacity drip tray with ball-bearing glides
- Charcoal/smoker basket available as part of the E790 system
Specifications
Specification |
Details |
|---|---|
| Brand | Fire Magic |
| Series | Echelon Diamond |
| Model Family | E790i |
| Product Type | Built-In Gas Grill |
| Size Class | 40-Inch |
| Fuel Options | Natural Gas / Liquid Propane |
| Main Burner Type | Cast 304 Stainless Steel |
| Burner Thickness | 1/4" |
| Optional Sear Burner | Infrared, Left-Side Position |
| Backburner | Recessed Infrared |
| Backburner Output | 13,000 BTU |
| Primary Cooking Surface | 36" W x 22" D |
| Primary Cooking Area | 792 sq. in. |
| Warming Rack | 36" W x 8" D |
| Warming Area | 288 sq. in. |
| Cooking Grids | Diamond Sear Stainless Steel |
| Thermometer | Digital Underglass |
| Smart Monitoring | Yes |
| Digital Meat Probe | Yes |
| Control Panel | Black Glass Touchscreen |
| Interior Lights | 2 Halogen |
| Ignition | Hot Surface |
| Magic View Window | Optional |
| Cutout Width | 37" |
| Cutout Depth | 23-1/2" |
| Cutout Height | 11-1/2" |
Fire Magic's current live product page lists 96,000 BTUs for the main burners, while the manufacturer's current catalog lists 90,000 BTUs for the same E790i-9E1N. Because Fire Magic's own current sources conflict, I would avoid putting the main-burner BTU figure in the Shopify title or meta description until the exact production-year specification is confirmed. Both sources agree on the 792-sq.-in. cooking surface, 288-sq.-in. warming rack, 13,000-BTU backburner, and 37" x 23-1/2" x 11-1/2" cutout.
Configuration Details
Standard — 9E1
Uses Fire Magic's standard cast stainless steel main burners with the Digital Underglass Thermometer. Select E790i-9E1N for Natural Gas or E790i-9E1P for Propane.
Infrared Burner – Left Side — 9L1
Replaces the standard burner in the left-hand position with a factory-installed infrared sear burner. Select E790i-9L1N for Natural Gas or E790i-9L1P for Propane. Fire Magic's model-number documentation identifies L as one infrared burner on the left with the remaining burners being standard cast burners.

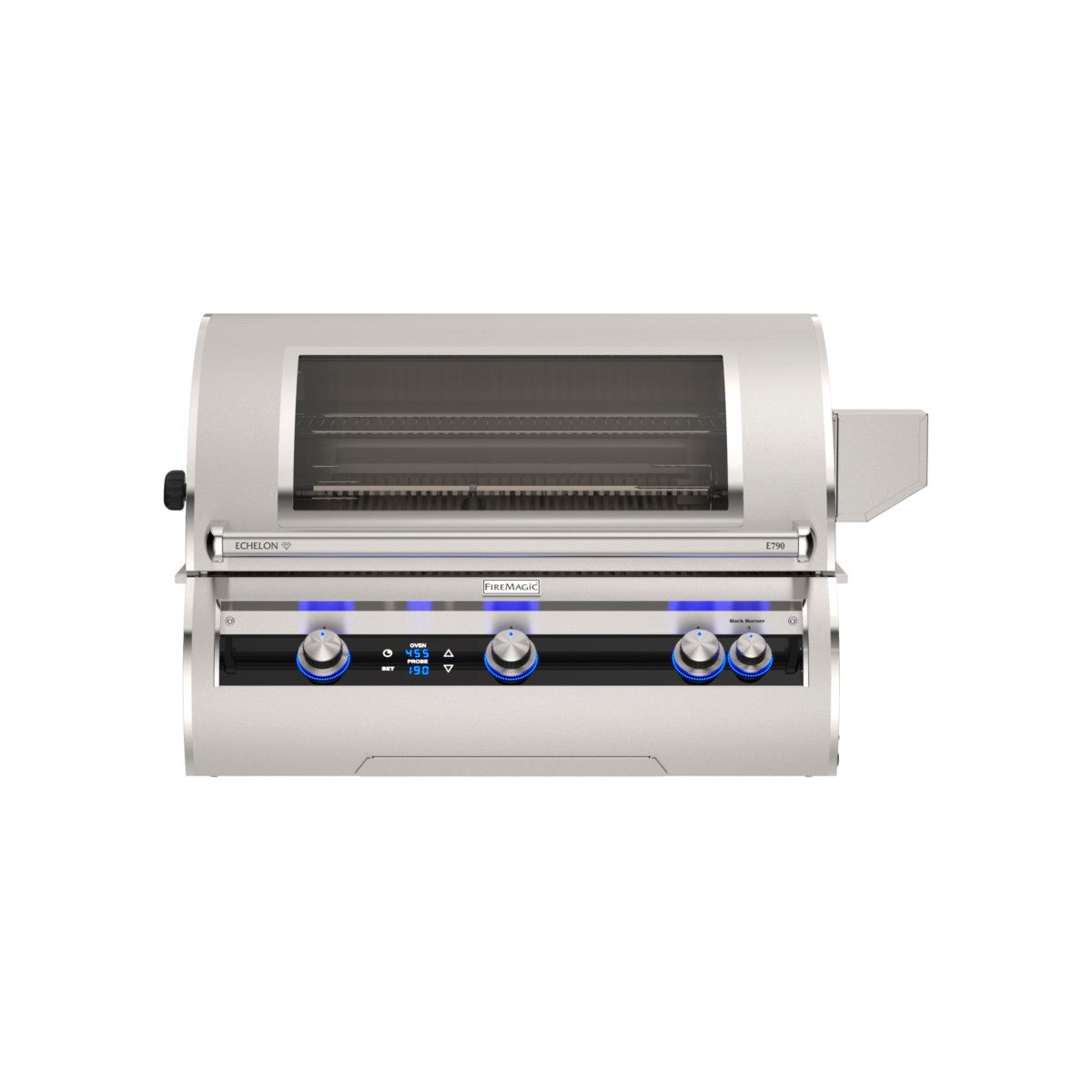

Magic View Window — 9E1-W
Retains the standard cast-burner configuration while adding the Magic View Window. Select E790i-9E1N-W for Natural Gas or E790i-9E1P-W for Propane.
Infrared Burner + Magic View Window — 9L1-W
Combines the factory-installed left-side infrared sear burner with the Magic View Window. Select E790i-9L1N-W for Natural Gas or E790i-9L1P-W for Propane. Fire Magic's catalog establishes both configuration codes, while its model-number guide confirms the left-infrared L designation.
Complete SKU Matrix
Configuration |
Natural Gas |
Liquid Propane |
|---|---|---|
| Standard | E790i-9E1N |
E790i-9E1P |
| Left Infrared Burner | E790i-9L1N |
E790i-9L1P |
| Magic View Window | E790i-9E1N-W |
E790i-9E1P-W |
| Left Infrared + Magic View Window | E790i-9L1N-W |
E790i-9L1P-W |
Size Naming Note
For this listing, I recommend 40-Inch rather than 36-inch or 37-inch. Fire Magic's current Product Specifications Guide officially categorizes the E790i as a 40" Built-In Grill. The three numbers refer to different measurements:
- 40-inch — current Fire Magic size-class designation
- 36-inch — actual cooking-surface width
- 37-inch — required cutout width
