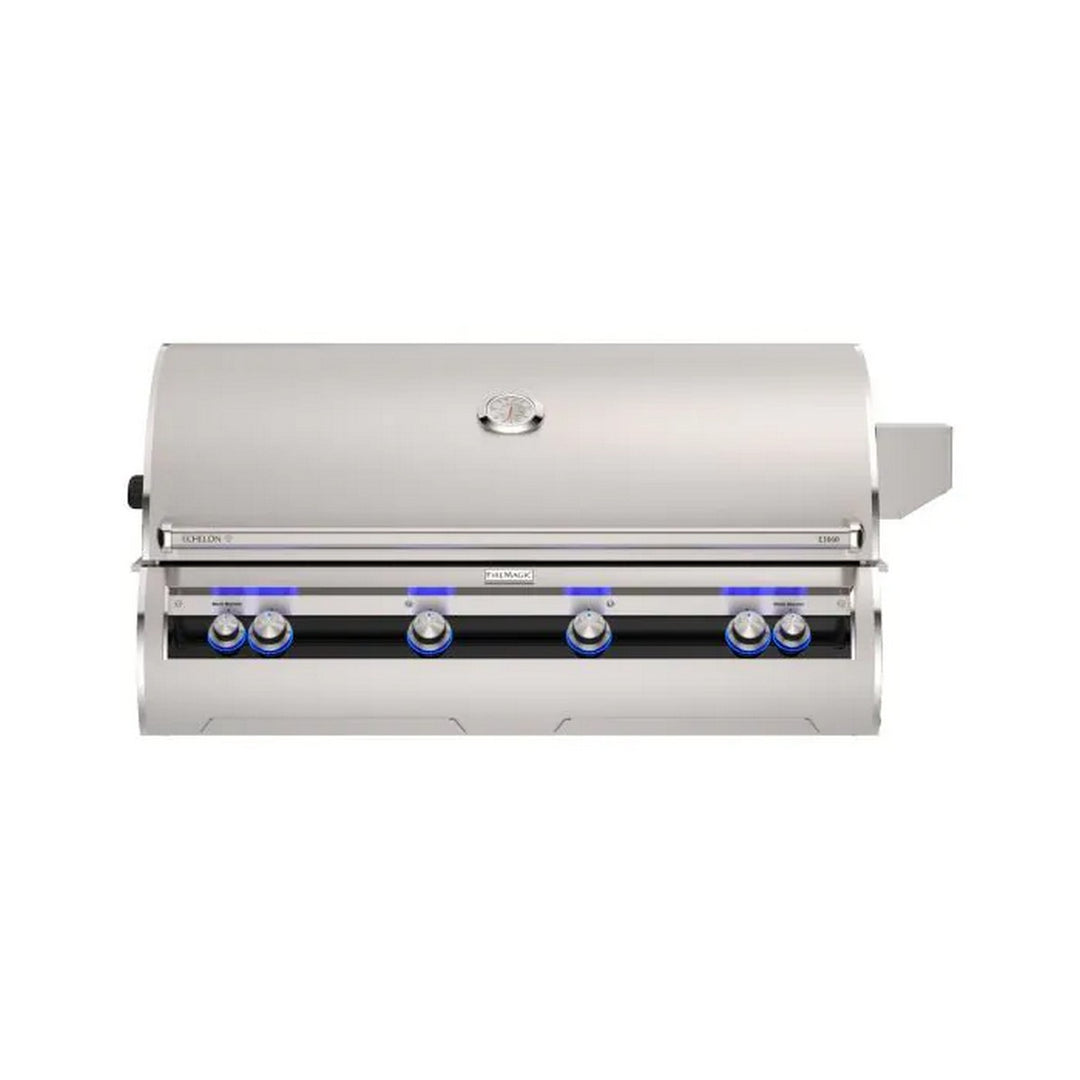

Fire Magic Echelon Diamond E1060I 50-Inch Built-In Propane Grill with Infrared Burner & Analog Thermometer
- Free shipping on orders over $400*
Bring premium grilling performance to your outdoor kitchen with the Fire Magic Echelon Diamond E1060I-9LAP Built-In Propane Grill. This large-format E1060i combines an expansive cooking surface with an analog thermometer, factory-installed left-side infrared burner, Diamond Sear cooking grids, cast stainless steel burners, and a high-performance rotisserie system.
The E1060i features a 48 x 22-inch cooking surface providing 1,056 square inches of primary grilling space. Its main burner system delivers 112,000 BTU, while two high-efficiency backburners and the included rotisserie kit provide versatile roasting capability. Fire Magic also equips the E1060 platform with Diamond Sear cooking grids, hot-surface ignition, angled interior halogen lights, and back-lit control knobs.
This exact E1060I-9LAP configuration operates on Liquid Propane and features a factory-installed infrared burner in the left-side main-burner position for high-heat searing. Fire Magic’s 2026 configuration table confirms that the analog 9LAN(P) models include the infrared burner but do not include the Magic View Window.
With its stainless steel construction, large cooking area, infrared searing capability, rotisserie system, and premium Fire Magic cooking components, the E1060I-9LAP is designed as a high-performance centerpiece for built-in outdoor kitchens.
Key Features
- Echelon Diamond E1060i: Premium large-format Fire Magic built-in grill
- Liquid Propane Configuration: E1060I-9LAP is configured for LP
- Analog Thermometer: Provides traditional temperature monitoring
- Left-Side Infrared Burner: Factory-installed infrared main burner for high-heat searing
- 1,056 Sq. In. Primary Cooking Area: Spacious 48 x 22-inch grilling surface
- 112,000 BTU Main Burner System: High-output cooking performance
- Two High-Efficiency Backburners: Designed for rotisserie cooking
- 22,000 BTU Backburner Output: Provides dedicated rotisserie heat
- Rotisserie Kit Included: Expands cooking versatility
- Diamond Sear Cooking Grids: Premium Fire Magic cooking-grid system
- Cast Stainless Steel Burners: Durable high-performance burner construction
- Hot Surface Ignition: 120 VAC / 12-volt ignition system
- Angled Interior Halogen Lights: Illuminate the cooking surface
- Back-Lit Control Knobs: Improve visibility during nighttime grilling
- Stainless Steel Construction: Premium outdoor-kitchen design
- No Magic View Window: This exact model is the non-window configuration
- Built-In Installation: Designed for integration into an outdoor kitchen island
The live product listing confirms the four-burner built-in configuration, stainless steel finish, 112,000-BTU main burner output, 22,000-BTU rotisserie burner output, and 48 x 22-inch cooking surface.
Specifications
| Specification | Details |
|---|---|
| Brand | Fire Magic |
| MPN / SKU | E1060I-9LAP |
| Series | Echelon Diamond |
| Product Type | Built-In Gas Grill |
| Fuel Type | Liquid Propane (LP) |
| Installation Type | Built-In |
| Number of Main Burners | 4 |
| Primary Cooking Surface | 48" W x 22" D |
| Primary Cooking Area | 1,056 sq. in. |
| Main Burner Output | 112,000 BTU |
| Backburners | 2 High-Efficiency |
| Backburner Output | 22,000 BTU Total |
| Thermometer | Analog |
| Left-Side Infrared Main Burner | Yes |
| Magic View Window | No |
| Rotisserie Kit | Included |
| Cooking Grids | Diamond Sear |
| Main Burner Material | Cast Stainless Steel |
| Ignition | 120 VAC / 12V Hot Surface |
| Interior Lighting | Angled Halogen Lights |
| Back-Lit Control Knobs | Yes |
| Finish | Stainless Steel |
| Overall Width | 50" |
| Overall Depth | 23.5" |
| Overall Height | 27" |
| Cutout Width | 50" |
| Cutout Depth | 23.5" |
| Cutout Height | 11.5" |
| Shipping Weight | 350 lbs. |
| Carton Dimensions | 60.25" L x 32.5" W x 33" H |
| Optional Cover | 3648F |
The live product page specifies 50-inch width, 23.5-inch depth, 27-inch height, four main burners, and a 50 x 23.5 x 11.5-inch installation cutout.
Fire Magic’s 2026 documentation specifies a 350-lb shipping weight, 60.25 x 32.5 x 33-inch shipping carton, and optional 3648F cover for the E1060i analog built-in series.
