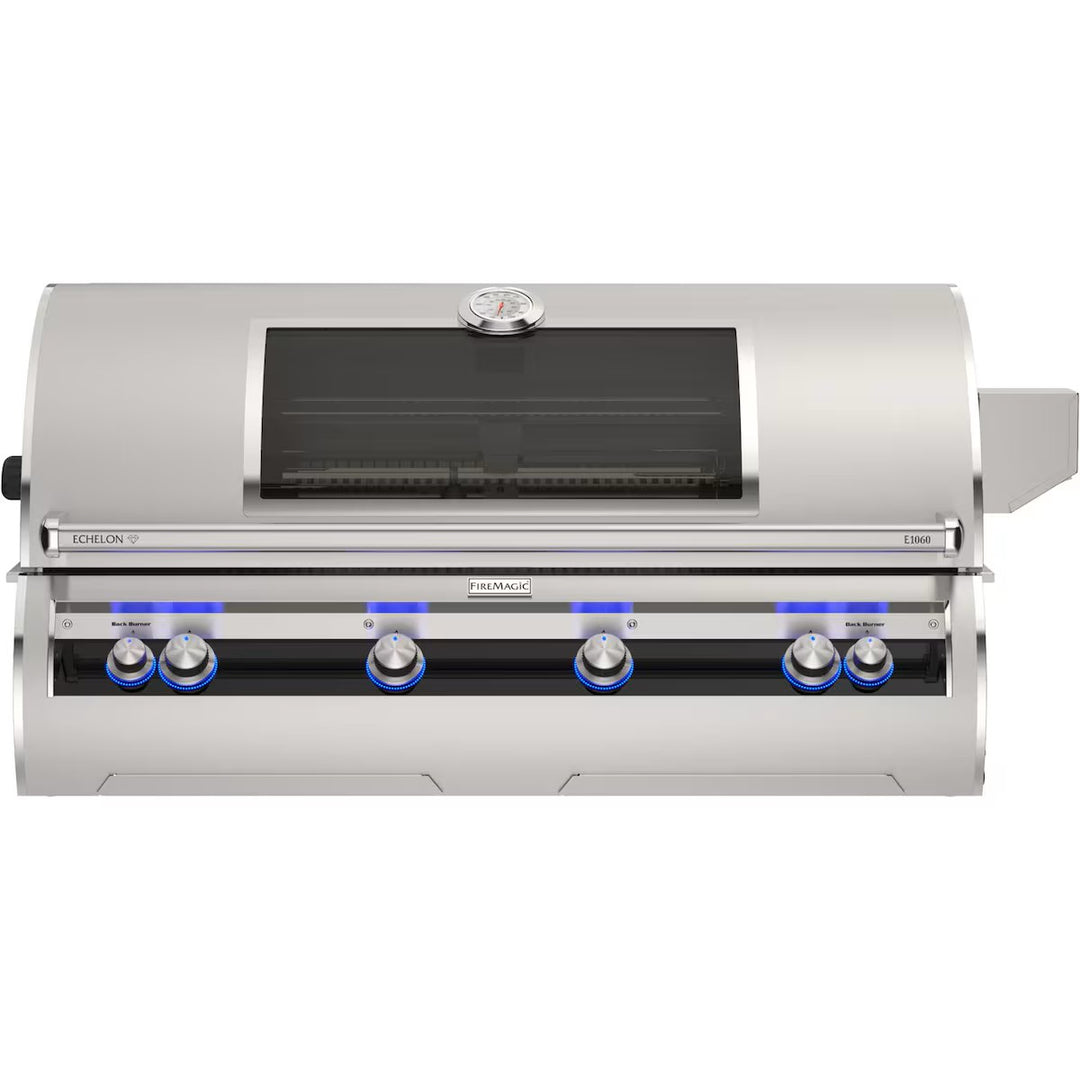

Fire Magic Echelon Diamond E1060I 50-Inch Built-In Propane Gas Grill with Infrared Burner, Magic View Window & Analog Thermometer

Experience premium outdoor cooking with the Fire Magic Echelon Diamond E1060I-9LAP-W Built-In Propane Gas Grill. Designed as a flagship built-in grilling system, this E1060i configuration combines an expansive 48 x 22-inch cooking surface with a factory-installed left-side infrared burner, Magic View Window, analog temperature monitoring, Diamond Sear cooking grids, and a rotisserie system.

This exact E1060I-9LAP-W configuration operates on Liquid Propane and features both the left-side infrared burner and Magic View Window. Fire Magic's current model chart identifies the analog E1060i-9LAN(P)-W configuration as having both options, with the propane selection designated by P.

The E1060i offers a generous 48 x 22-inch cooking area totaling 1,056 square inches. Its primary burner system is rated at 112,000 BTU, while the rotisserie burner system delivers 22,000 BTU. Cast stainless steel burners work with Fire Magic's Diamond Sear cooking grids to provide a premium grilling platform for everything from high-temperature searing to everyday outdoor cooking.

Unlike digital E1060i configurations, this model uses an analog thermometer for traditional temperature monitoring. The Magic View Window provides convenient visibility into the cooking chamber, while the factory-installed infrared burner on the left side creates a dedicated high-heat searing zone.

Key Features

• Echelon Diamond E1060i: Premium flagship Fire Magic built-in grilling platform
• Liquid Propane Configuration: E1060I-9LAP-W is specifically configured for LP
• Analog Thermometer: Traditional temperature monitoring without the digital control system
• Left-Side Infrared Burner: Factory-installed high-heat infrared searing burner
• Magic View Window: Provides visibility into the cooking chamber with the hood closed
• 1,056 Sq. In. Cooking Area: Spacious 48 x 22-inch primary cooking surface
• 112,000 BTU Main Burner System: High-output grilling performance
• 22,000 BTU Rotisserie Burner: Dedicated heat for rotisserie cooking
• Rotisserie Kit: Expands cooking versatility for roasting
• Diamond Sear Cooking Grids: Premium Fire Magic cooking-grid system
• Cast Stainless Steel Burners: Heavy-duty burner construction
• Hot Surface Ignition: 120 VAC / 12-volt ignition system
• Interior Halogen Lights: Angled lighting illuminates the cooking surface
• Back-Lit Control Knobs: Enhances control visibility during evening cooking
• Stainless Steel Construction: Premium outdoor-kitchen design
• Built-In Installation: Designed for integration into a compatible outdoor kitchen island

Fire Magic's 2026 specifications confirm Diamond Sear cooking grids, cast stainless steel burners, two high-efficiency backburners with rotisserie kit, back-lit control knobs, hot-surface ignition, and angled interior halogen lighting for the E1060 platform.

Specifications

KB Authority specifies the 50-inch width, 23.5-inch depth, 27-inch height, 50 x 23.5 x 11.5-inch cutout, four-burner configuration, 112,000-BTU main burner system, and 22,000-BTU rotisserie burner.

Fire Magic's 2026 documentation lists a 350-lb shipping weight, 60¼ x 32½ x 33-inch shipping carton, and optional 3648F cover for the E1060i analog built-in series.
