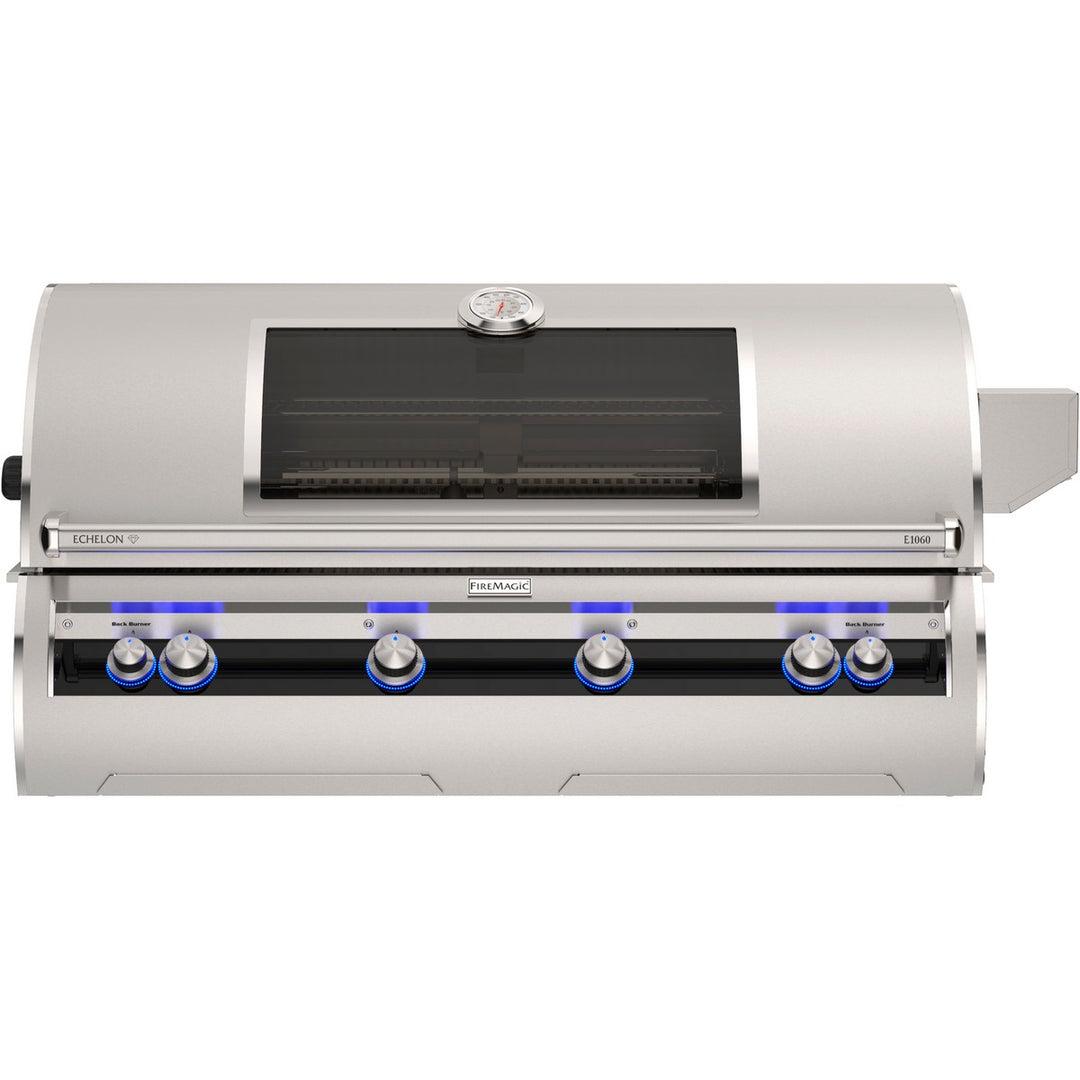

Fire Magic Echelon Diamond E1060I 50-Inch Built-In Propane Grill with Analog Thermometer & Magic View Window

Elevate your outdoor kitchen with the Fire Magic Echelon Diamond E1060I-9EAP-W Built-In Propane Grill. Designed for premium outdoor cooking, this E1060i combines an expansive 48 x 22-inch cooking surface with an analog thermometer, Magic View Window, Diamond Sear cooking grids, cast stainless steel burners, and a high-performance rotisserie system.

The E1060i provides 1,056 square inches of primary cooking space with a 48 x 8-inch warming rack. Its main burner system delivers 112,000 BTU, while the backburner system supplies 22,000 BTU for rotisserie cooking. Fire Magic also specifies a 50 x 23.5 x 11.5-inch cutout for the E1060i platform.

This exact E1060I-9EAP-W configuration operates on Liquid Propane and features the Magic View Window. Fire Magic’s 2026 model chart confirms that E1060i-9EAN(P)-W includes the window but not the optional left-side infrared main burner. The infrared-equipped analog version uses the 9LAN(P) designation instead.

Premium Echelon Diamond equipment includes Diamond Sear cooking grids, cast stainless steel burners, two high-efficiency backburners with rotisserie kit, 120 VAC/12-volt hot-surface ignition, angled interior halogen lights, and back-lit control knobs.

Key Features

• Echelon Diamond E1060i: Premium large-format Fire Magic built-in grilling platform
• Liquid Propane Configuration: E1060I-9EAP-W is configured for LP
• Analog Thermometer: Traditional temperature monitoring
• Magic View Window: Allows food to be monitored while keeping the grill hood closed
• 1,056 Sq. In. Primary Cooking Area: Spacious 48 x 22-inch grilling surface
• 112,000 BTU Main Burner System: High-output primary grilling performance
• 22,000 BTU Backburner System: Dedicated heat for rotisserie cooking
• Two High-Efficiency Backburners: Designed for premium rotisserie performance
• Rotisserie Kit Included: Expands outdoor cooking versatility
• Diamond Sear Cooking Grids: Premium Fire Magic cooking-grid system
• Cast Stainless Steel Burners: Durable high-performance burner construction
• Hot Surface Ignition: 120 VAC / 12-volt ignition system
• Angled Interior Halogen Lights: Illuminates the cooking area
• Back-Lit Control Knobs: Enhances visibility during evening grilling
• Built-In Installation: Designed for integration into an outdoor kitchen island
• Standard Main Burner Configuration: Does not include the optional left-side infrared main burner

Fire Magic confirms the E1060 platform’s Diamond Sear grids, cast stainless steel burners, dual high-efficiency backburners, rotisserie kit, hot-surface ignition, interior halogen lighting, and back-lit controls.

Specifications

Fire Magic specifies a 48 x 22-inch / 1,056-square-inch primary cooking area, 112,000-BTU main burner output, 22,000-BTU backburner output, and 50 x 23.5 x 11.5-inch cutout for the E1060i platform.

The 2026 Fire Magic price list specifies a 350-lb shipping weight, 60.25 x 32.5 x 33-inch shipping carton, and optional 3648F cover for the E1060i analog built-in series.
