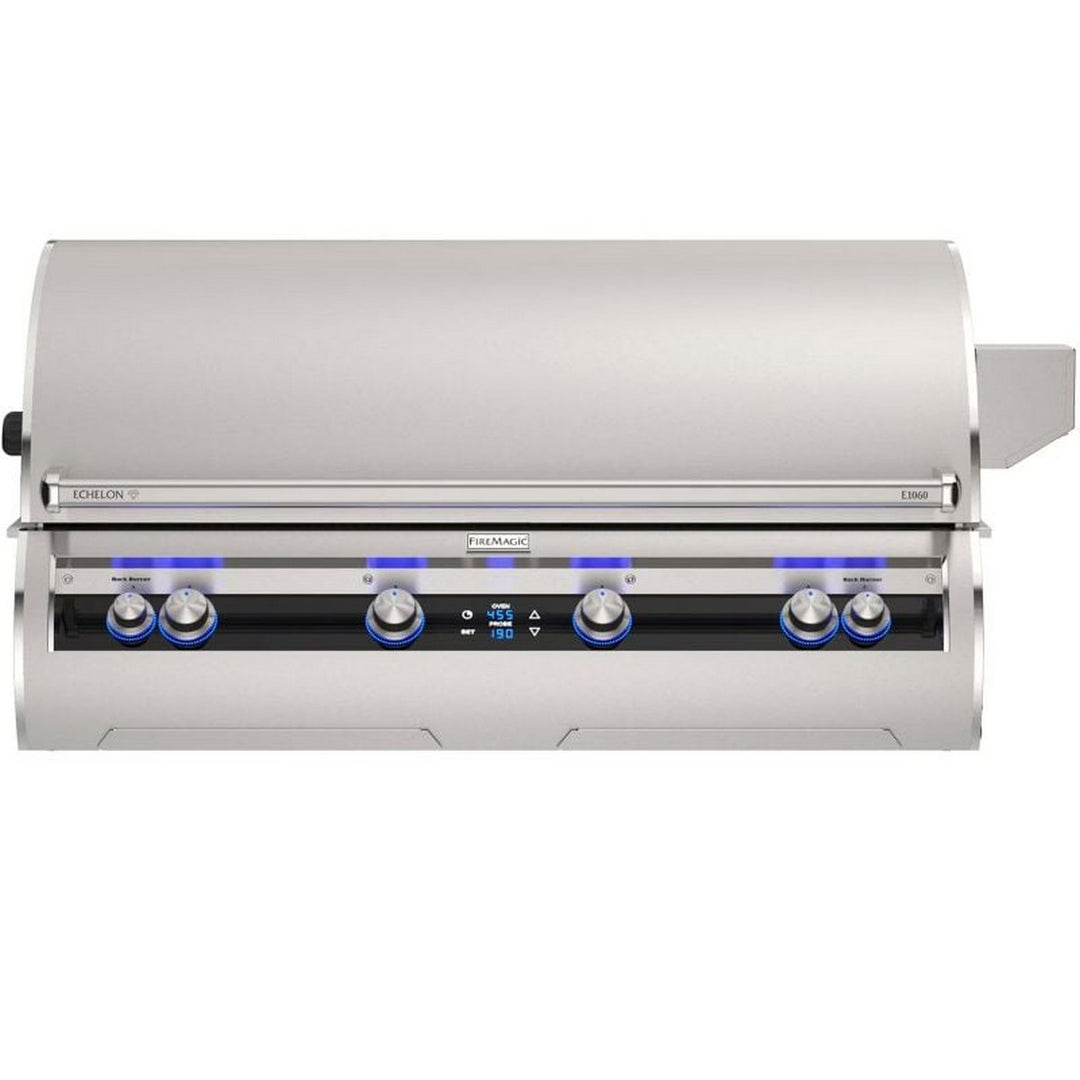

Fire Magic Echelon Diamond E1060I 50-Inch Built-In Natural Gas Grill with Infrared Burner & Digital Thermometer
- Free shipping on orders over $400*
Experience premium outdoor cooking with the Fire Magic Echelon Diamond E1060I-9L1N Built-In Natural Gas Grill. Designed for high-performance outdoor kitchens, this flagship E1060i configuration combines an expansive 48 x 22-inch cooking surface with a factory-installed left-side infrared burner, digital temperature monitoring, Diamond Sear cooking grids, cast stainless steel burners, and a rotisserie system.
The E1060 platform provides 1,056 square inches of primary cooking space and features two high-efficiency backburners with a rotisserie kit. Fire Magic also equips the grill with Diamond Sear cooking grids, 120 VAC/12-volt hot-surface ignition, angled interior halogen lights, back-lit control knobs, and cast stainless steel burners.
This exact E1060I-9L1N model operates on Natural Gas and includes a factory-installed infrared burner on the left side. Fire Magic’s current configuration table identifies E1060i-9L1N(P) as the digital thermometer version with infrared selected and Magic View Window unselected. The manufacturer’s ordering notes specify N for Natural Gas and P for Propane.
The digital Echelon configuration provides advanced temperature monitoring while the dedicated infrared burner creates a high-heat searing zone. Because this model does not carry the -W suffix, it should not be advertised as having the Magic View Window.
Key Features
- Echelon Diamond E1060i: Premium large-format Fire Magic built-in grilling platform
- Natural Gas Configuration: E1060I-9L1N is configured for Natural Gas
- Digital Thermometer: Electronic temperature monitoring
- Left-Side Infrared Burner: Factory-installed infrared burner for high-heat searing
- No Magic View Window: This exact configuration is the non-window version
- 1,056 Sq. In. Primary Cooking Area: Large 48 x 22-inch grilling surface
- 112,000 BTU Main Burner System: High-output primary cooking performance
- 22,000 BTU Backburner Output: Dedicated rotisserie cooking power
- Two High-Efficiency Backburners: Designed for rotisserie cooking
- Rotisserie Kit Included: Adds versatile roasting capability
- Diamond Sear Cooking Grids: Premium Fire Magic cooking-grid system
- Cast Stainless Steel Burners: Durable premium burner construction
- Hot Surface Ignition: 120 VAC / 12-volt ignition system
- Angled Interior Halogen Lights: Illuminate the cooking surface
- Back-Lit Control Knobs: Improve visibility during evening grilling
- Built-In Configuration: Designed for installation into an outdoor kitchen island
Fire Magic’s 2026 documentation confirms the 48 x 22-inch cooking area, dual high-efficiency backburners and rotisserie kit, Diamond Sear grids, cast stainless steel burners, hot-surface ignition, interior halogen lighting, and back-lit control knobs on the E1060 platform.
Specifications
| Specification | Details |
|---|---|
| Brand | Fire Magic |
| MPN / SKU | E1060I-9L1N |
| Series | Echelon Diamond |
| Product Type | Built-In Gas Grill |
| Fuel Type | Natural Gas |
| Installation Type | Built-In |
| Primary Cooking Surface | 48" W x 22" D |
| Primary Cooking Area | 1,056 sq. in. |
| Main Burner Output | 112,000 BTU |
| Backburners | 2 High-Efficiency |
| Backburner Output | 22,000 BTU Total |
| Thermometer | Digital |
| Left-Side Infrared Main Burner | Yes |
| Magic View Window | No |
| Rotisserie Kit | Included |
| Cooking Grids | Diamond Sear |
| Main Burner Material | Cast Stainless Steel |
| Ignition | 120 VAC / 12V Hot Surface |
| Interior Lighting | Angled Halogen Lights |
| Back-Lit Control Knobs | Yes |
| Cutout Width | 50" |
| Cutout Depth | 23.5" |
| Cutout Height | 11.5" |
| Shipping Weight | 350 lbs. |
| Carton Dimensions | 60.25" L x 32.5" W x 33" H |
| Optional Cover | 3648F |
Fire Magic’s 2026 documentation specifies 350 lbs. shipping weight, a 60¼ x 32½ x 33-inch shipping carton, and optional cover 3648F for the E1060i digital built-in series.
