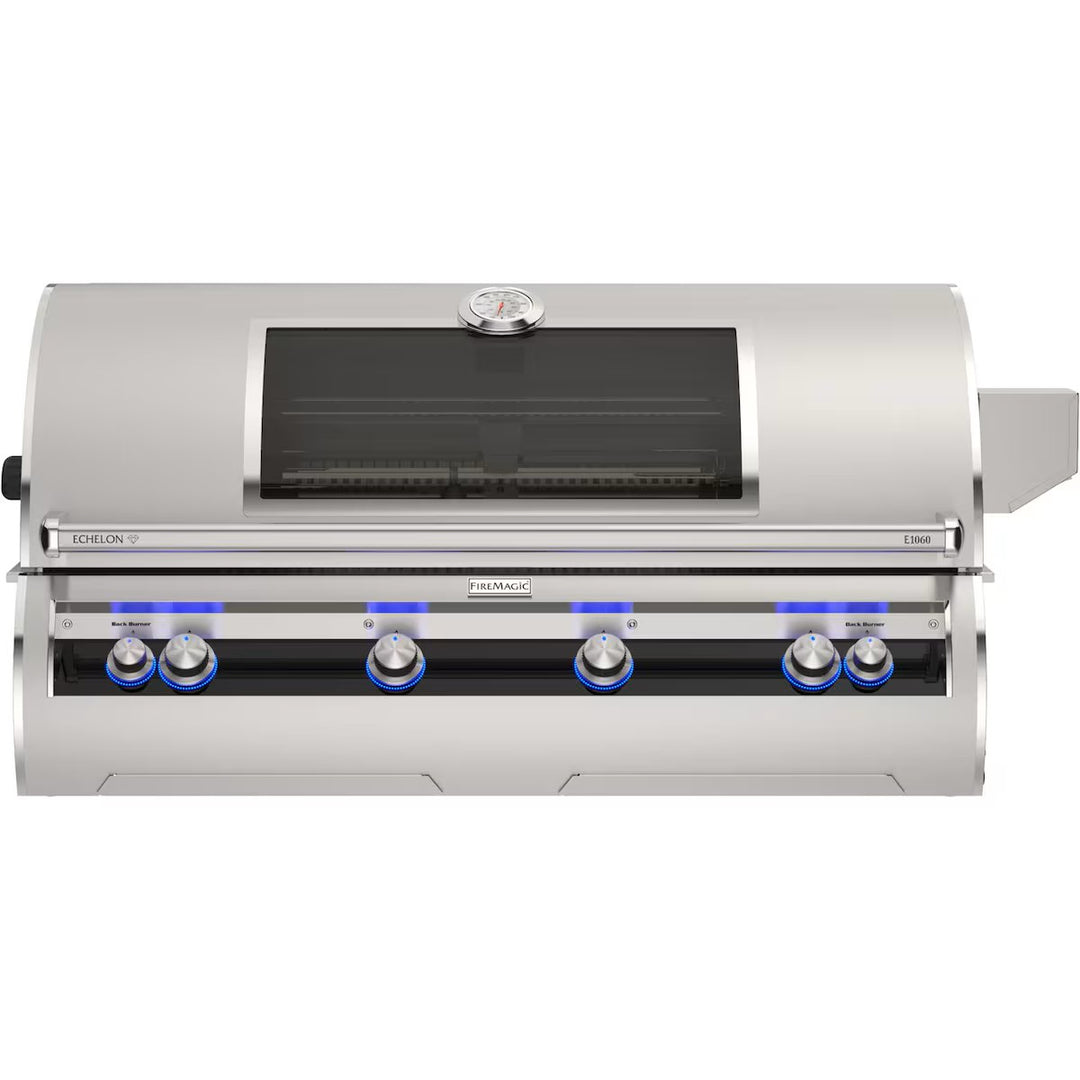

Fire Magic Echelon Diamond E1060I 50-Inch Built-In Natural Gas Grill with Infrared Burner, Magic View Window & Analog Thermometer

Upgrade your outdoor kitchen with the Fire Magic Echelon Diamond E1060I-9LAN-W Built-In Natural Gas Grill. This premium E1060i configuration combines a spacious 48 x 22-inch primary cooking surface with a factory-installed left-side infrared sear burner, Magic View Window, analog thermometer, Diamond Sear cooking grids, and a high-performance rotisserie system.

The E1060i provides 1,056 square inches of primary cooking space along with a 48 x 8-inch warming rack rated at 344 square inches in Fire Magic's current catalog. Its main burner system produces 112,000 BTU, while two high-efficiency backburners deliver a combined 22,000 BTU for rotisserie cooking.

This exact E1060I-9LAN-W model is configured for Natural Gas and includes both premium factory options: the left-side infrared burner and Magic View Window. Fire Magic's 2026 model chart identifies E1060i-9LAN(P)-W as the analog configuration equipped with both features, with N identifying the Natural Gas version.

Premium Echelon Diamond equipment includes cast stainless steel burners, Diamond Sear cooking grids, back-lit control knobs, 120 VAC/12-volt hot-surface ignition, angled interior halogen lighting, and two high-efficiency backburners with rotisserie kit.

Key Features

• Echelon Diamond E1060i: Premium large-format Fire Magic built-in grill
• Natural Gas Configuration: E1060I-9LAN-W is specifically configured for Natural Gas
• Analog Thermometer: Traditional temperature monitoring
• Left-Side Infrared Burner: Factory-installed infrared sear burner for high-temperature cooking
• Magic View Window: Allows food to be viewed while keeping the grill hood closed
• 1,056 Sq. In. Primary Cooking Area: Spacious 48 x 22-inch grilling surface
• 344 Sq. In. Warming Rack: 48 x 8-inch secondary cooking and warming surface
• 112,000 BTU Main Burner System: High-output grilling performance
• 22,000 BTU Backburner Output: Two 11,000 BTU high-efficiency backburners
• Rotisserie Kit Included: Supports versatile rotisserie cooking
• Diamond Sear Cooking Grids: Premium Fire Magic cooking grid system
• Cast Stainless Steel Burners: Durable premium burner construction
• Hot Surface Ignition: 120 VAC / 12-volt ignition system
• Back-Lit Control Knobs: Enhanced visibility for evening grilling
• Interior Halogen Lights: Angled lighting illuminates the cooking area
• Stainless Steel Construction: Designed for premium outdoor kitchen installations
• Built-In Configuration: Integrates into a compatible outdoor kitchen island

Fire Magic's current documentation confirms the 48 x 22-inch cooking surface, Diamond Sear grids, cast stainless steel burners, backburners with rotisserie kit, back-lit knobs, hot-surface ignition, and interior halogen lighting.

Specifications

KB Authority confirms the 50-inch width, 23.5-inch depth, 27-inch overall height, four-burner configuration, 112,000-BTU main burner output, 22,000-BTU rotisserie burner output, and 50 x 23.5 x 11.5-inch cutout.

Fire Magic's 2026 documentation specifies a 350-lb shipping weight, 60¼ x 32½ x 33-inch carton, and optional 3648F cover for the E1060i analog built-in series.
