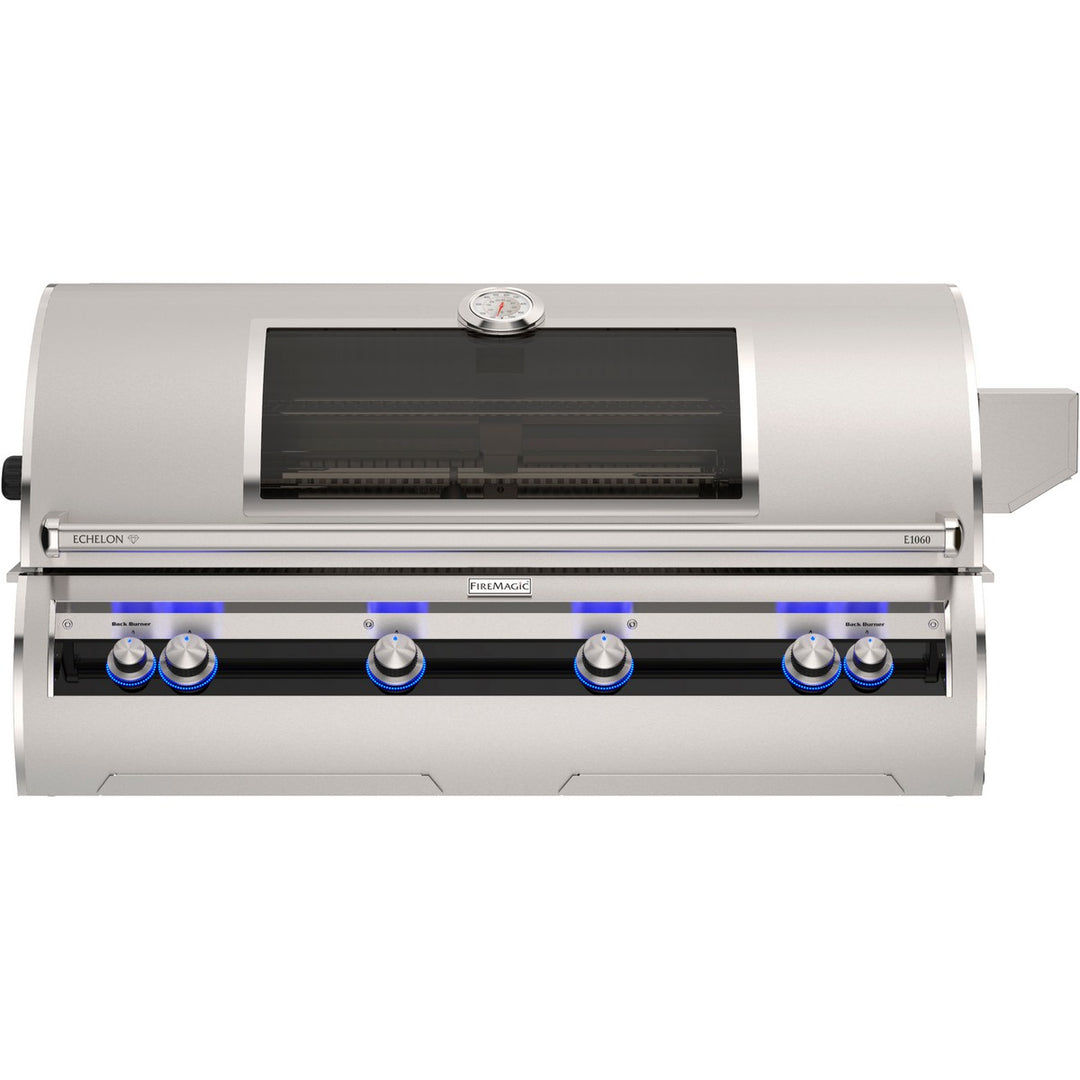

Fire Magic Echelon Diamond E1060I 50-Inch Built-In Natural Gas Grill with Analog Thermometer & Magic View Window
- Free shipping on orders over $400*
Create a premium outdoor cooking centerpiece with the Fire Magic Echelon Diamond E1060I-9EAN-W Built-In Natural Gas Grill. This large-format E1060i combines an expansive cooking surface with an analog thermometer, Magic View Window, Diamond Sear cooking grids, cast stainless steel burners, rotisserie capability, and premium interior lighting.
The E1060i features a 48 x 22-inch primary cooking surface providing 1,056 square inches of grilling space. Fire Magic equips the E1060 platform with two high-efficiency backburners and a rotisserie kit, Diamond Sear cooking grids, cast stainless steel burners, back-lit control knobs, angled interior halogen lights, and 120 VAC/12-volt hot-surface ignition.
This exact E1060I-9EAN-W configuration operates on Natural Gas and uses an analog thermometer. The -W configuration adds the Magic View Window, allowing food to be monitored without repeatedly opening the grill hood. Fire Magic’s current model chart confirms that 9EAN(P)-W does not receive the optional left-side infrared main burner.
Designed for built-in outdoor kitchens, the E1060i combines substantial cooking capacity with premium Fire Magic construction and cooking components. Its standard main-burner configuration makes it distinct from the 9LAN-W Natural Gas model, which substitutes a factory-installed infrared searing burner on the left side.
Key Features
- Echelon Diamond E1060i: Premium large-format Fire Magic built-in grill
- Natural Gas Configuration: E1060I-9EAN-W is configured for Natural Gas
- Analog Thermometer: Traditional temperature monitoring
- Magic View Window: Provides visibility into the cooking chamber with the hood closed
- 1,056 Sq. In. Primary Cooking Area: Spacious 48 x 22-inch grilling surface
- Standard Main Burner Configuration: No optional left-side infrared main burner
- Two High-Efficiency Backburners: Designed for rotisserie cooking
- Rotisserie Kit Included: Adds versatile roasting capability
- Diamond Sear Cooking Grids: Premium Fire Magic cooking-grid system
- Cast Stainless Steel Burners: Durable premium burner construction
- Hot Surface Ignition: 120 VAC / 12-volt ignition system
- Angled Interior Halogen Lights: Illuminate the cooking area
- Back-Lit Control Knobs: Improve visibility during evening grilling
- Stainless Steel Construction: Premium outdoor-kitchen design
- Built-In Installation: Designed for integration into an outdoor kitchen island
Fire Magic’s 2026 specifications confirm the E1060’s 48 x 22-inch cooking area, dual high-efficiency backburners with rotisserie kit, Diamond Sear grids, cast stainless steel burners, hot-surface ignition, halogen lighting, and back-lit controls.
Specifications
| Specification | Details |
|---|---|
| Brand | Fire Magic |
| MPN / SKU | E1060I-9EAN-W |
| Series | Echelon Diamond |
| Product Type | Built-In Gas Grill |
| Fuel Type | Natural Gas |
| Installation Type | Built-In |
| Primary Cooking Surface | 48" W x 22" D |
| Primary Cooking Area | 1,056 sq. in. |
| Main Burner Output | 112,000 BTU |
| Backburners | 2 High-Efficiency |
| Backburner Output | 22,000 BTU Total |
| Thermometer | Analog |
| Magic View Window | Yes |
| Left-Side Infrared Main Burner | No |
| Rotisserie Kit | Included |
| Cooking Grids | Diamond Sear |
| Main Burner Material | Cast Stainless Steel |
| Ignition | 120 VAC / 12V Hot Surface |
| Interior Lighting | Angled Halogen Lights |
| Back-Lit Control Knobs | Yes |
| Finish | Stainless Steel |
| Cutout Width | 50" |
| Cutout Depth | 23.5" |
| Cutout Height | 11.5" |
| Shipping Weight | 350 lbs. |
| Carton Dimensions | 60.25" L x 32.5" W x 33" H |
| Optional Cover | 3648F |
Fire Magic’s 2026 documentation specifies a 350-lb shipping weight, 60¼ x 32½ x 33-inch shipping carton, and optional 3648F cover for the E1060i analog built-in series.
