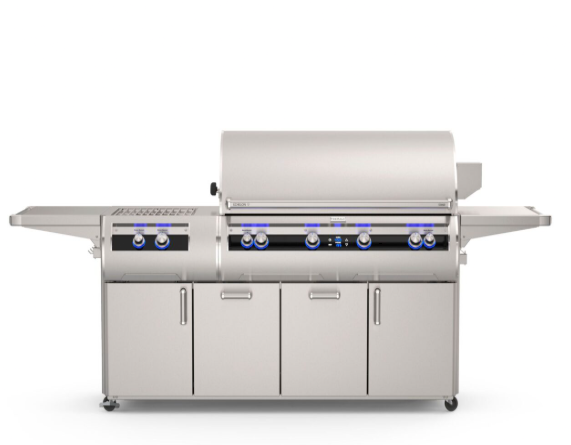

Fire Magic Echelon Diamond E1060s 52-Inch Portable Gas Grill with Digital Thermometer & Power Burner
- Free shipping on orders over $400*
The Fire Magic Echelon Diamond E1060s Portable Gas Grill brings flagship Fire Magic performance to an expansive freestanding cooking station. Available in Natural Gas or Liquid Propane, the E1060s combines cast 304 stainless steel burners, patented Diamond Sear cooking grids, a modern black-glass control panel, digital touchscreen controls, and smart remote-monitoring technology.
Its massive 48" x 22" primary cooking surface provides 1,056 square inches of grilling space, while the 48" x 8" warming rack adds another 384 square inches. Four main burner positions deliver up to 112,000 BTUs, and the recessed infrared backburner system provides another 22,000 BTUs for rotisserie cooking.
Unlike the E1060i built-in grill, the E1060s is a complete portable cooking station with an integrated cart and 60,000 BTU power burner. Fire Magic's current catalog and product specifications confirm the power burner as standard equipment on the E1060s platform.
The E1060s can also be customized for different cooking preferences. Choose the Standard burner configuration, add a factory-installed infrared sear burner in the left-hand position, select the Magic View Window, or combine the left-side infrared burner with the Magic View Window. Fire Magic specifies that changing E to L in the model number denotes the infrared burner option, while -W denotes the window configuration.
Configuration & SKU Matrix
Grill Configuration |
Natural Gas SKU |
Liquid Propane SKU |
|---|---|---|
| Standard | E1060s-9E1N-51 | E1060s-9E1P-51 |
| Infrared Burner – Left Side | E1060s-9L1N-51 | E1060s-9L1P-51 |
| Magic View Window | E1060s-9E1N-51-W | E1060s-9E1P-51-W |
| Infrared Burner – Left Side + Magic View Window | E1060s-9L1N-51-W | E1060s-9L1P-51-W |
Fire Magic explicitly states that all Echelon models are available in either natural gas or propane—change N to P for propane—and that the optional factory-installed infrared sear burner occupies the left-hand position, changing E to L in the model number.
Shopify Variant Setup
Option 1: Fuel Type
- Natural Gas
- Liquid Propane
Option 2: Grill Configuration
- Standard
- Infrared Burner – Left Side
- Magic View Window
- Infrared Burner – Left Side + Magic View Window
This produces 8 individual Shopify variants, each with its own manufacturer SKU.
Key Features
- Flagship Fire Magic Echelon Diamond portable grill
- Natural Gas and Liquid Propane options
- Four main burner positions
- 1/4"-thick cast 304 stainless steel burners
- Optional factory-installed infrared sear burner in the left-hand position
- Optional Magic View Window
- 48" x 22" primary cooking surface
- 1,056 sq. in. primary cooking area
- 48" x 8" warming rack
- 384 sq. in. warming area
- 112,000 BTU standard main burner output
- 22,000 BTU infrared backburner output
- Integrated 60,000 BTU power burner
- Patented Diamond Sear cooking grids
- Flavor Grid heat-distribution system
- Digital Underglass Thermometer
- Black-glass digital control panel
- Digital touchscreen operation
- Smart remote monitoring
- Digital meat probe
- Back-lit Comfort Touch control knobs
- Three angled internal halogen lights
- Hot-surface ignition
- Recessed infrared backburner
- Heavy-gauge adjustable warming rack
- Large ball-bearing drip tray
- Portable cart with substantial prep and storage space
Specifications
Specification |
Details |
|---|---|
| Brand | Fire Magic |
| Series | Echelon Diamond |
| Model Family | E1060s |
| Product Type | Portable / Freestanding Gas Grill |
| Fuel Options | Natural Gas / Liquid Propane |
| Standard Main Burners | 4 Cast Stainless Steel |
| Main Burner Material | 1/4" Thick Cast 304 Stainless Steel |
| Main Burner Output | 112,000 BTU |
| Optional Infrared Burner | Left-Side Position |
| Backburner Output | 22,000 BTU |
| Power Burner Output | 60,000 BTU |
| Primary Cooking Surface | 48" W x 22" D |
| Primary Cooking Area | 1,056 sq. in. |
| Warming Rack | 48" W x 8" D |
| Warming Area | 384 sq. in. |
| Cooking Grids | Diamond Sear Stainless Steel |
| Thermometer | Digital Underglass |
| Smart Monitoring | Yes |
| Meat Probe | Included |
| Control Panel | Black Glass Digital Touchscreen |
| Interior Lights | 3 Halogen Lights |
| Ignition | Hot Surface |
| Magic View Window | Optional |
| Power Requirement | 110V |
| Grill Height – Lid Open | 61" |
| Grill Height – Lid Closed | 52" |
| Height to Shelf | 37" |
| Cart Base Width | 77-3/4" |
| Overall Width – Shelves Up | 117" |
| Overall Width – Shelves Down | 87-3/4" |
| Width – One Shelf Up | 96-3/4" |
| Cart Base Depth | 26" |
| Maximum Outer Depth | 30-1/2" |
Fire Magic's current Product Specifications Guide classifies the E1060s as a 52" Portable Grill. Its overall width reaches 117 inches with both side shelves raised, while folding both shelves down reduces the width to 87-3/4 inches.
Configuration Details
Standard — 9E1
Uses Fire Magic's standard cast stainless steel main burners. Choose N for Natural Gas or P for Liquid Propane.
Infrared Burner – Left Side — 9L1
Replaces the standard burner in the left-hand position with Fire Magic's factory-installed infrared sear burner. Fire Magic instructs customers to change the E to L in the model number for this configuration.

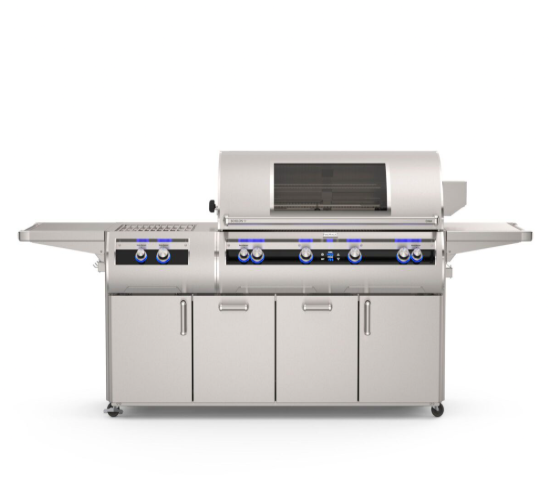

Magic View Window — 9E1-W
Retains the standard main-burner arrangement while adding the Magic View Window, which allows food to be monitored without opening the hood and losing cooking heat.
Infrared Burner + Magic View Window — 9L1-W
Combines the factory-installed left-side infrared sear burner with the Magic View Window, providing both dedicated high-temperature searing capability and hood-through food viewing.
Complete SKU Matrix
Configuration |
Natural Gas |
Propane |
|---|---|---|
| Standard | E1060s-9E1N-51 |
E1060s-9E1P-51 |
| Left Infrared | E1060s-9L1N-51 |
E1060s-9L1P-51 |
| Magic View Window | E1060s-9E1N-51-W |
E1060s-9E1P-51-W |
| Left Infrared + Window | E1060s-9L1N-51-W |
E1060s-9L1P-51-W |
