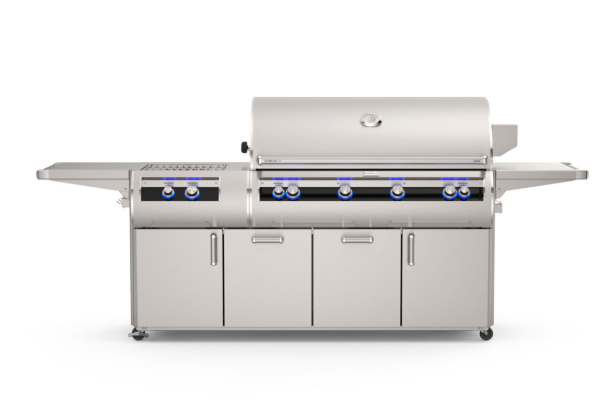

Fire Magic Echelon Diamond E1060s A-Series 52-Inch Portable Gas Grill with Analog Thermometer & Power Burner

The Fire Magic Echelon Diamond E1060s A-Series Portable Gas Grill delivers flagship Fire Magic cooking performance in a complete freestanding outdoor cooking station. Available for Natural Gas or Liquid Propane, this A-Series configuration combines Fire Magic's heavy-duty cast stainless steel burners, Diamond Sear cooking grids, black glass styling, analog temperature monitoring, rotisserie capability, and an integrated high-output power burner. Fire Magic officially identifies the fuel-selectable base model as E1060s-9EAN(P)-51.

The E1060s provides a massive 48" x 22" cooking surface with 1,056 square inches of primary grilling area. Its main burner system produces 112,000 BTUs, while the recessed infrared backburner supplies another 22,000 BTUs for rotisserie cooking. A 48" x 8" warming rack adds 384 square inches of secondary cooking space.

Unlike the E1060i built-in model, the E1060s incorporates an integrated 60,000 BTU power burner, giving the portable cooking station additional capacity for woks, stockpots, seafood boils, side dishes, and other high-output cooking applications.

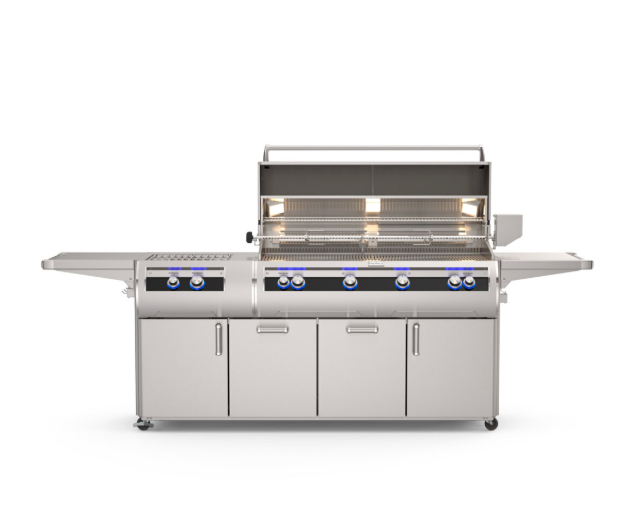

The A-Series model features a large analog thermometer with a polished stainless steel bezel, positioned at a forward angle for easier viewing. Fire Magic also equips the E1060 with three internal halogen lights, back-lit Comfort Touch control knobs, hot-surface ignition, Flavor Grids, and its recessed infrared backburner system.

Customers can select the Standard burner configuration, add a factory-installed infrared sear burner in the left-hand position, add the Magic View Window, or combine the left-side infrared burner and Magic View Window. Fire Magic confirms that the Magic View Window is optional across Echelon grills and allows food to be monitored without opening the hood and losing heat.

Configuration & SKU Matrix

Shopify Variant Setup

Option 1 — Fuel Type

• Natural Gas
• Liquid Propane

Option 2 — Grill Configuration

• Standard
• Infrared Burner – Left Side
• Magic View Window
• Infrared Burner – Left Side + Magic View Window

This gives you 8 Shopify variants under one product.

Key Features

• Fire Magic Echelon Diamond A-Series portable grill
• Analog thermometer with polished stainless steel bezel
• Natural Gas and Liquid Propane options
• 48" x 22" primary cooking surface
• 1,056 sq. in. primary cooking area
• 48" x 8" warming rack
• 384 sq. in. warming area
• 112,000 BTU main burner system
• 22,000 BTU recessed infrared backburner
• Integrated 60,000 BTU power burner
• Heavy-duty 1/4"-thick cast 304 stainless steel burners
• Patented Diamond Sear cooking grids
• Flavor Grid heat-distribution system
• Optional factory-installed left-side infrared sear burner
• Optional Magic View Window
• Back-lit Comfort Touch control knobs
• Flame icons illuminate red when burners are operating
• Three internal halogen lights
• Hot-surface ignition system
• 110V electricity required for ignition
• Heavy-gauge stainless steel adjustable warming rack
• Ball-bearing drip tray
• Freestanding portable cart configuration

Specifications

Fire Magic's current manufacturer page confirms 1,056 sq. in. of primary cooking space, 384 sq. in. warming area, 112,000 BTUs from the main burners, 22,000 BTUs from the backburner, and 60,000 BTUs from the power burner.

Configuration Details

Standard — 9EA
The standard A-Series configuration uses Fire Magic's cast stainless steel main burners with the analog thermometer. Use E1060s-9EAN-51 for Natural Gas and E1060s-9EAP-51 for Propane.

Infrared Burner – Left Side — 9LA
Adds a factory-installed infrared sear burner in the left-hand main-burner position. Use E1060s-9LAN-51 for Natural Gas or E1060s-9LAP-51 for Propane.

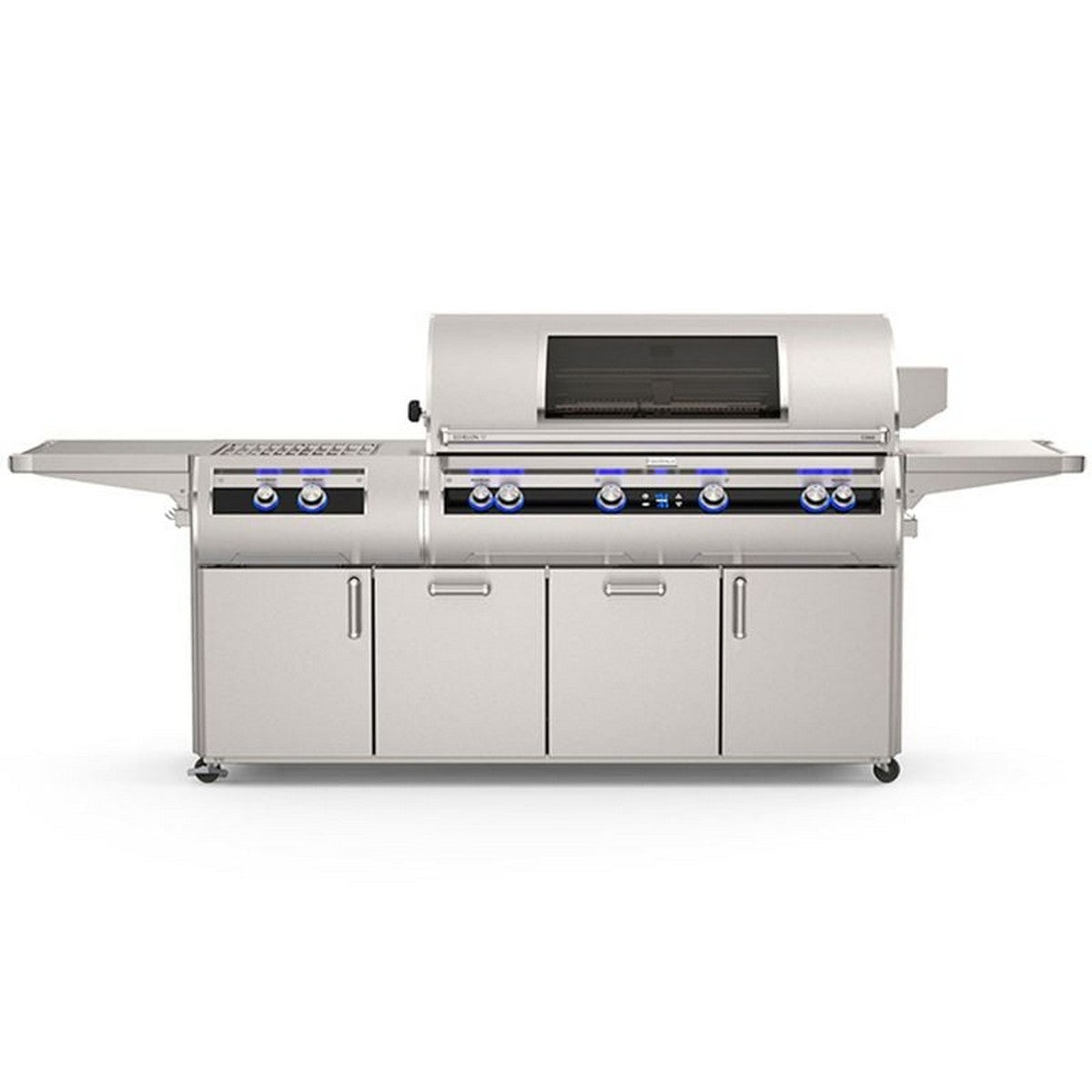

Magic View Window — 9EA-W
Retains the standard burner configuration while adding Fire Magic's Magic View Window, allowing food to be monitored without repeatedly opening the hood. Fire Magic confirms the window as an optional feature on Echelon grills.

Infrared Burner + Magic View Window — 9LA-W
Combines the left-side infrared sear burner with the Magic View Window, giving customers both dedicated high-temperature searing and hood-through viewing.

Complete SKU Matrix
