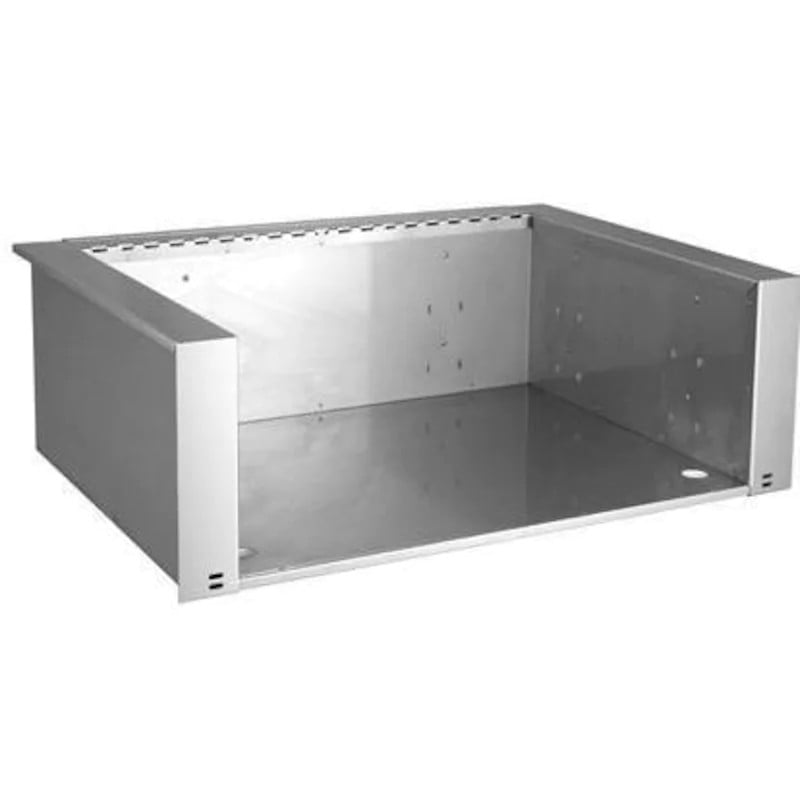

Fire Magic 3185-52 Stainless Steel Insulating Liner for Echelon E1060i Built-In Grills

Safely integrate a compatible Fire Magic Echelon grill into a combustible outdoor kitchen enclosure with the Fire Magic 3185-52 Insulating Liner. Specifically designed for Echelon E1060i built-in grills, this liner facilitates installation into wood, composite, and other combustible enclosures when paired with a non-combustible countertop.

Constructed from durable 304 stainless steel, the 3185-52 provides an added protective barrier between the grill and surrounding combustible construction. Fire Magic supplies the liner pre-assembled and incorporates hangers that support it from the countertop, simplifying installation and eliminating the need for additional support directly beneath the liner.

The liner also provides reduced clearance requirements and incorporates front and rear knockout provisions for routing gas and electrical connections. Fire Magic specifically pairs model 3185-52 with the E1060i/E1060 built-in grill platform.

For current installations, Fire Magic's latest specification guide lists a required liner opening of 54-1/2" W x 26" D x 12-1/4" H, with a 56-1/4" dimension across the front flange. Installation requirements should always be verified against the liner and grill manuals supplied with the products before constructing the island opening.

Key Features

• Fire Magic model 3185-52
• Designed for Echelon E1060i built-in grills
• Facilitates installation into combustible enclosures
• Intended for use with a non-combustible countertop
• Heavy-duty 304 stainless steel construction
• Pre-assembled for easier installation
• Integrated hanger system
• Supported from the countertop
• No additional support beneath the liner required
• Helps provide reduced installation clearance
• Front or rear knockouts accommodate utility connections
• Designed specifically for compatible Fire Magic grill installations

Specifications

Fire Magic's current Product Specifications Guide identifies 3185-52 specifically for E1060i grills and lists dimensions A/B/C/D as 54-1/2" x 26" x 12-1/4" x 56-1/4".

Important Dimension Note: Some retailer pages and older Fire Magic documentation list the cutout width as 54-7/8" rather than 54-1/2". For example, dealer specifications for the post-2020 3185-52 show 54-7/8" W x 26" D x 12-1/4" H, while Fire Magic's current specification guide lists 54-1/2" W. For countertop fabrication, use the installation instructions packaged with the exact liner being installed rather than relying solely on retailer dimensions.

Compatibility Note: The 3185-52 is the newer 52-series insulating liner. Older E1060 installations may use a different liner, such as the previous 3185-51, which has different cutout dimensions. Confirm the grill's model/year before ordering a replacement liner.
