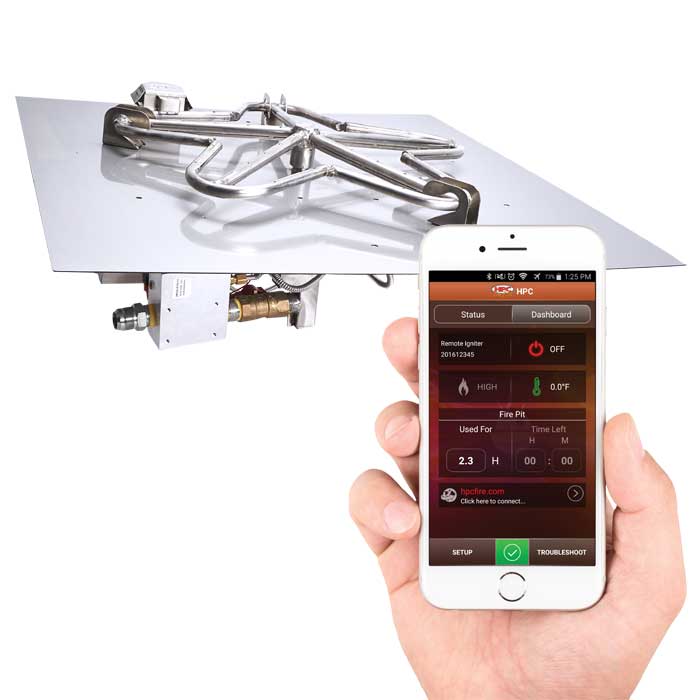

HPC - 18" Flat Square Fire Pit Insert - EI Series - HI/LO - Natural Gas Fuel
- Free shipping on all orders over $200. These fire pit inserts normally ship within 3 to 5 business days.
- In stock, ready to ship
You may add a wireless remote control for the 120 VAC version only (Note:HI-LO models already come with a remote control). It can be found here: WIRELESS REMOTE CONTROL.
The new "EI Series" are HPC's top of the line, heavy duty, stainless steel fire pits featuring remote control flame as well as auto-relight if flame loss. This is our most advanced High/Low Flame Control Model: Adjust high setting to low setting, 45% difference, includes High/Low Remote Control.
This model uses Natural Gas fuel.
How it works:
Start Up: This is done by use of a remote control . When the ON command is received, the system completes initial safety checks then starts flow of pilot gas. After 5 seconds the hot surface igniter glows igniting pilot flame. When the system confirms pilot flame present, the main burner gas will flow ignited by the pilot flame.
Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures/voltages and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing Start sequence.
Shut Down: To turn OFF the fire pit simply use wall switch or remote control.
Features
- 65K BTU, 24VAC or 120VAC Powered
- Includes 18" Flat Square 16 Gauge SS Pan, 12" Penta, SS Fire Ring; 16 Gauge SS Valve Control Box; Hot Wire Ignition
- NOTE: Input Flex Line, Vinyl Cover and Lava Rock are not included- sold separately.
- Fully Assembled- ready to install. Control components are protected within stainless steel valve box.
- Start via remote or whole house system; Auto re-light if flame is lost.
- Ignition is complete using a robust and reliable Hot Surface igniter.
- High/Low Flame Control Models: Adjust high setting to low setting- ~45% turndown (Remote Control and Smart Phone App included).
- 120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
- 24vac Option: Typically used pool side or with other lower voltage requirements.
- Natural Gas fuel.
- Internal temperature monitoring with overheat auto shutoff.
- CSA Certified in US & Canada to ANSI Z21.97-2014 / CSA 2.41-2014 requirements. (This new EI system already meets upcoming 2018 ANSI requirements)!
