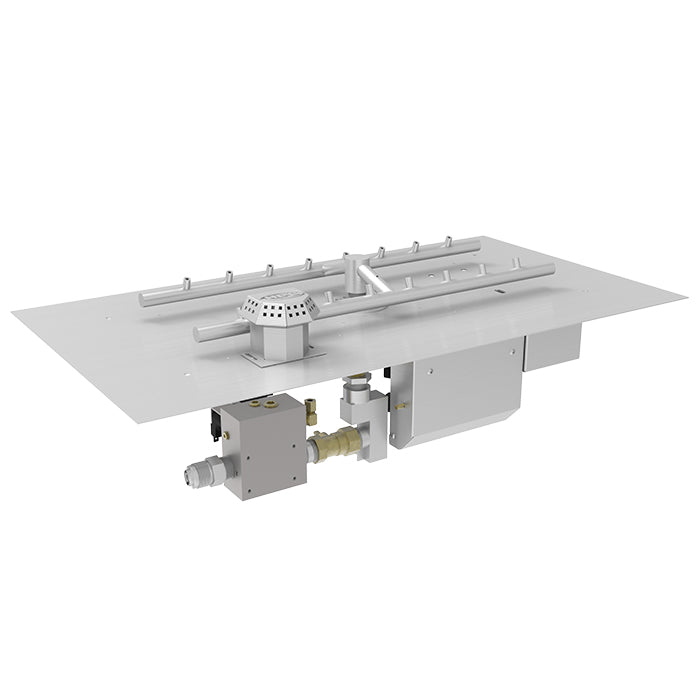

HPC 27" x 15" CSA Certified H-Flat Electronic Ignition Fire Pit Insert -ON/OFF- Natural Gas Fuel

The HPC Fire H-Flat Fire Pit Insert with Electronic On/Off Ignition is a professional-grade burner system designed for custom outdoor fire features. This series is available in multiple rectangular flat-pan sizes from 27" x 15" up to 93" x 19", with heat outputs ranging from 115,000 BTU to 400,000 BTU. The H-burner layout is designed to provide a balanced flame pattern across the pan, making it a strong fit for custom rectangular fire pit builds.

This model uses Natural Gas fuel.

Constructed from 18-gauge 304 stainless steel, the flat pan is built for outdoor durability and corrosion resistance. HPC notes that its flat pans are cut from 304 stainless steel sheet and sized slightly under nominal dimensions to help with installation fit.

This series features electronic On/Off ignition with flame sensing and electronic ignition operation. HPC’s EI On/Off EI Series is for outdoor use only and installation and service is recommended to be performed by a qualified installer, service agency, or gas supplier.

Available in two styles; 120 VAC and 24 VAC.

All electronic applications should use a GFCI-protected circuit.

Available Size / BTU Options

27" x 15" — 115,000 BTU
33" x 15" — 150,000 BTU
39" x 17" — 175,000 BTU
45" x 17" — 200,000 BTU
57" x 19" — 250,000 BTU
69" x 19" — 300,000 BTU
81" x 19" — 350,000 BTU
93" x 19" — 400,000 BTU

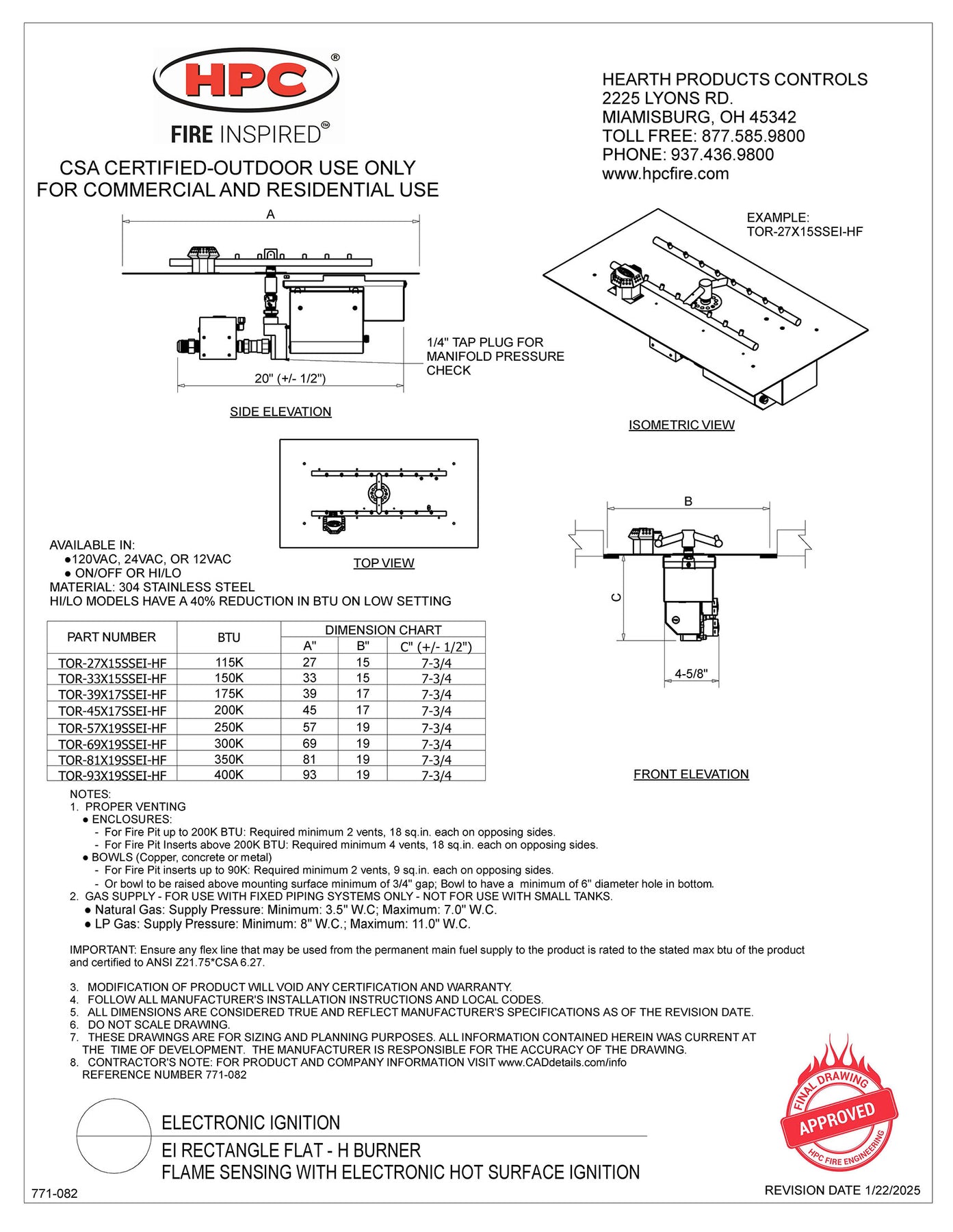

Key Specifications

Series: HPC Fire H-Flat Fire Pit Insert
Pan Size: 27" x 15" Flat Pan
Ignition Style: Electronic Ignition, On-Off Control
Fuel Type: Natural Gas
Burner Type: 18" x 6" Torpedo H-Burner
Material: 18ga 304 Stainless Steel Flat Pan
Overall Dimensions: Approx. 27" W x 15" D x 7.75" H
BTU Output: 115,000
Certification: CSA Certified, Outdoor Use Only
