Name: American Fire Products AWEIS High Capacity 780K BTU Electronic Ignition System
Brand: American Fire Glass
SKU: HCGNG-FS
Price: 2540.99 USD
Availability: InStock

American Fire Products AWEIS High Capacity 780K BTU Electronic Ignition System

$2,540.99

Shipping calculated at checkout.

Fuel Type

Natural Gas

Propane

Free shipping on orders over $400*

The American Fire Products All Weather Electronic Ignition System (AWEIS) High Capacity provides reliable electronic ignition and flame monitoring for high-output outdoor gas fire features. Rated up to 780,000 BTU/hr, this field-serviceable system operates on 24V AC and comes standard with an 18" field-serviceable pilot burner.

Available for Natural Gas or Liquid Propane.

Fuel Type Options

Natural Gas (NG)
Liquid Propane (LP)

Select the correct fuel type when ordering. NG and LP systems are fuel-specific.

Key Features

High Capacity AWEIS electronic ignition system
Rated up to 780,000 BTU/hr
Natural Gas and Liquid Propane options
18" field-serviceable pilot burner included
24V AC operation
Hot surface electronic ignition
Automatic flame sensing
Field-serviceable design

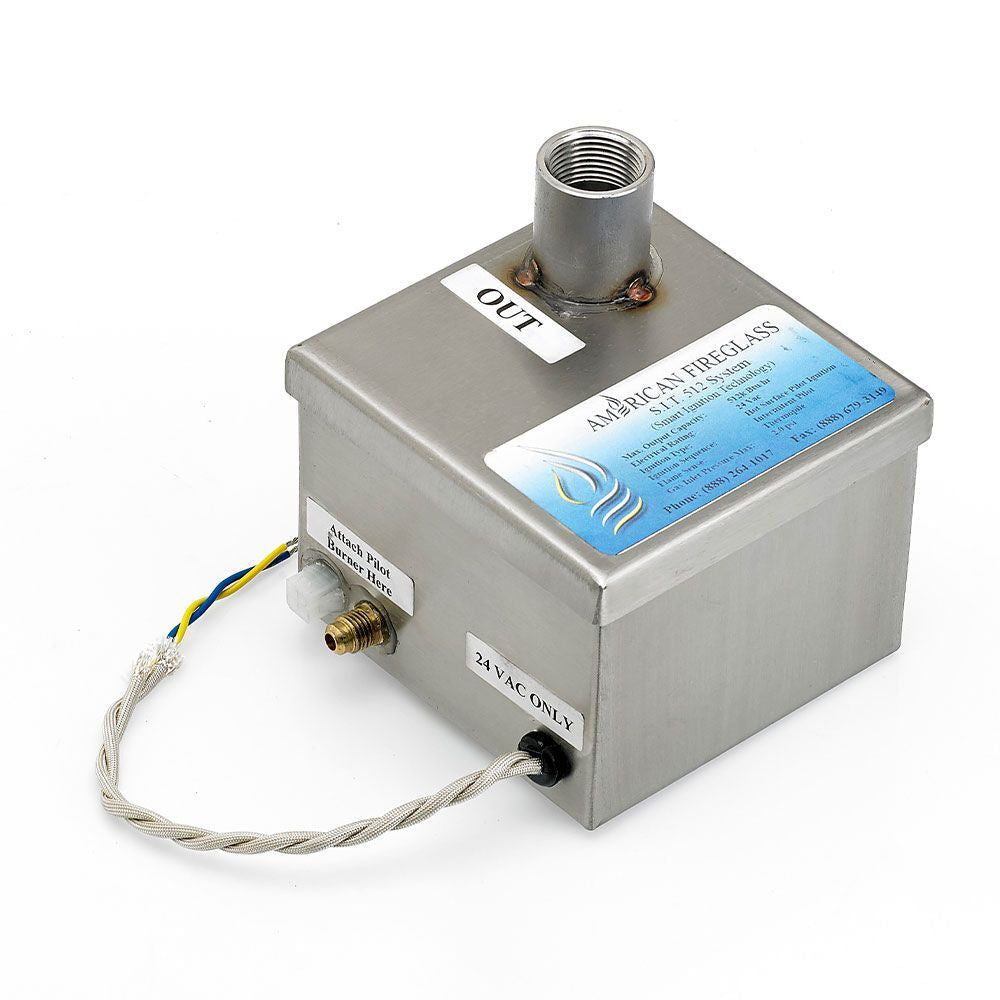

316 marine-grade stainless-steel control box
3/4" FIP gas inlet and outlet
2-pin Molex connection
Compatible with automation, remote control, wall switch, and timer controls
Additional pilot burner lengths available upon request
Made in the USA

Specifications

Brand: American Fire Products / Fire by Design
Series: AWEIS
Product Type: All Weather Electronic Ignition System
Capacity: High Capacity
Maximum Input: 780,000 BTU/hr
Fuel Options: Natural Gas or Liquid Propane
Ignition Type: Electronic / Hot Surface Ignition
Voltage: 24V AC
Standard Pilot Burner Length: 18"
Gas Inlet: 3/4" FIP
Gas Outlet: 3/4" FIP
Electrical Connection: 2-Pin Molex
Control Box: 316 Marine-Grade Stainless Steel
Application: Outdoor Gas Fire Features

Pilot Burner Options

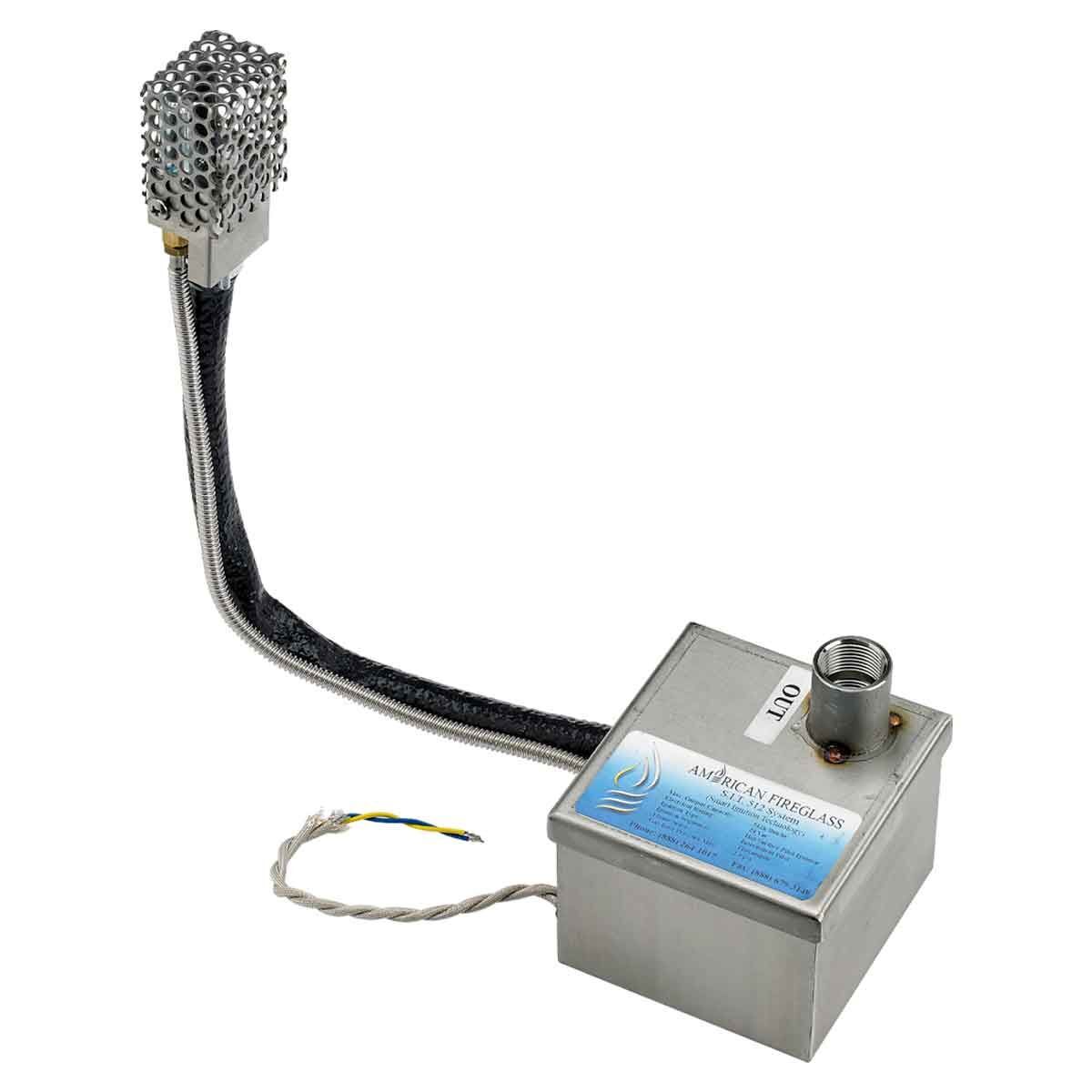

The standard system includes an 18" field-serviceable pilot burner.

Other pilot burner lengths are available upon request:

Extensions are also available for installations requiring additional pilot length.

Control Options

The AWEIS can be integrated with compatible:

Smartphone / Home Automation Systems
Remote Controls
Wall Switches
Timers

Compatible controls are sold separately.

What's Included

High Capacity Field Serviceable AWEIS
18" Field Serviceable Pilot Burner Assembly

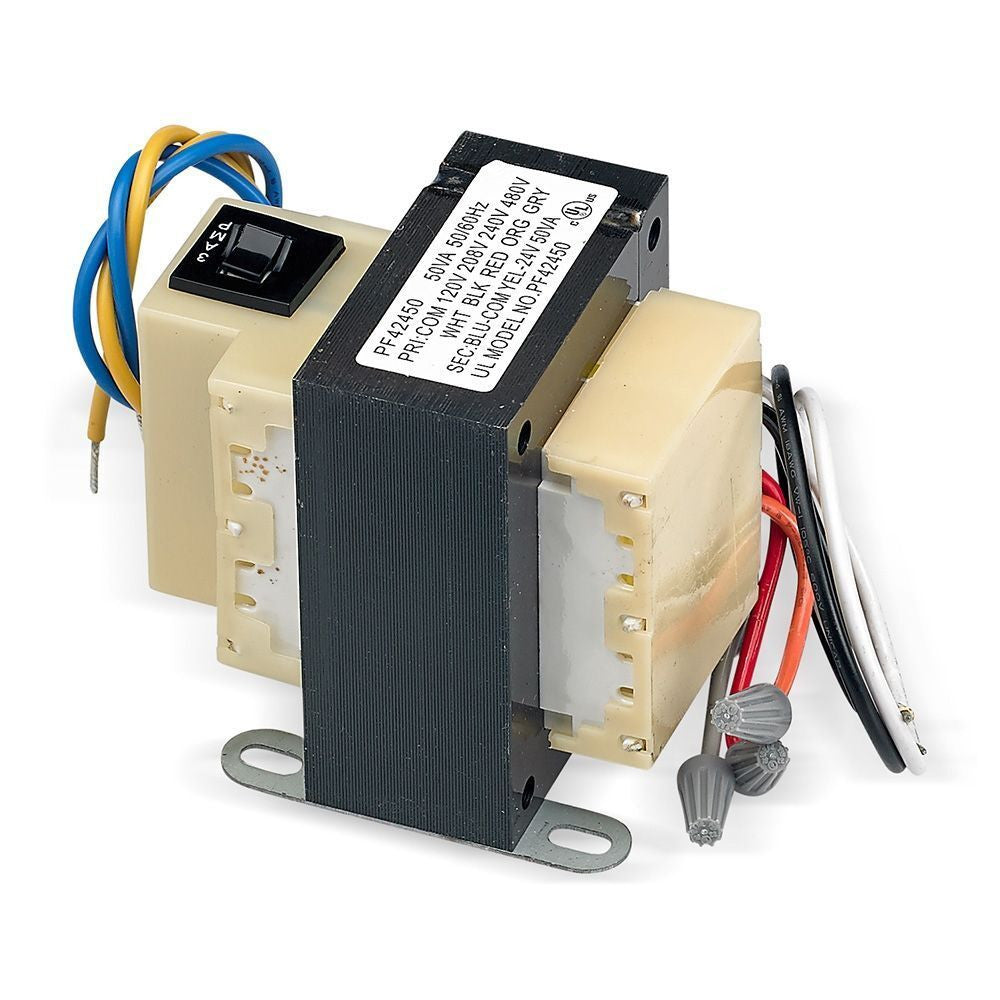

24V AC Transformer
Ignition Control Module
Heat Deflector Shield
Installation Instructions
