Perlick G5 Luxe 24" Dual-Zone Wine Reserve with Solid Door – Panel Ready

The Perlick G5 Luxe 24" Dual-Zone Wine Reserve provides premium undercounter wine storage with two independently controlled temperature zones for red and white wines. Featuring a 4.7 cu. ft. capacity, RAPIDcool™ technology, and customizable interior lighting, this wine refrigerator combines precise temperature control with a sleek built-in design.

Designed for indoor and outdoor use, it features commercial-grade stainless steel construction, full-extension wine shelving, and a panel-ready solid door for integration with surrounding cabinetry.

PANEL READY – FINISHED SOLID DOOR PANEL SOLD SEPARATELY.

Key Features & Benefits

• Dual-Zone Wine Storage: Two independently controlled compartments allow red and white wines to be stored at different temperatures.

• RAPIDcool™ Technology: Provides fast, consistent cooling throughout the cabinet.

• Quick-Cool Mode: Delivers up to 20% faster cooling when needed.

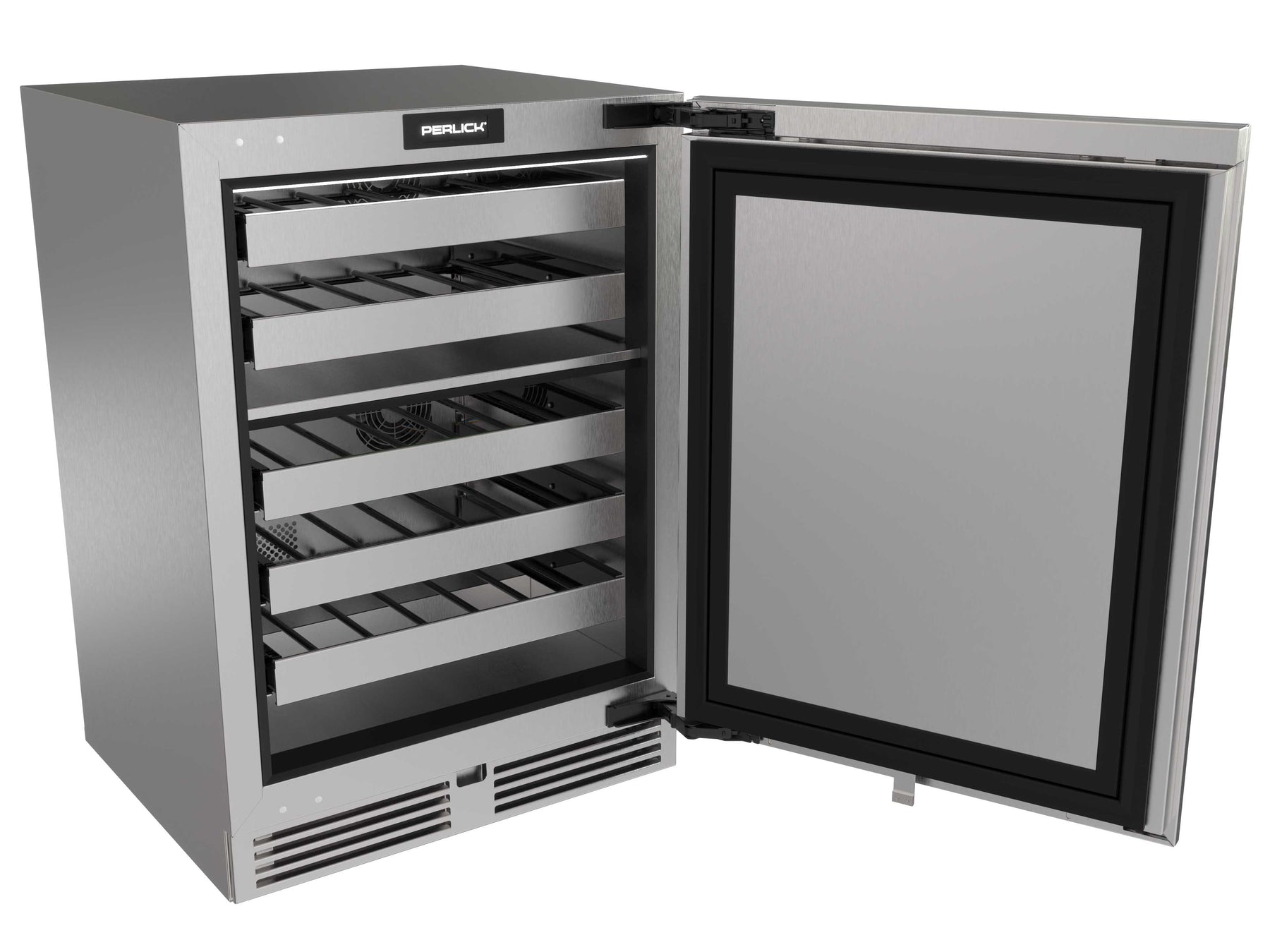

• Full-Extension Wine Shelves: Vinyl-coated steel shelves with stainless steel fronts provide convenient bottle access.

• Customizable Shelf Fronts: Shelving accommodates custom wood or other decorative fronts.

• Smart-Defrost & Smart-Monitoring: Automatically adjusts cooling performance and monitors system operation.

• Touchscreen Controls: Conveniently manage temperature, lighting, and diagnostic settings.

• Total Color Control™ LED Lighting: Offers 20 dimming settings, including four white light temperatures.

• 300-Series Stainless Steel Construction: Durable stainless steel interior and exterior.

• Quiet Operation: Variable-speed refrigeration technology reduces operating noise.

• Soft-Close Door: Concealed hinges provide a clean, integrated appearance.

• Indoor & Outdoor Rated: Suitable for residential indoor and outdoor installations.

Specifications

• Brand: Perlick

• Collection: G5 Luxe

• Model Number: G5WD24SL

• Manufacturer Item Number: URS24D21-5-SRF0

• Product Type: Undercounter Dual-Zone Wine Reserve

• Overall Dimensions: 23 7/8" W × 22 1/2" D × 34 5/16" H

• Required Opening: 24" W × 24" D × 34 1/2" H

• Capacity: 4.7 cu. ft.

• Cooling System: Dual Zone

• Upper Zone Temperature: 40°F–68°F

• Upper Zone Factory Setting: 55°F

• Lower Zone Temperature: 40°F–68°F

• Lower Zone Factory Setting: 45°F

• Door Type: Solid Door, Panel Ready

• Door Hinge: Field Reversible

• Shelving: Vinyl-Coated Steel with Stainless Steel Fronts

• Interior Material: Stainless Steel

• Exterior Material: 300-Series Stainless Steel

• Equipment Weight: 196 lbs

• Shipping Weight: 236 lbs

• Voltage: 115V

• Frequency: 60 Hz

• Amperage: 1.9A

• Power Connection: 6' Cord with NEMA 5-15P Plug

• Refrigerant: R600a

• Ventilation: Front-Vented

• Lighting: Total Color Control™ LED

• Installation: Indoor & Outdoor

• Certifications: UL C US, Star-K Sabbath Mode

Dual-Zone Wine Storage

The G5 Luxe Dual-Zone Wine Reserve features two independently controlled temperature zones, allowing different wine varieties to be stored at their preferred temperatures.

Upper Wine Zone

• Temperature Range: 40°F–68°F

• Factory Setting: 55°F

• Suitable for red wine storage and serving preferences.

Lower Wine Zone

• Temperature Range: 40°F–68°F

• Factory Setting: 45°F

• Suitable for white wines and wines served at cooler temperatures.

Both zones can be adjusted independently within their supported temperature ranges.

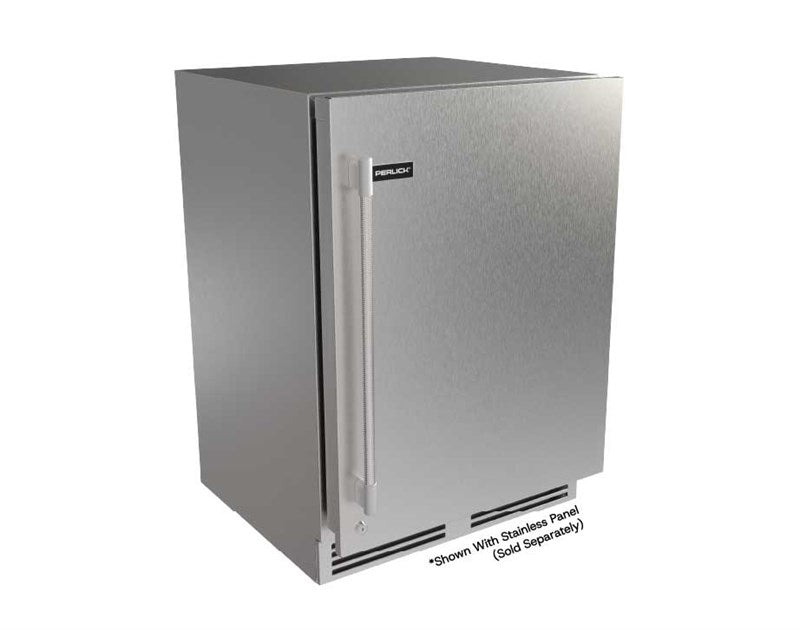

Solid Door Panel Options

The wine reserve features a panel-ready solid door designed for compatible decorative panels.

Available finishing choices include:

• Custom cabinetry or millwork panel

• Compatible Perlick stainless steel solid door panel

• Locking or non-locking configurations, where compatible

Important: The finished solid door panel is sold separately. Confirm hinge orientation, locking requirements, and panel compatibility before ordering.

What's Included

• Perlick G5 Luxe 24" Dual-Zone Wine Reserve Refrigeration Unit

• Panel-Ready Solid Door Assembly

• Wine Storage Shelving

• Integrated Touchscreen Controls

• Total Color Control™ LED Lighting

Finished decorative solid door panel sold separately.

Warranty

• 6-Year Parts & Labor Warranty

• 30-Day Initial Aesthetics Parts & Labor Warranty

Warranty coverage is subject to Perlick's terms and conditions.
