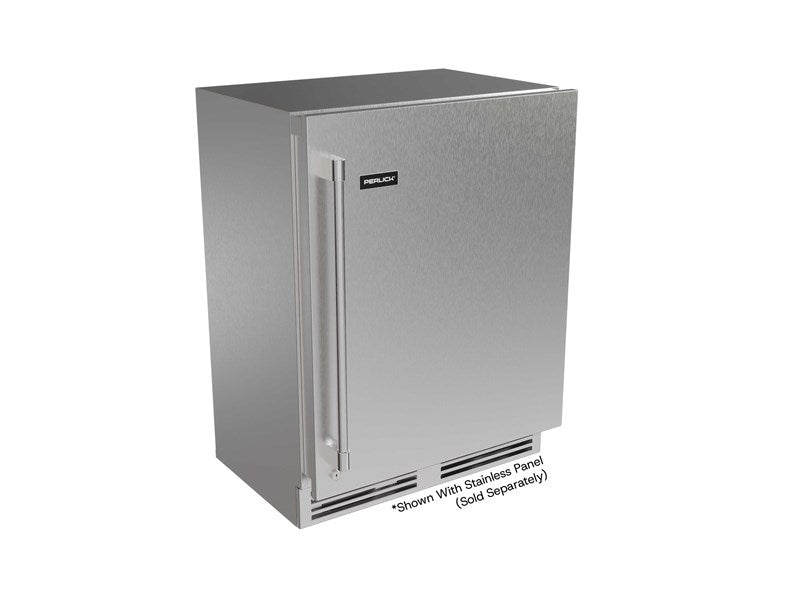

Perlick G5 Shallow ADA 24" Wine Reserve – Solid Door, Panel Ready

PANEL READY – CUSTOM PANELS SOLD SEPARATELY

Important: This wine reserve features a panel-ready solid door designed to accommodate compatible custom cabinetry panels or optional Perlick stainless steel panels. Custom panels and stainless steel panels are sold separately and are not included with the wine reserve. Confirm panel compatibility and installation requirements before ordering.

The Perlick G5 Shallow ADA 24" Wine Reserve with Solid Door delivers premium wine storage in a compact, ADA-compliant undercounter design. Featuring Perlick's exclusive RAPIDcool™ technology, a 3.1 cu. ft. stainless steel interior, and specialized wine shelving, it maintains consistent storage temperatures while providing a seamless built-in appearance.

Designed for indoor and outdoor installations, this wine reserve combines shallow-depth construction, touchscreen temperature controls, customizable LED lighting, and ultra-quiet operation ideal for accessible kitchens, home wine bars, and outdoor entertainment spaces.

Key Features & Benefits

• ADA-Compliant Design: Features an ADA-compliant height and shallow-depth cabinet for accessible undercounter installations.

• RAPIDcool™ Technology: Delivers fast, even cooling throughout the cabinet.

• Wine Preservation Temperature Range: Adjustable from 40°F to 68°F for flexible wine storage.

• Panel-Ready Solid Door: Accommodates compatible custom cabinetry panels or optional Perlick stainless steel panels.

• 3.1 cu. ft. Capacity: Provides dedicated wine storage in a space-saving undercounter design.

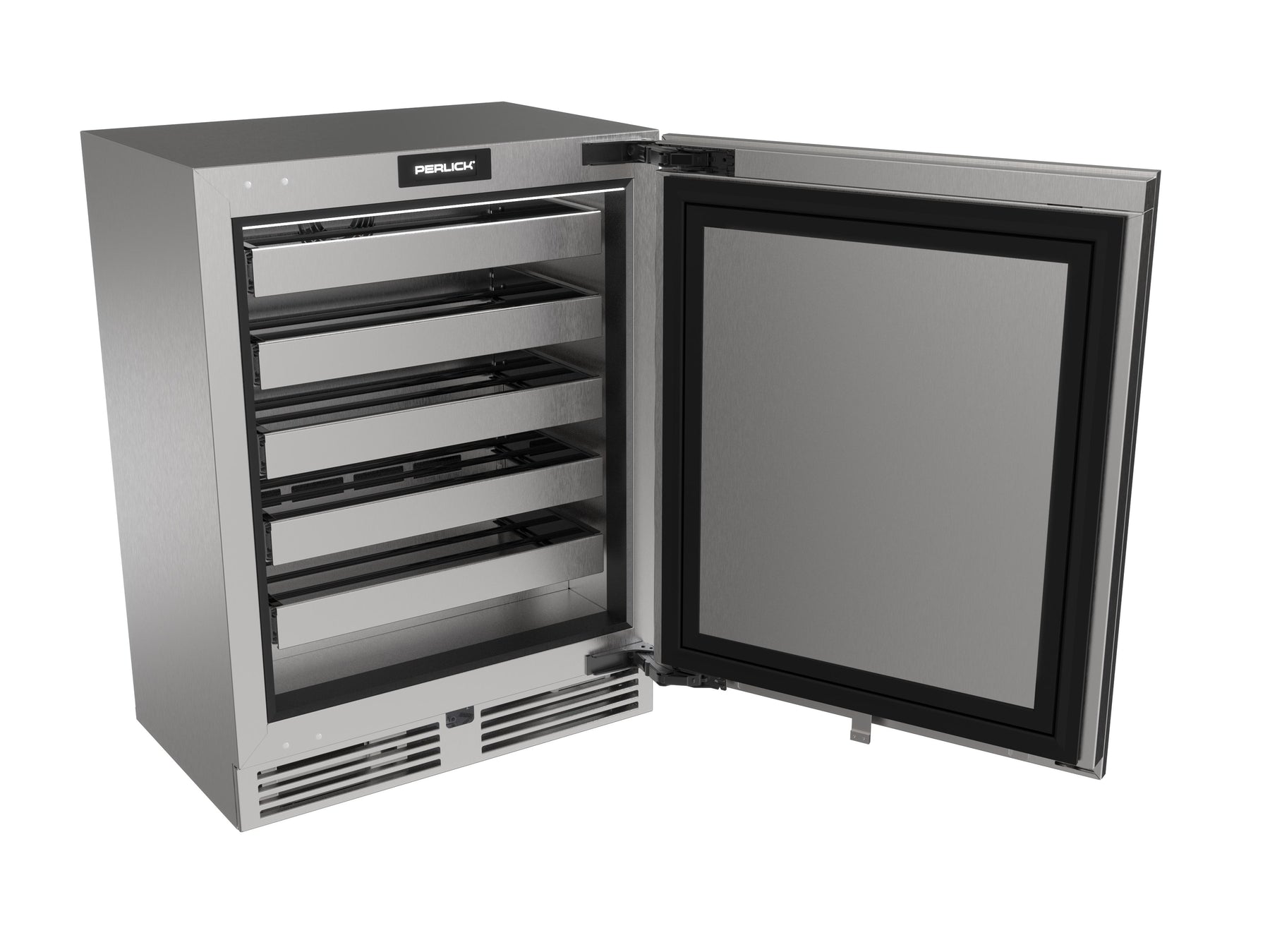

• Specialized Wine Shelving: Vinyl-coated steel wine shelves with stainless steel fronts provide convenient bottle storage.

• Full-Extension Shelves: Allow easy access to stored wine bottles.

• Customizable Shelf Fronts: Shelves accommodate compatible custom wood or decorative fronts to coordinate with cabinetry.

• 300-Series Stainless Steel Construction: Durable interior and exterior provide corrosion resistance and long-lasting performance.

• Smart-Defrost & Smart-Monitoring: Intelligent systems adapt to usage and environmental conditions while monitoring refrigeration performance.

• Quick-Cool Mode: Provides faster on-demand cooling when needed.

• Touchscreen Controls: Convenient access to temperature settings, lighting adjustments, and built-in diagnostics.

• Total Color Control™ LED Lighting: Offers 20 interior dimming settings, including four white light temperatures.

• Ultra-Quiet Operation: Variable-speed cooling technology minimizes operating noise.

• Soft-Closing Hinges: Fully concealed hinges provide smooth operation and a clean, integrated appearance.

• Front-Access Leveling Legs: Simplify installation and leveling adjustments.

• Indoor & Outdoor Rated: Designed for residential kitchens, home bars, and outdoor entertaining areas.

Specifications

• Brand: Perlick

• Series: G5 Shallow ADA

• Model: G5WR24SD

• Manufacturer Item #: URD24W21-5-SRW0

• Product Type: Undercounter Wine Reserve

• Width Class: 24"

• Installation: Built-In / Undercounter

• Cabinet Design: Shallow Depth

• ADA Compliant: Yes

• Door Style: Solid Door, Panel Ready

• Number of Doors: 1

• Door Options: Left Hinge / Right Hinge / Locking

• Temperature Zones: Single Zone

• Interior Capacity: 3.1 cu. ft.

• Temperature Range: 40°F–68°F (4.4°C–20°C)

• Factory Set Temperature: 55°F (12.8°C)

• Interior Material: Stainless Steel

• Exterior Material: 300-Series Stainless Steel

• Shelving: Full-Extension Vinyl-Coated Steel Wine Shelves with Stainless Steel Fronts

• Cooling Technology: RAPIDcool™

• Lighting: Total Color Control™ LED

• Voltage: 115V

• Frequency: 60 Hz

• Amperage: 1.8A

• Refrigerant: R600a

• Energy Star Rated: Yes

• Sabbath Mode: Yes

• Certification: UL C US

• Application: Indoor & Outdoor

• Approved for Commercial Use: No

Wine Storage & Temperature Control

The G5 Shallow ADA Wine Reserve offers an adjustable temperature range of 40°F to 68°F, with a factory setting of 55°F, providing flexible storage conditions for various wine collections.

Its specialized shelving supports:

• Red wine bottles

• White wine bottles

• Rosé wines

• Sparkling wines, subject to bottle dimensions

• Everyday and collectible wine selections

The open-shelf design promotes even airflow around stored bottles, helping maintain consistent temperatures throughout the cabinet.

Note: This wine reserve features a single temperature zone. All stored bottles share the same temperature setting.

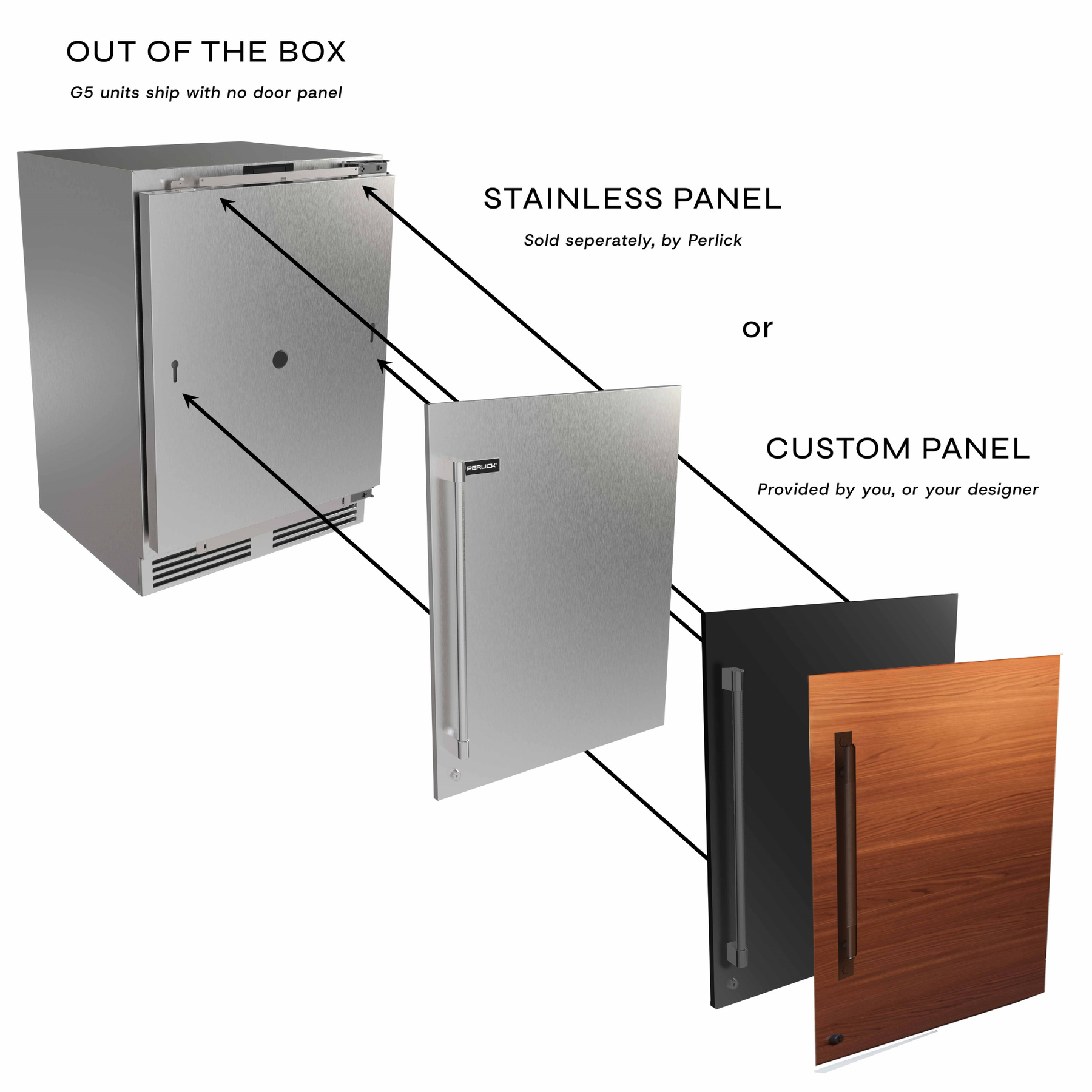

Door & Panel Options

The G5 Shallow ADA features a panel-ready solid door designed for customized integration into surrounding cabinetry.

Available configurations include:

• Custom Cabinetry Panels

• Optional Perlick Stainless Steel Panel

• Left- or Right-Hinge Configurations

• Optional Locking Configuration

Note: Custom cabinetry panels and optional stainless steel panels are sold separately. Confirm panel dimensions, hinge orientation, locking hardware, and installation requirements before ordering.

ADA-Compliant & Shallow-Depth Design

The G5 Shallow ADA Wine Reserve combines a reduced cabinet depth with an ADA-compliant height, making it suitable for accessible kitchens and installations with limited space.

Its compact construction provides dedicated wine storage without requiring the depth of a standard undercounter wine reserve.

Important: Verify cabinet opening dimensions, installation clearances, and applicable accessibility requirements before installation.

Indoor & Outdoor Use

Engineered for indoor and outdoor residential installations, the G5 Shallow ADA features corrosion-resistant stainless steel construction, intelligent temperature management, and Perlick's Anti-Condensation System™.

Ideal for kitchens, home wine bars, outdoor kitchens, covered patios, and entertainment spaces.

What's Included

• Perlick G5 Shallow ADA 24" Wine Reserve

• Panel-Ready Solid Door

• Full-Extension Wine Storage Shelving

• Integrated Refrigeration System

• Touchscreen Temperature Controls

• Interior LED Lighting

Not Included: Custom cabinetry panels and optional stainless steel door panels.

Warranty

• 6-Year Parts & Labor Warranty

• 30-Day Initial Aesthetic Parts & Labor Coverage

Warranty coverage is subject to Perlick's manufacturer terms and conditions.
