Perlick G5 Shallow ADA 24" Beverage Center – Glass Door, Panel Ready

PANEL READY – CUSTOM PANELS SOLD SEPARATELY

Important: This beverage center features a panel-ready glass door designed to accommodate compatible custom glass-door overlays or optional Perlick stainless steel glass-door panels. Custom panels and stainless steel panels are sold separately and are not included with the beverage center. Confirm panel compatibility, dimensions, and installation requirements before ordering.

The Perlick G5 Shallow ADA 24" Beverage Center with Glass Door combines premium beverage refrigeration with an ADA-compliant, shallow-depth design. Featuring Perlick's exclusive RAPIDcool™ technology, a 3.1 cu. ft. stainless steel interior, and UV-resistant triple-pane glass, it delivers fast, consistent cooling while elegantly displaying your wine and beverage collection.

Designed for indoor and outdoor installations, this beverage center offers versatile wine and beverage storage, touchscreen controls, customizable LED lighting, and ultra-quiet operation ideal for accessible kitchens, home bars, and outdoor entertaining spaces.

Key Features & Benefits

• ADA-Compliant Design: Features an ADA-compliant height and shallow-depth cabinet for accessible undercounter installations.

• RAPIDcool™ Technology: Quickly and evenly chills beverages throughout the cabinet.

• Quick-Cool Mode: Provides faster on-demand cooling, chilling beverages up to 20% faster than standard cool-down times.

• Triple-Pane Glass Door: Low-E, argon-filled, UV-resistant thermal glass helps reduce heat transfer while displaying stored beverages.

• Panel-Ready Glass Door: Accommodates compatible custom glass-door overlays or optional Perlick stainless steel glass-door panels.

• 3.1 cu. ft. Capacity: Provides convenient wine and beverage storage in a compact undercounter design.

• Dedicated Wine & Beverage Storage: Upper section accommodates horizontally stored wine bottles, while lower shelving provides space for cans and bottles.

• 300-Series Stainless Steel Construction: Durable interior and exterior offer commercial-grade strength and corrosion resistance.

• Smart-Defrost & Smart-Monitoring: Intelligent systems adapt to usage and environmental conditions while monitoring refrigeration performance.

• Touchscreen Controls: Provide easy access to temperature settings, lighting customization, and diagnostics.

• Total Color Control™ LED Lighting: Offers 20 interior dimming settings, including four white light temperatures.

• Ultra-Quiet Operation: Variable-speed cooling technology minimizes operating noise.

• Soft-Closing Hinges: Fully concealed hinges provide smooth operation and a clean, integrated appearance.

• Front-Access Leveling Legs: Simplify installation and leveling adjustments.

• Anti-Condensation System™: Helps prevent condensation from forming on the cabinet.

• Indoor & Outdoor Rated: Designed for dependable performance in residential indoor and outdoor spaces.

Specifications

• Brand: Perlick

• Series: G5 Shallow ADA

• Model: G5BC24GD

• Manufacturer Item #: URD24R41-5-SRB0

• Product Type: Undercounter Beverage Center

• Width Class: 24"

• Installation: Built-In / Undercounter

• Cabinet Design: Shallow Depth

• ADA Compliant: Yes

• Door Style: Glass Door, Panel Ready

• Number of Doors: 1

• Door Options: Left Hinge / Right Hinge / Locking

• Temperature Zones: Single Zone

• Interior Capacity: 3.1 cu. ft.

• Temperature Range: 33°F–48°F (0.6°C–8.9°C)

• Factory Set Temperature: 38°F (3.3°C)

• Interior Material: Stainless Steel

• Exterior Material: 300-Series Stainless Steel

• Shelving: Upper Wine Storage with Full-Extension Beverage Shelving Below

• Cooling Technology: RAPIDcool™

• Glass Type: Low-E, Argon-Filled Triple-Pane Thermal Glass

• Lighting: Total Color Control™ LED

• Voltage: 115V

• Frequency: 60 Hz

• Amperage: 1.8A

• Refrigerant: R600a

• Energy Star Rated: Yes

• Sabbath Mode: Yes

• Certification: UL C US

• Application: Indoor & Outdoor

• Approved for Commercial Use: No

Wine & Beverage Storage

The G5 Shallow ADA Beverage Center offers an adjustable temperature range of 33°F to 48°F, with a factory setting of 38°F.

Its versatile interior provides:

• Upper Storage: Horizontal wine bottle storage.

• Lower Storage: Full-extension shelving for beverage bottles and cans.

Ideal for storing wine, beer, soda, sparkling water, mixers, and other refreshments.

Note: This beverage center features a single temperature zone. The upper and lower storage areas do not have independent temperature controls.

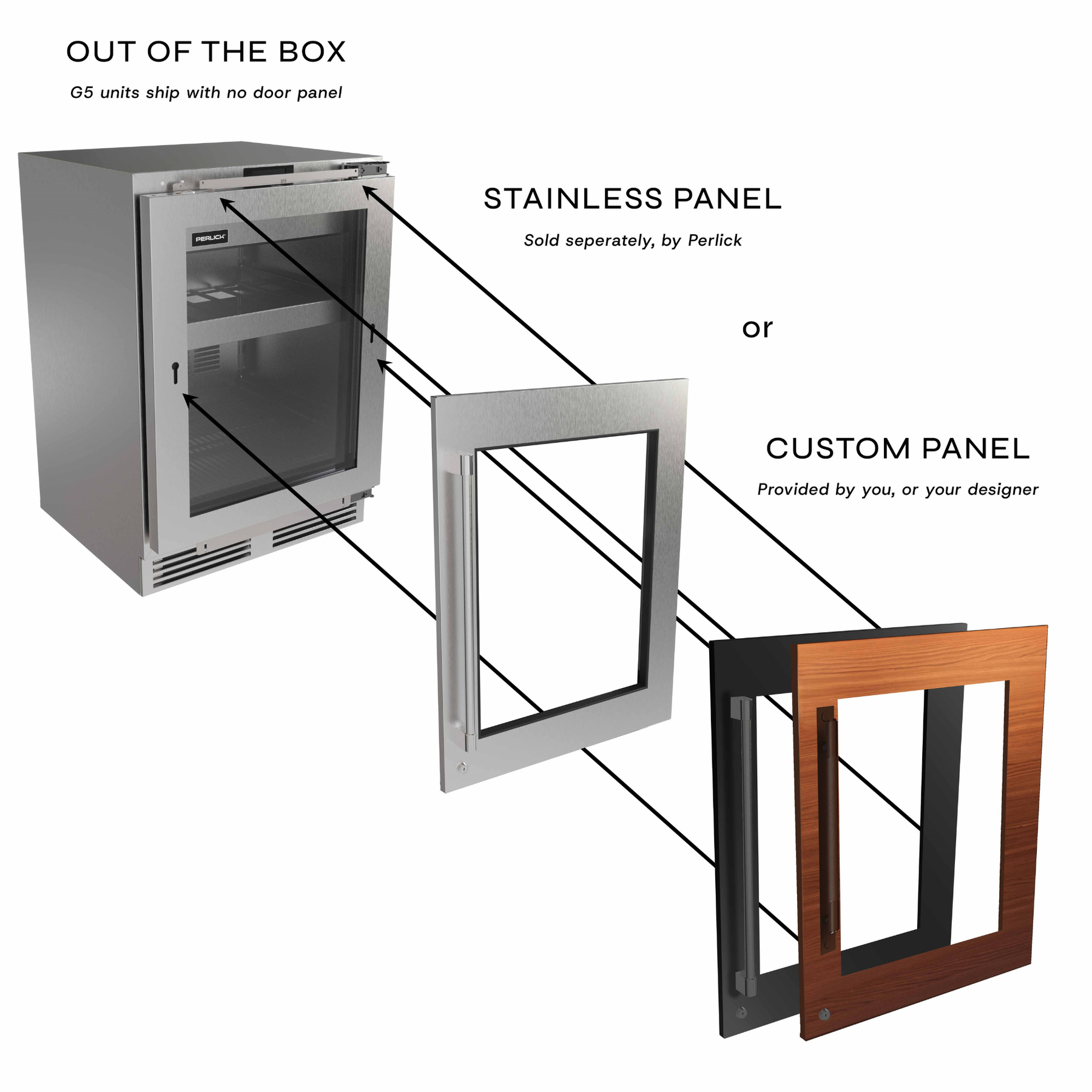

Glass Door & Panel Options

The G5 Shallow ADA features a panel-ready glass door designed for customized integration into surrounding cabinetry.

Available configurations include:

• Custom Glass-Door Overlay Panels

• Optional Perlick Stainless Steel Glass-Door Panels

• Left- or Right-Hinge Configurations

• Optional Locking Configuration

Note: Custom panels and optional stainless steel panels are sold separately. Confirm panel dimensions, hinge orientation, locking hardware, and installation requirements before ordering.

ADA-Compliant & Shallow-Depth Design

The G5 Shallow ADA Beverage Center combines a reduced cabinet depth with an ADA-compliant height, making it suitable for accessible kitchens and installations with limited space.

Its compact construction provides dedicated wine and beverage storage without requiring the depth of a standard undercounter beverage center.

Important: Verify cabinet opening dimensions, ventilation clearances, and applicable accessibility requirements before installation.

Indoor & Outdoor Use

Engineered for indoor and outdoor residential installations, the G5 Shallow ADA features corrosion-resistant stainless steel construction, UV-resistant thermal glass, intelligent temperature management, and Perlick's Anti-Condensation System™.

Ideal for kitchens, home bars, outdoor kitchens, covered patios, and entertainment spaces.

What's Included

• Perlick G5 Shallow ADA 24" Beverage Center

• Panel-Ready Glass Door

• Wine and Beverage Storage Shelving

• Integrated Refrigeration System

• Touchscreen Temperature Controls

• Interior LED Lighting

Not Included: Custom glass-door overlay panels and optional stainless steel door panels.

Warranty

• 6-Year Parts & Labor Warranty

• 30-Day Initial Aesthetic Parts & Labor Coverage

Warranty coverage is subject to Perlick's manufacturer terms and conditions.
