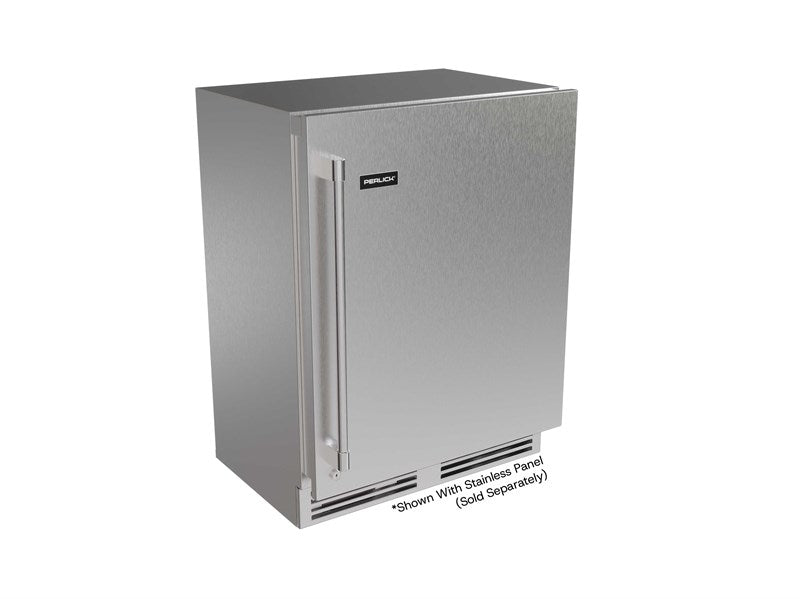

Perlick G5 Shallow ADA 24" Beverage Center – Solid Door, Panel Ready

PANEL READY – CUSTOM PANELS SOLD SEPARATELY

Important: This beverage center features a panel-ready solid door designed to accommodate compatible custom cabinetry panels or optional Perlick stainless steel panels. Custom panels and stainless steel panels are sold separately and are not included with the beverage center. Verify panel compatibility and installation requirements before ordering.

The Perlick G5 Shallow ADA 24" Beverage Center with Solid Door combines premium beverage refrigeration with a space-saving, ADA-compliant design. Featuring Perlick's exclusive RAPIDcool™ technology, a 3.1 cu. ft. stainless steel interior, and dedicated wine and beverage storage, it delivers fast, consistent cooling in a compact undercounter configuration.

Designed for indoor and outdoor use, this beverage center features touchscreen controls, customizable LED lighting, and ultra-quiet operation ideal for accessible kitchens, home bars, and outdoor entertainment spaces.

Key Features & Benefits

• ADA-Compliant Design: Shallow-depth cabinet with ADA-compliant height for accessible undercounter installations.

• RAPIDcool™ Technology: Quickly and evenly chills beverages throughout the cabinet.

• Quick-Cool Mode: Chills beverages up to 20% faster than standard cool-down times.

• Panel-Ready Solid Door: Accommodates compatible custom cabinetry panels or optional Perlick stainless steel panels.

• 3.1 cu. ft. Capacity: Provides convenient wine and beverage storage in a compact design.

• Dedicated Wine & Beverage Storage: Upper section accommodates horizontally stored wine bottles, while lower stainless steel shelving holds bottles and cans.

• 300-Series Stainless Steel Construction: Durable interior and exterior provide commercial-grade strength and corrosion resistance.

• Smart-Defrost & Smart-Monitoring: Intelligent systems adapt to usage and environmental conditions while monitoring refrigeration performance.

• Touchscreen Controls: Convenient access to temperature settings, lighting customization, and diagnostics.

• Total Color Control™ LED Lighting: Offers 20 interior dimming settings, including four white light temperatures.

• Ultra-Quiet Operation: Variable-speed cooling technology minimizes operating noise.

• Soft-Closing Hinges: Fully concealed hinges provide smooth operation and a seamless built-in appearance.

• Front-Access Leveling Legs: Simplify installation and leveling adjustments.

• Anti-Condensation System™: Helps prevent condensation from forming on the cabinet.

• Indoor & Outdoor Rated: Designed for dependable refrigeration in residential indoor and outdoor spaces.

Specifications

• Brand: Perlick

• Series: G5 Shallow ADA

• Model: G5BC24SD

• Manufacturer Item #: URD24R21-5-SRB0

• Product Type: Undercounter Beverage Center

• Width Class: 24"

• Installation: Built-In / Undercounter

• Cabinet Design: Shallow Depth

• ADA Compliant: Yes

• Door Style: Solid Door, Panel Ready

• Door Options: Left Hinge / Right Hinge / Locking

• Temperature Zones: Single Zone

• Interior Capacity: 3.1 cu. ft.

• Temperature Range: 33°F–48°F (0.6°C–8.9°C)

• Factory Set Temperature: 38°F (3.3°C)

• Interior Material: Stainless Steel

• Exterior Material: 300-Series Stainless Steel

• Shelving: Upper Wine Storage with Full-Extension Stainless Steel Shelving Below

• Cooling Technology: RAPIDcool™

• Lighting: Total Color Control™ LED

• Voltage: 115V

• Frequency: 60 Hz

• Amperage: 1.8A

• Refrigerant: R600a

• Energy Star Rated: Yes

• Sabbath Mode: Yes

• Certification: UL C US

• Application: Indoor & Outdoor

• Approved for Commercial Use: No

Wine & Beverage Storage

The G5 Shallow ADA Beverage Center offers an adjustable temperature range of 33°F to 48°F, with a factory setting of 38°F.

Its versatile interior provides:

• Upper Storage: Horizontal wine bottle storage.

• Lower Storage: Full-extension stainless steel shelving for beverage bottles and cans.

Ideal for storing wine, beer, soda, sparkling water, mixers, and other refreshments.

Note: This beverage center features a single temperature zone. The upper and lower storage areas do not have independent temperature controls.

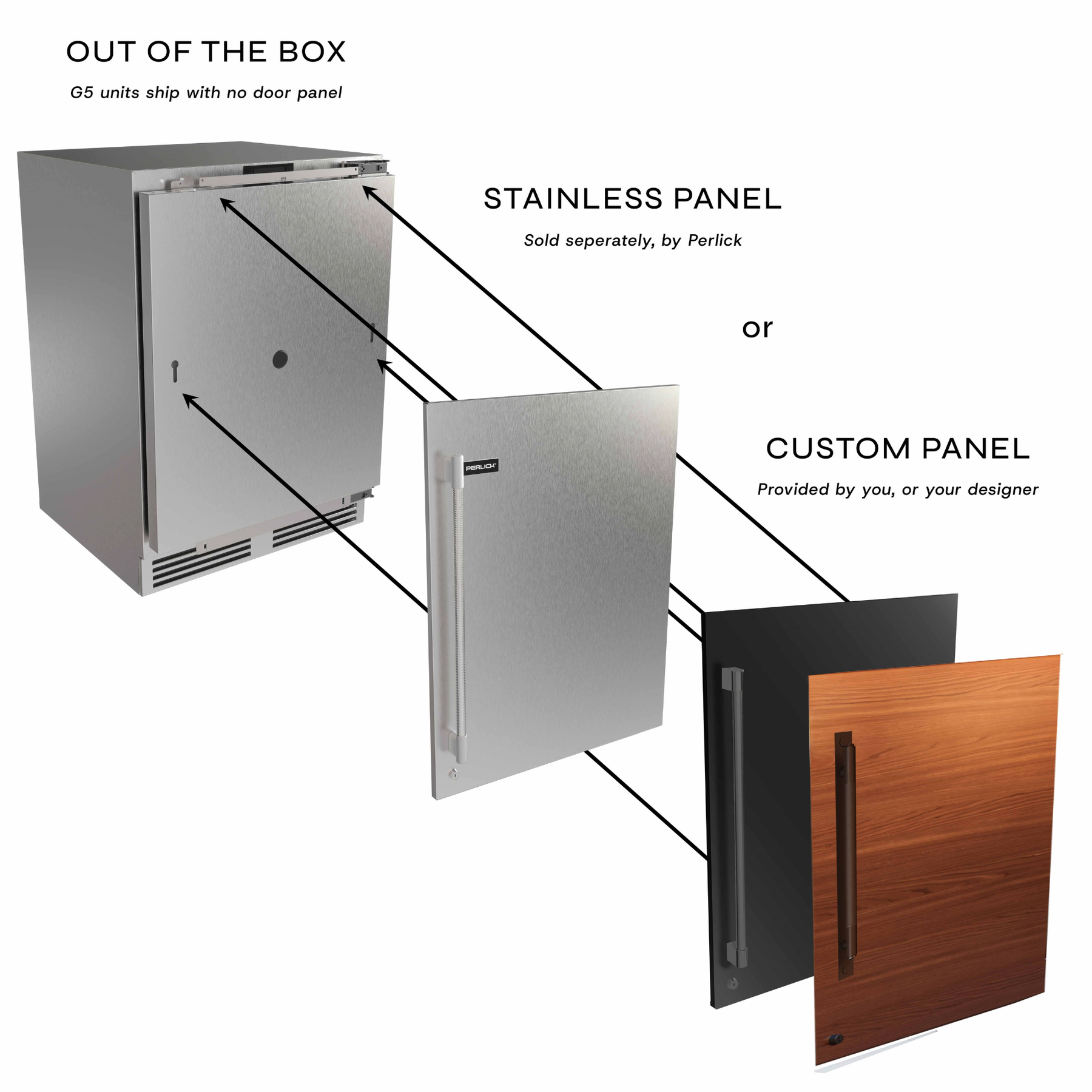

Door & Panel Options

The G5 Shallow ADA features a panel-ready solid door designed for customized integration into surrounding cabinetry.

Available configurations include:

• Custom Cabinetry Panel

• Optional Perlick Stainless Steel Panel

• Left- or Right-Hinge Configuration

• Optional Locking Configuration

Note: Custom cabinetry panels and optional stainless steel panels are sold separately. Confirm panel dimensions, hinge orientation, and hardware compatibility before ordering.

ADA-Compliant & Shallow-Depth Design

The G5 Shallow ADA Beverage Center combines reduced cabinet depth with ADA-compliant height, making it suitable for accessible kitchens and installations with limited space.

Its compact construction provides dedicated wine and beverage storage without requiring the depth of a standard undercounter beverage center.

Important: Verify cabinet opening dimensions, installation clearances, and applicable accessibility requirements before installation.

Indoor & Outdoor Use

Engineered for indoor and outdoor residential installations, the G5 Shallow ADA features corrosion-resistant stainless steel construction, intelligent temperature management, and Perlick's Anti-Condensation System™.

Ideal for kitchens, home bars, outdoor kitchens, covered patios, and entertainment spaces.

What's Included

• Perlick G5 Shallow ADA 24" Beverage Center

• Panel-Ready Solid Door

• Wine and Beverage Storage Shelving

• Integrated Refrigeration System

• Touchscreen Temperature Controls

• Interior LED Lighting

Not Included: Custom cabinetry panels and optional stainless steel door panels.

Warranty

• 6-Year Parts & Labor Warranty

• 30-Day Initial Aesthetic Parts & Labor Coverage

Warranty coverage is subject to Perlick's manufacturer terms and conditions.
