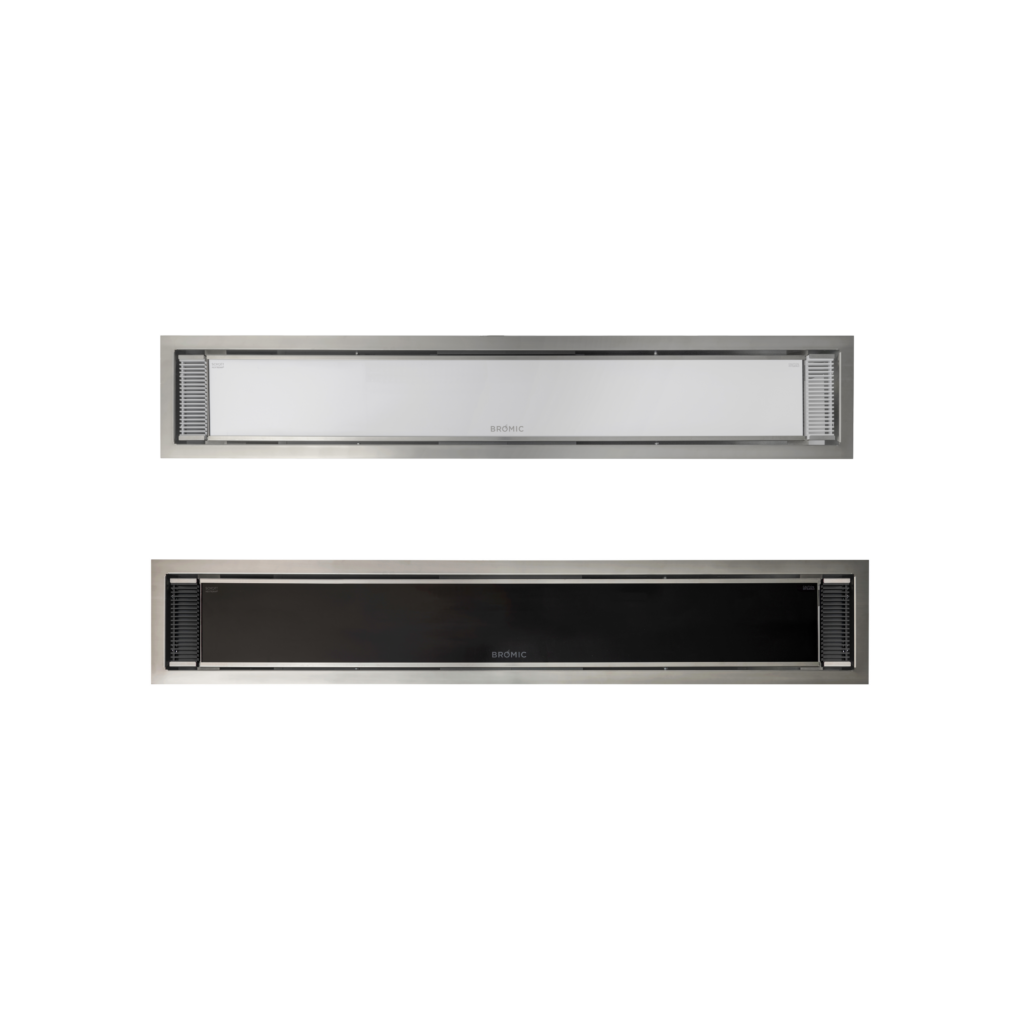

Bromic Platinum Electric Low-Clearance Recess Kit
- Free shipping on most orders over $400*
- In stock, ready to ship
- Backordered, shipping soon

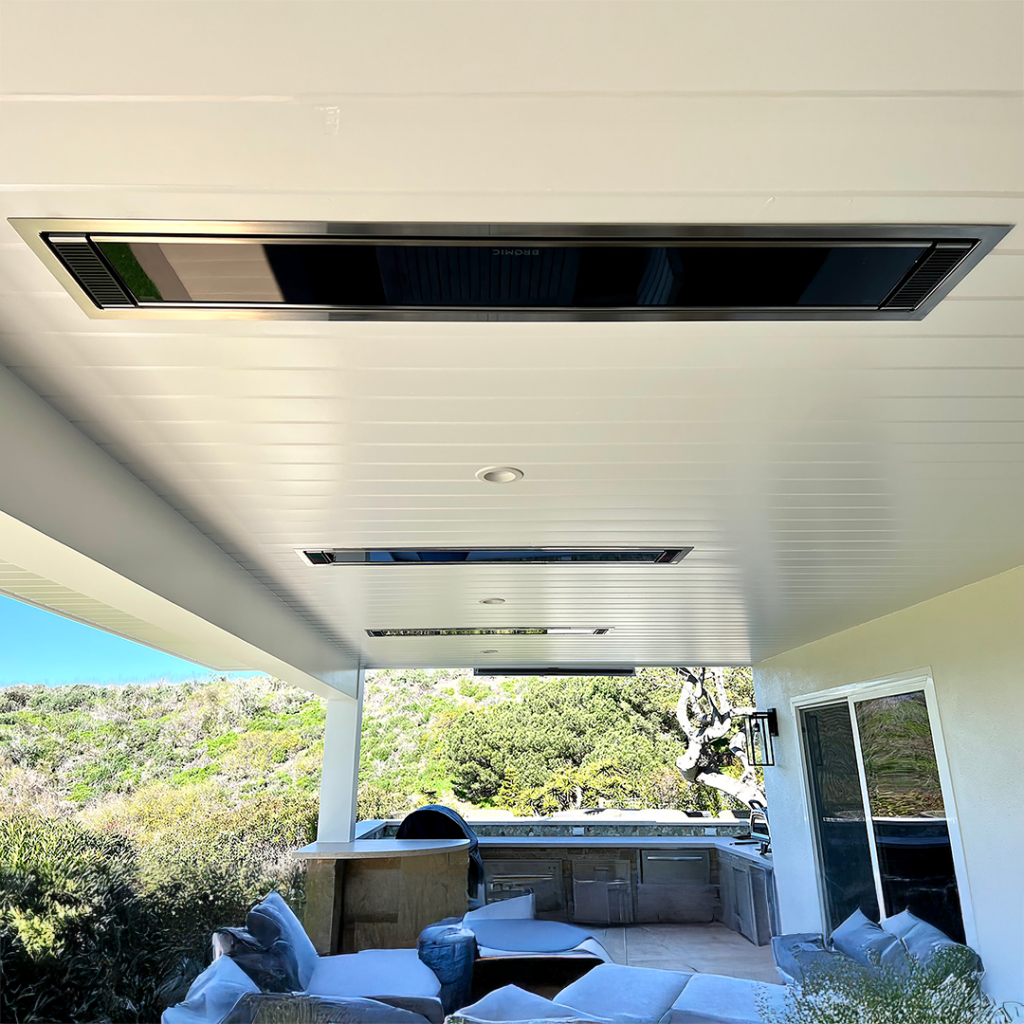

Create a sleek, flush-mounted outdoor heating installation with the Bromic Platinum Electric Low-Clearance Recess Kit.
Designed specifically for Bromic Platinum Smart-Heat® Electric heaters, this premium recess kit allows the heater to integrate discreetly into a suitable ceiling or roof cavity for a clean, minimalist appearance.
Unlike the standard recess kit, the Low-Clearance Recess Kit includes a ready-to-install ceiling recess box designed to fit within standard ceiling joists. Bromic states that it can reduce required cavity installation clearance to as little as 7.1 inches, making it an excellent option for both new construction and retrofit projects where ceiling space is limited.
An integrated cooling fan helps manage temperatures inside the recessed installation. The cooling fan requires its own dedicated power supply, independent of the electrical connection powering the heater.
Available in dedicated 2300W, 3400W, and 4500W configurations, the correct recess kit should be selected to match the wattage of your Platinum Smart-Heat Electric heater.
Key Features
- Low-Clearance Design – Allows recessed installation in roof cavities as small as 7.1".
- Flush-Mount Installation – Creates a clean, integrated architectural appearance.
- Designed for Platinum Electric – Purpose-built for Bromic Platinum Smart-Heat Electric heaters.
- Three Power Sizes – Available for 2300W, 3400W, and 4500W heaters.
- Integrated Cooling Fan – Helps control temperatures within the recessed installation.
- Dedicated Fan Power – Cooling fan uses a power supply independent of the heater.
- Fits Standard Ceiling Joists – Designed to simplify new-build and retrofit installations.
- UL Certified – Engineered for compliant recessed installations.
- Complete Installation Kit – Includes components and hardware required for recessed mounting.
- Genuine Bromic Accessory – Designed specifically for the Platinum heating collection.
Specifications
| Specification | Details |
|---|---|
| Brand | Bromic Heating |
| Collection | Platinum Smart-Heat® |
| Product Type | Low-Clearance Recess Kit |
| Compatible Heater | Platinum Smart-Heat Electric |
| Power Options | 2300W / 3400W / 4500W |
| Installation | Recessed / Flush Mount |
| Minimum Cavity Clearance | As low as 7.1" |
| Cooling Fan | Integrated |
| Fan Power Supply | Dedicated / Independent of Heater |
| Certification | UL Certified |
Compatibility
Designed for the corresponding wattage of the:
Bromic Platinum Smart-Heat® Electric
Important Installation Information
The integrated cooling fan requires a dedicated electrical supply separate from the heater's electrical connection.
Always refer to Bromic's current Low-Clearance Ceiling Recess installation instructions for cavity dimensions, wiring specifications, clearances, and installation requirements.
What's Included

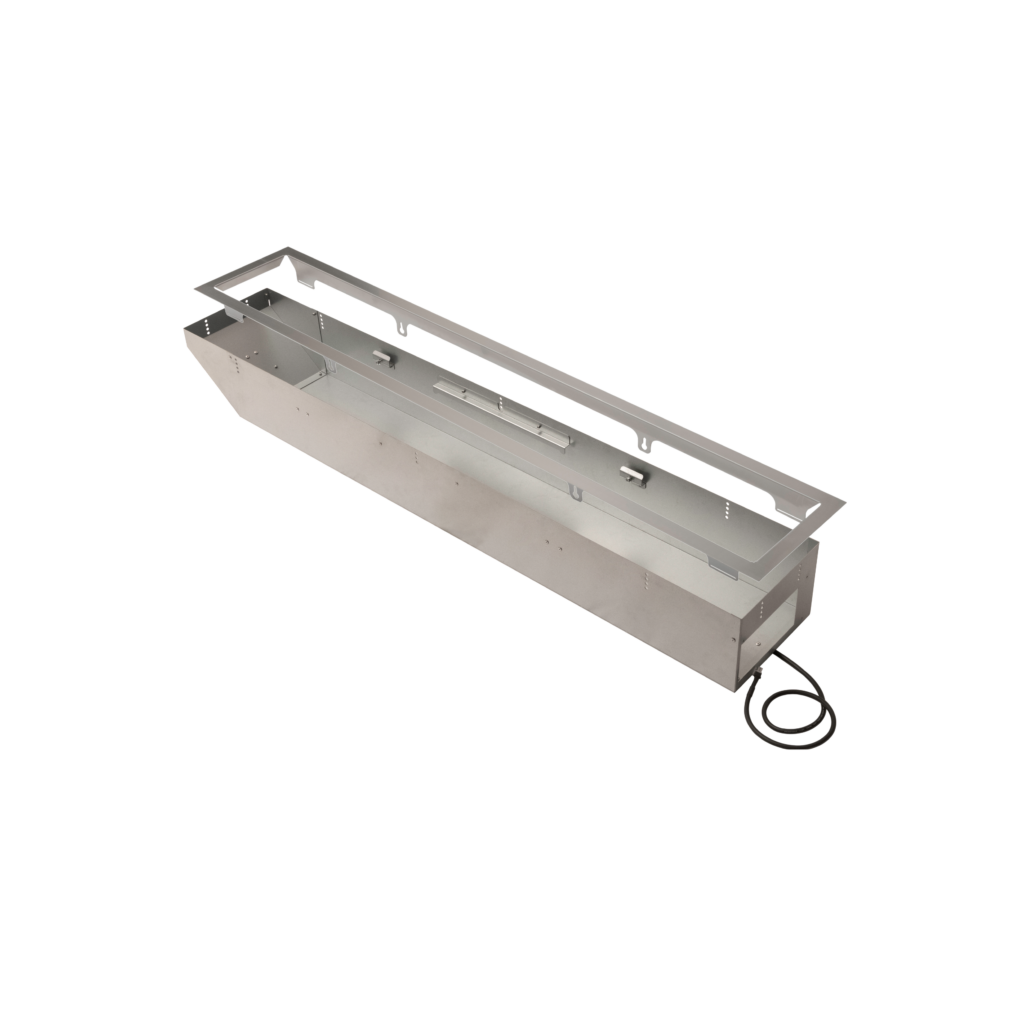

- Low-Clearance Ceiling Recess Box
- Recess mounting components
- Integrated cooling fan
- Required installation hardware
Heater and controller sold separately.
